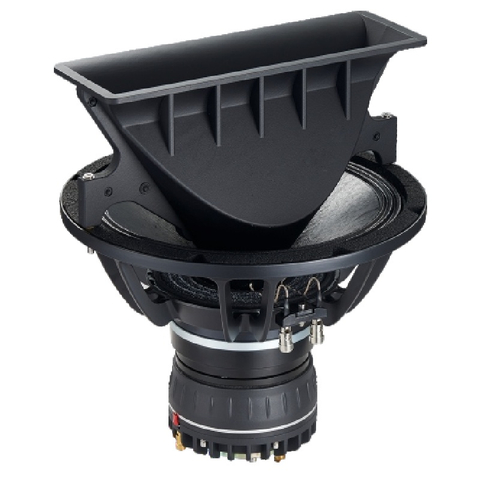

  • G12C75M90H44
    ⌀ 12 inch     NEO
    Nom. Impedance: 8Ω(LF)  8Ω(HF)
    Voice Coil ⌀: 75mm(LF)   90mm(MD)   44mm(HF)
    Continuous Program: 1000W(LF)  300W(MD)  80W(HF)
    Sensitivity: 95dB(LF)  104dB(MD)  105dB(HF)

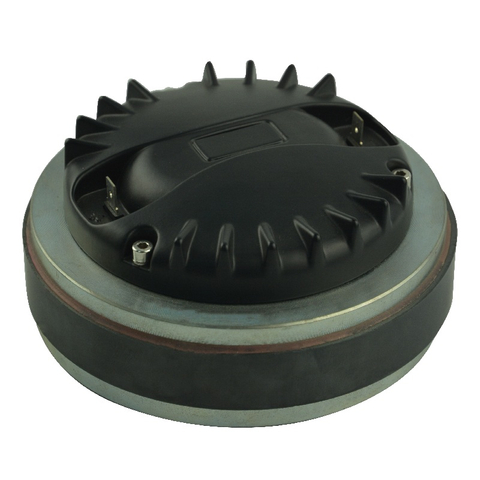

  • GT6350EC
    Voice Coil ⌀:   2.5 inch  /  63.5mm
    Throat ⌀:  1.4 in  /  35.56mm
    Magnet Material:  Strontium Ferrite
    Nom. Impedance: 8 Ω
    Power Capacity: 70W
    Mounting Type: Screw 1-3/8” or bolt-on

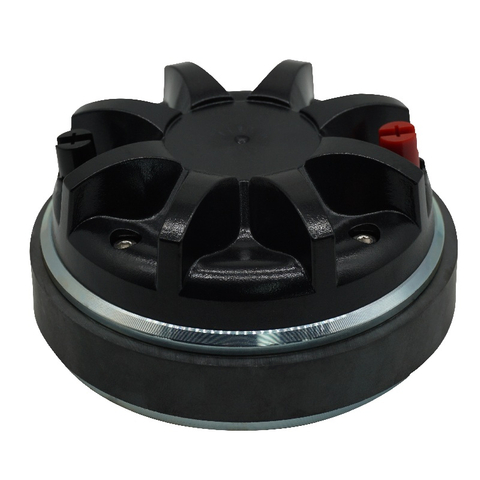

  • GT4442A
    Voice Coil ⌀:  1.75 inch  /  44.4mm
    Throat ⌀:   1 inch  /  25mm
    Magnet Material:  Strontium Ferrite
    Nom. Impedance:  8Ω
    Power Capacity: 60W
    Mounting Type: Bolt-on
  • GT4440NA
    Voice Coil ⌀:  1.75inch  /  44.4mm
    Throat ⌀:  1 inch  /  25mm
    Magnet Material:  Neodymium Ring
    Nom. Impedance:  8 Ω
    Power Capacity:  50W
    Mounting Type:  Bolt-on
  • GT2540AS
    Voice Coil ⌀:  1.0inch  /  25.4mm
    Throat ⌀:  1.0inch  /  25.4mm
    Magnet Material:   Strontium Ferrite
    Nom. Impedance:  8 Ω
    Power Capacity:  20W
    Mounting Type:  Screw on 1-3/8"

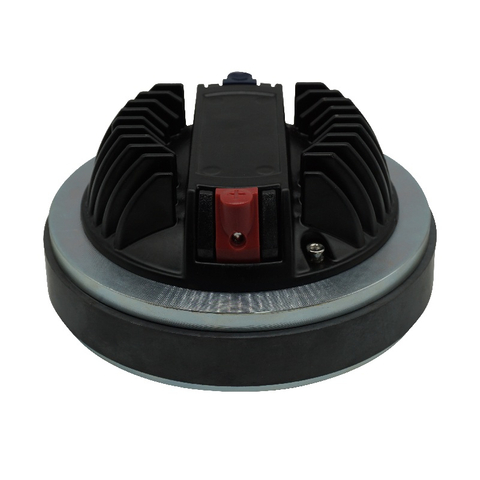

  • GT6301A
    Voice Coil ⌀:  2.5 inch  /  63mm
    Throat ⌀:   1 inch  /  25.4mm
    Magnet Material:  Strontium Ferrite
    Nom. Impedance:  8Ω
    Power Capacity: 60W
    Mounting Type: Bolt-on

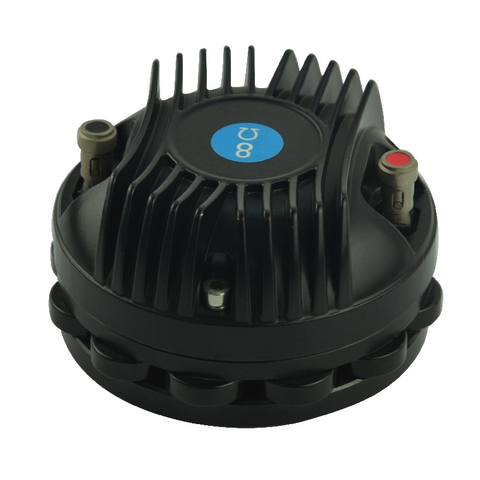

  • GT4440NC
    Voice Coil ⌀:  1.75inch  /  44.4mm
    Throat ⌀:  1 inch  /  25mm
    Magnet Material:  Neodymium Ring
    Nom. Impedance:  8 Ω
    Power Capacity:  50W
    Mounting Type:  Bolt-on
  • GT7500NC
    Voice Coil ⌀:  3.0inch  /  75mm
    Throat ⌀:  1.4inch  /  36mm
    Magnet Material:  Neodymium Ring
    Nom. Impedance:  8 Ω
    Power Capacity:  90W
    Mounting Type:  Bolt-on

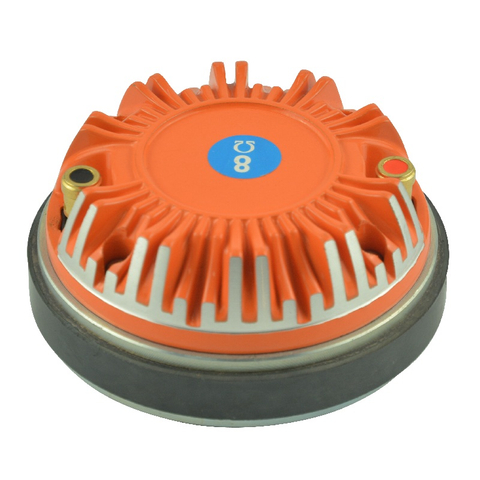

  • GT3441EC
    Voice Coil ⌀:  1.35inch / 34.4mm
    Throat ⌀:  1.0inch  /  25.4mm
    Magnet Material:    Ferrite Y-35
    Nom. Impedance:  8 Ω
    Power Capacity:  40W
    Mounting Type:  Screw 1-3/8” /  Bolt-on

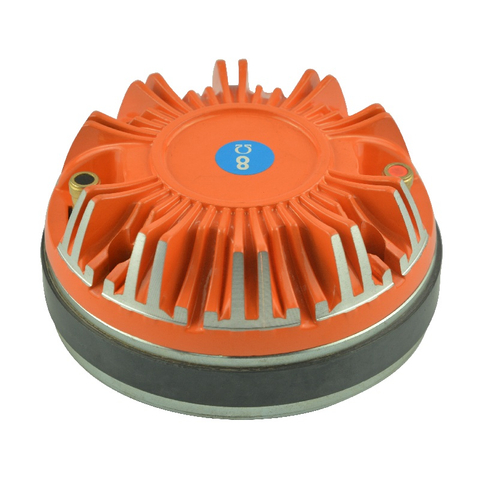

  • GT4441EC
    Voice Coil ⌀:  1.75inch  /  44.4mm
    Throat ⌀:  1.0inch  /  25.4mm
    Magnet Material:   Ferrite Y-35
    Nom. Impedance:  8 Ω
    Power Capacity:  50W
    Mounting Type:  Screw 1-3/8” / Bolt-on

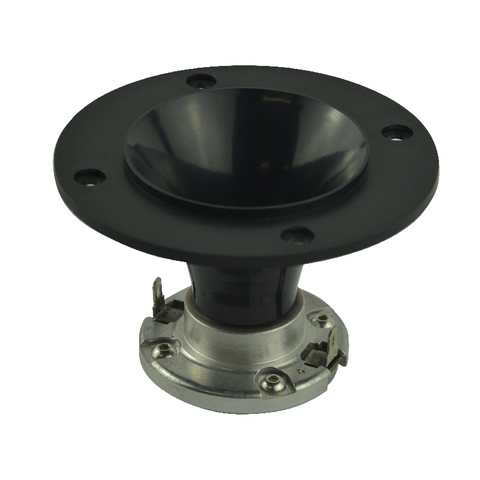

  • GT2540NS
    Voice Coil ⌀:  1inch  /  25 mm
    Throat ⌀:    1inch / 25 mm
    Magnet Material:   Neodymium N-38H
    Nom. Impedance:  4Ω
    Power Capacity: 25W
  • GT3850EC
    Voice Coil ⌀:  1.5 inch  /  38mm
    Throat ⌀:    1inch / 25.4 mm
    Magnet Material:   Strontium Ferrite
    Nom. Impedance:  4Ω or 8Ω
    Power Capacity: 30W
    Mounting Type:   Bolt-on

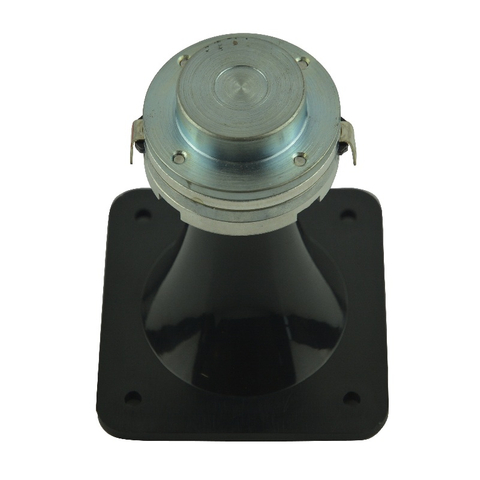

  • GT3851NS
    Voice Coil ⌀:  0.98 inch  /  24.9mm
    Throat ⌀:    1inch / 25.4 mm
    Magnet Material:   Neodymium N-38H
    Nom. Impedance:  4Ω
    Power Capacity: 25W

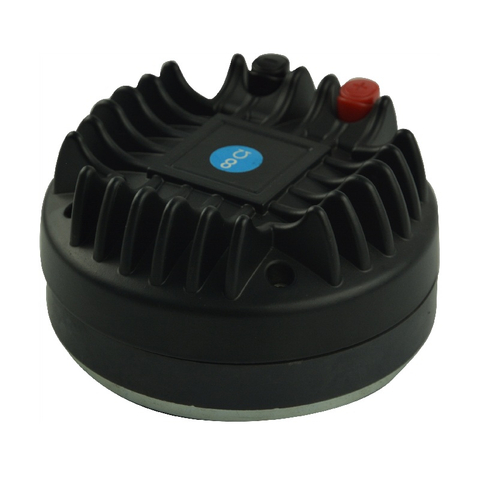

  • GT7221EC
    Voice Coil ⌀:  2.84 inch  /  72.2mm
    Throat ⌀:    2inch  /  50mm
    Magnet Material:   Ferrite Y35
    Nom. Impedance:  8Ω
    Power Capacity:  90W
    Mounting Type:  Screw 1-3/8” or Bolt-on

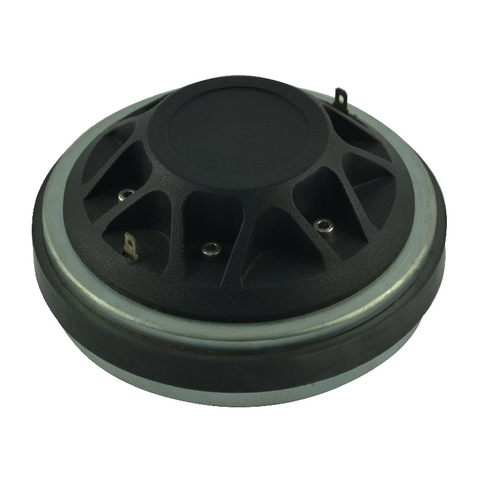

  • GT5110CS
    Voice Coil ⌀:  2.0inch  /  51.1mm
    Throat ⌀:    0.875inch  /  22.2mm
    Magnet Material:   Ferrite Y35
    Nom. Impedance:  8Ω
    Power Capacity:  60W
    Mounting Type:  Screw 1-3/8” or Bolt-on

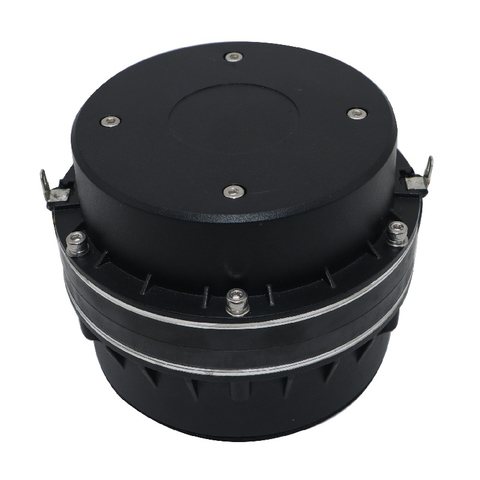

  • GTN902
    Voice Coil ⌀:  2x3.5inch  /  2x90mm
    Throat ⌀:   2.0inch  /  50.8mm
    Magnet Material:   Neodymium N38SH
    Nom. Impedance:  2x8Ω or 2x16Ω
    Power Capacity:  400W (2x200W)
    Mounting Type:  Bolt-on

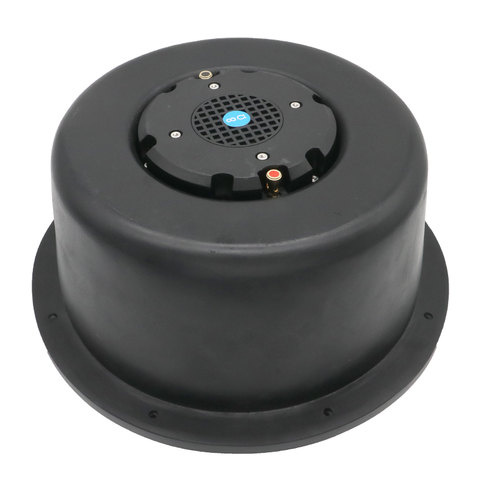

  • GT9000HC
    Voice Coil ⌀:  2x3.5inch (2x90mm)
    Throat ⌀:2inch  /  50.8mm
    Magnet Material:  Neodymium N38SH
    Nom. Impedance: 2x8 or 2x16 Ω
    Power Capacity: 400W (2x200W)

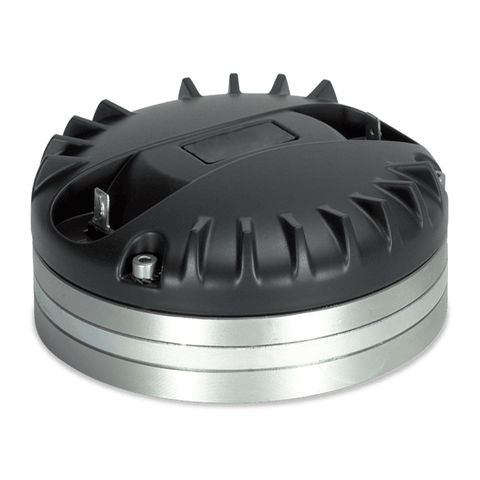

  • GT6350NC
    Voice Coil ⌀:  2.5inch  /  63.5mm
    Throat ⌀:1.4inch  /  35.56mm
    Magnet Material:  Neodymium N-38
    Nom. Impedance:  8 Ω
    Power Capacity:  70W RMS
    Mounting Type:  Screw 1-3/8” / Bolt-on

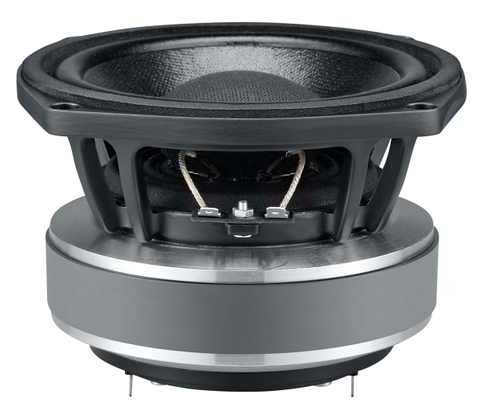

  • GCF5H34
    ⌀ 5.5 inch     Ferrite
    Nom. Impedance: 8Ω(LF)  8Ω(HF)
    Voice Coil ⌀: 38mm(LF)  34mm(HF)
    Continuous Program: 200W(LF)  60W(HF)
    Sensitivity: 92dB(LF)  96dB(HF)

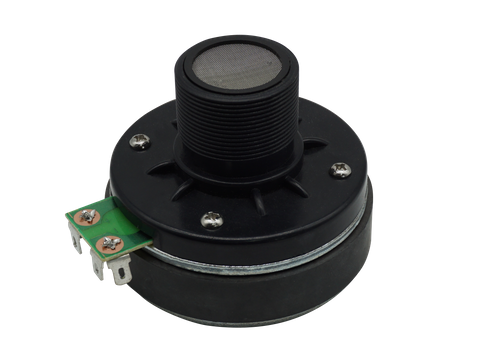

  • GT2548
    Voice Coil ⌀:    1inch  /  25.4mm
    Throat ⌀:    1inch / 25.4mm
    Magnet Material:  Strontium Ferrite
    Nom. Impedance:  8Ω
    Power Capacity: 25W
    Mounting Type:  Screw on 1-3/8"

Ningbo BTL Audio

We are a producer maintaining production bases in Ningbo and Guangzhou, designs and manufactures high-quality PA loudspeakers.
We integrate forward-thinking design, stringent materials, precision testing, and automated production with skilled assembly to guarantee exceptional quality and reliability.
Trusted by top audio brands, we deliver field-proven driver solutions. This enables our clients to save time on sourcing and testing, capture market trends faster, and minimize post-sale issues.
Ultimately, we help partners, ensure superior quality, boost brand image, stand out, and build enduring brand reputations beyond short-term gains.
