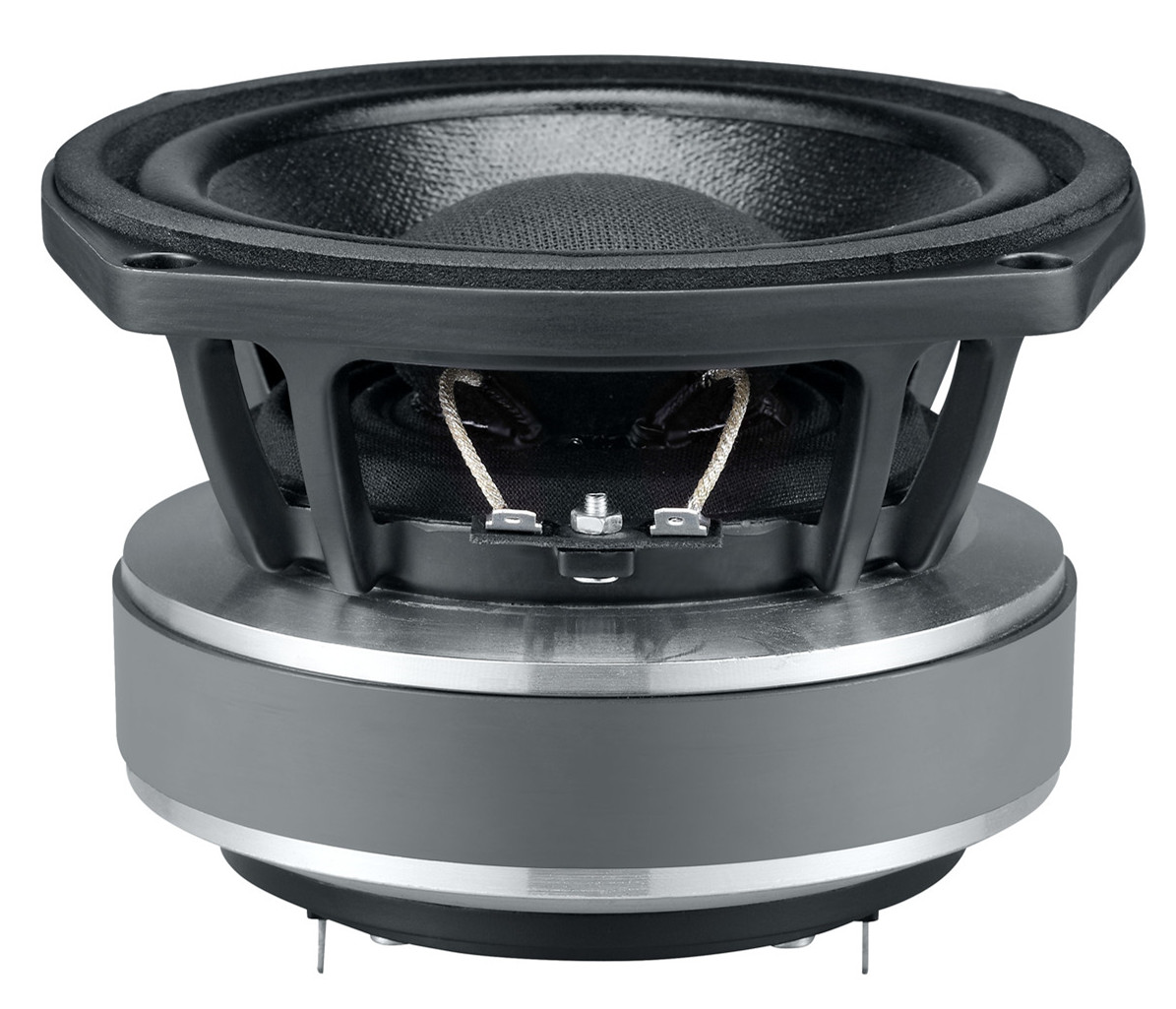

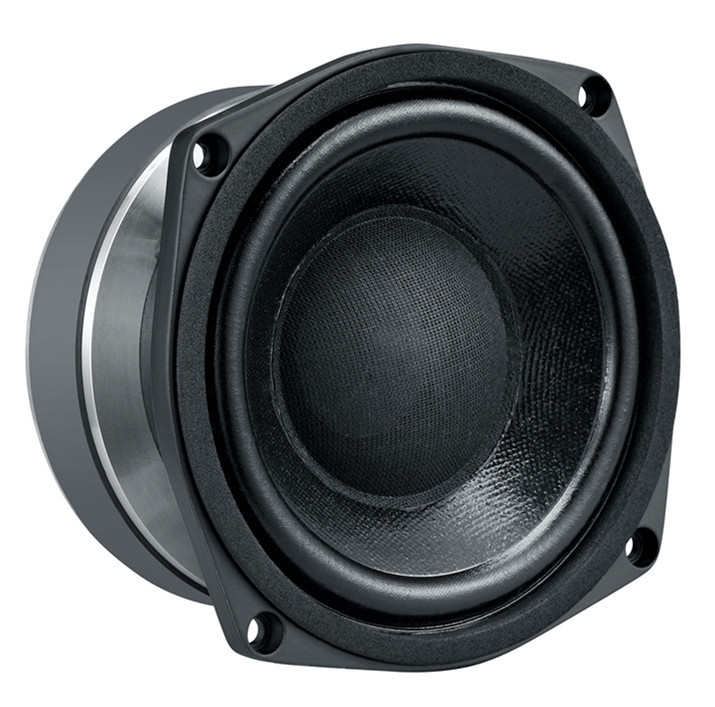

GCF5H34

⌀ 5.5 inch Ferrite

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 38mm(LF) 34mm(HF)

Continuous Program: 200W(LF) 60W(HF)

Sensitivity: 92dB(LF) 96dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

5.5'' / 140 mm

Power Handling Nominal (AES)

100W(LF) 30W(HF)

Continuous Program

200W(LF) 60W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

38mm(LF) 34mm(HF)

Magnet Material

Ferrite

Sensitivity 1W/1m

92dB(LF) 96dB(HF)

Frequency Range

110-20K Hz

Winding Material(LF)

Copper

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Connector Type

Faston
