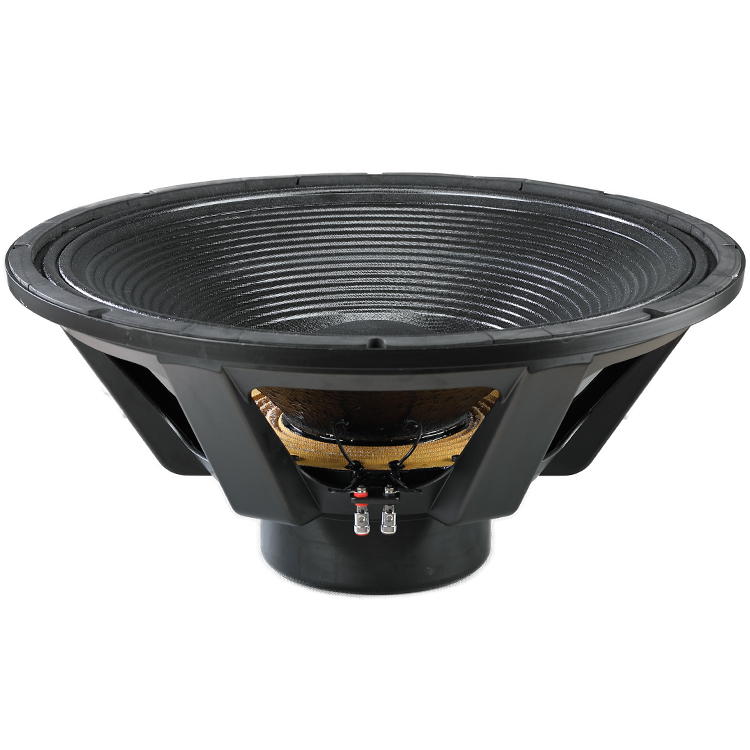

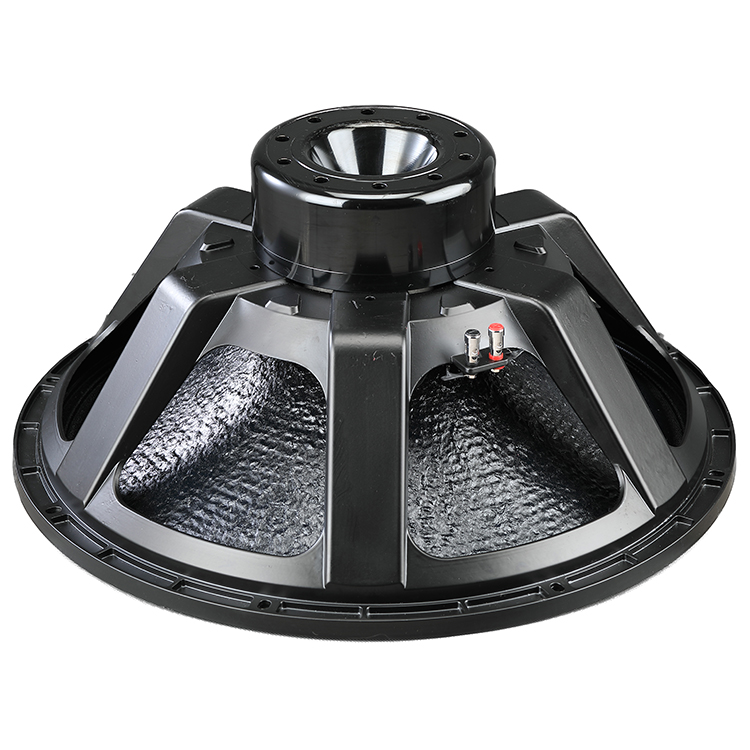

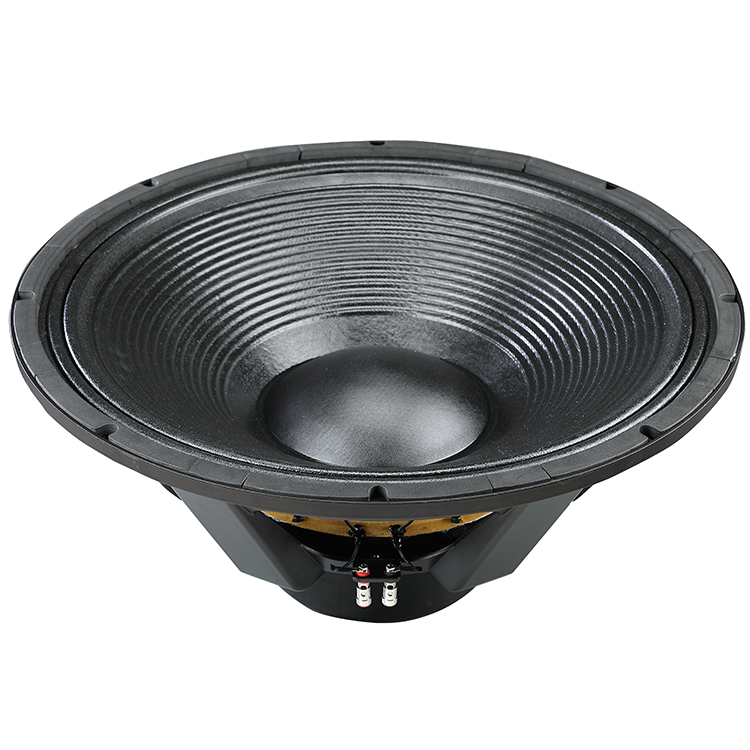

GWN24-152

⌀ 24 inch     NEO
Nom. Impedance: 4Ω
Voice Coil ⌀: 152mm
Continuous Program: 5600W
Sensitivity: 98dB
Availability:
Inquire Add to Basket

Nominal Diameter

24'' / 610 mm

Nominal Impedance

4 Ω

DC Resistance

3.2 Ω

Nominal Power Handling AES

2800 W

Continuous Power Handling

5600 W

Sensitivity 1W/1m²

98 dB

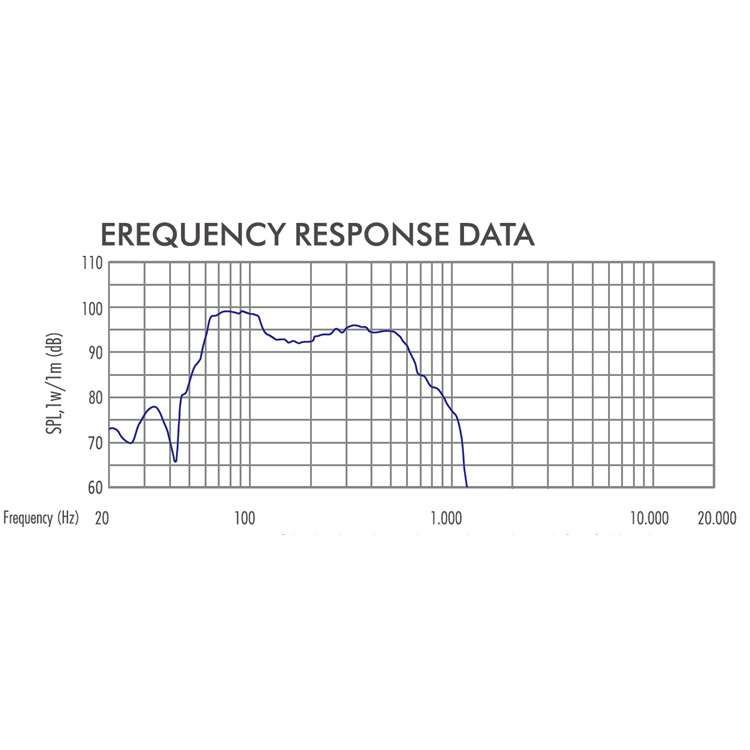

Frequency Range

30-1600 Hz

Voice Coil Diameter

152 mm

Winding Depth

32 mm


F0

38 Hz

Re

3.2 Ω

Qes

0.45

Qms

3.64

Qts

0.4

Vas

149.7 dm³

Sd

2200 cm²

Xmax

±15 mm

Xvar

mm

Mms

482.8 g

BL

30.28 T.m

Le

1.45 mH


Overall Diameter

618 mm

Bolt Circle Diameter

592 mm

Baffle Cutout Diameter

568 mm

Total Depth

285 mm

Flange and Gasket Thickness

14 mm

Net Weight

19.5 kg

No.of mounting holes

8

Mounting holes diameter

10mm
