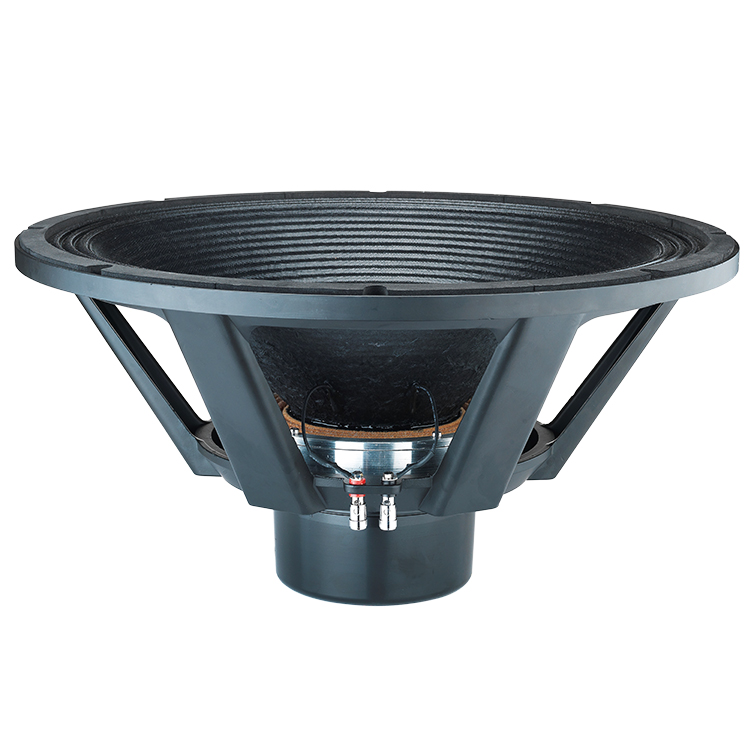

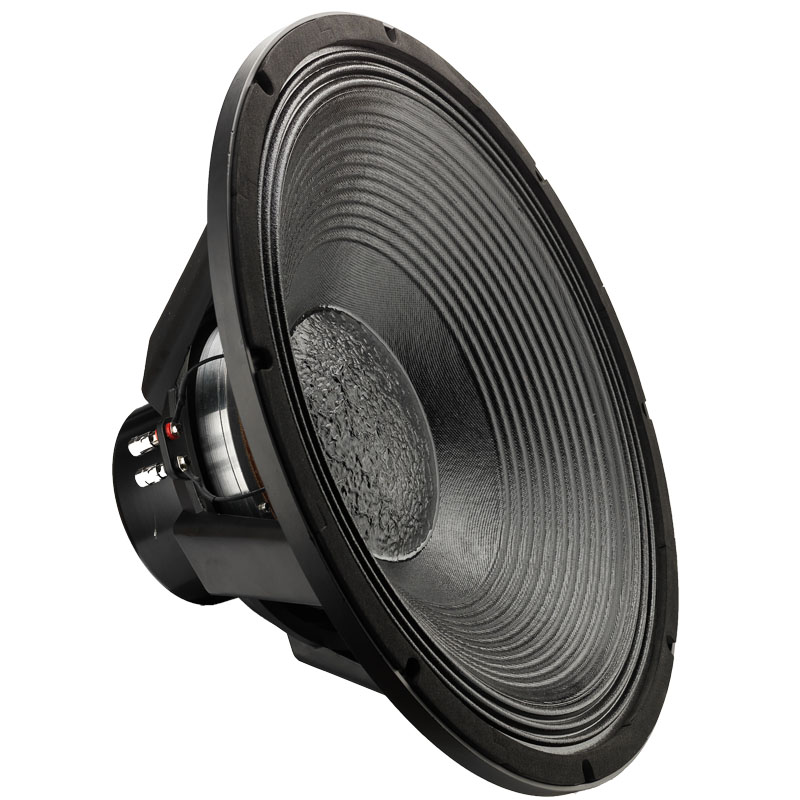

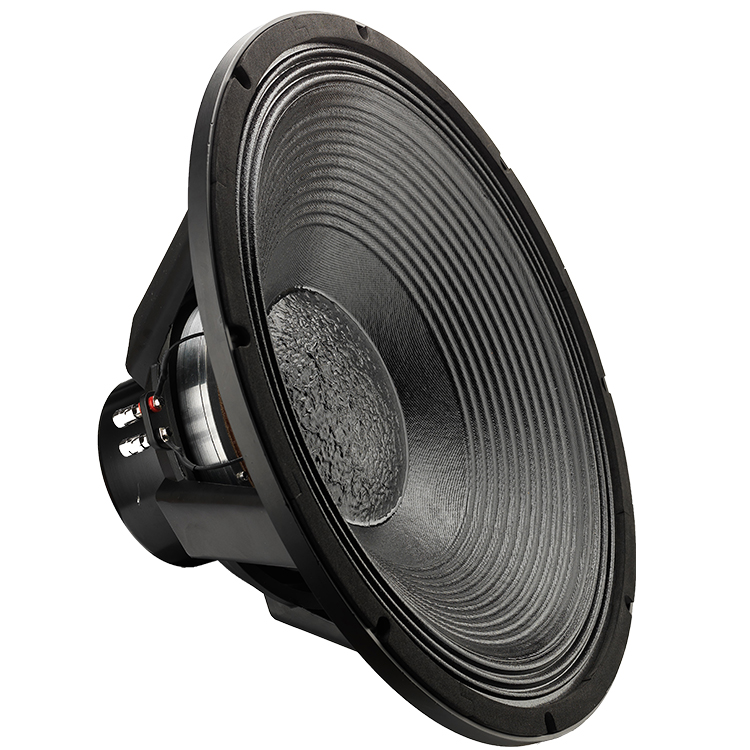

GWN21-125

⌀ 21 inch     NEO
Nom. Impedance: 4Ω
Voice Coil ⌀: 125mm
Continuous Program: 4000W
Sensitivity: 97dB
Availability:
Inquire Add to Basket

Nominal Diameter

21'' / 530mm

Nominal Impedance

4 Ω

DC Resistance

3 Ω

Nominal Power Handling AES

2000 W

Continuous Power Handling

4000 W

Sensitivity 1W/1m²

97 dB

Frequency Range(Hz)

32-2K Hz

Voice Coil Diameter

125 mm

Winding Depth

30 mm


F0

32 Hz

Re

3 Ω

Qes

0.3

Qms

4.25

Qts

0.33

Vas

257.8 dm³

Sd

1662 cm²

Xmax

±12 mm

Xvar

mm

Mms

301.88 g

Bl

23.49 T.m

Le

0.92 mH


Overall Diameter

546 mm

Bolt Circle Diameter

520 mm

Baffle Cutout Diameter

493 mm

Total Depth

265 mm

Flange and Gasket Thickness

14 mm

Net Weight

13.5 kg

No.of mounting holes

8

Mounting holes diameter

8.2mm
