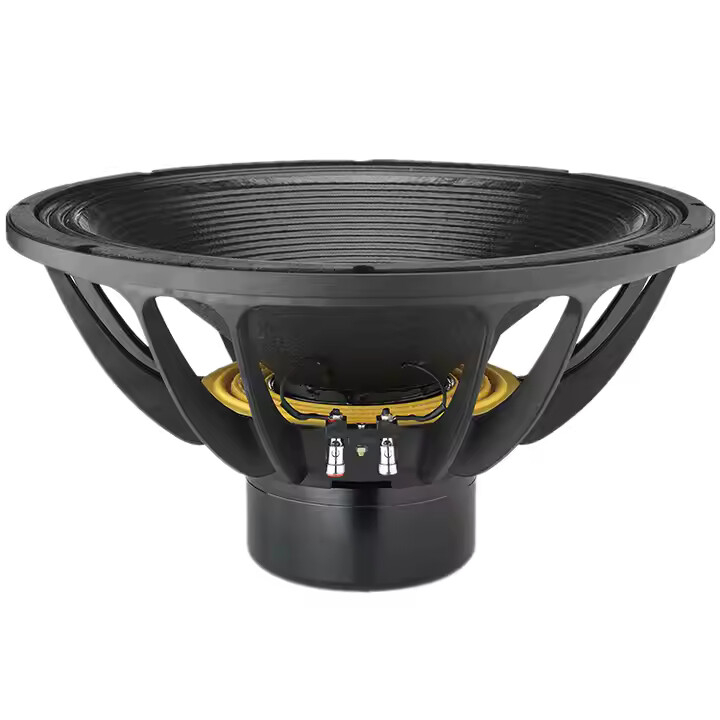

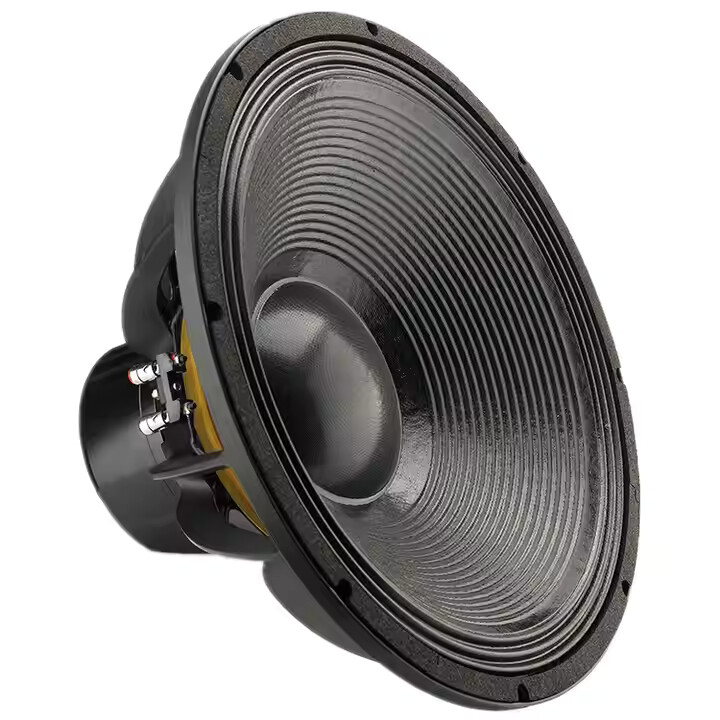

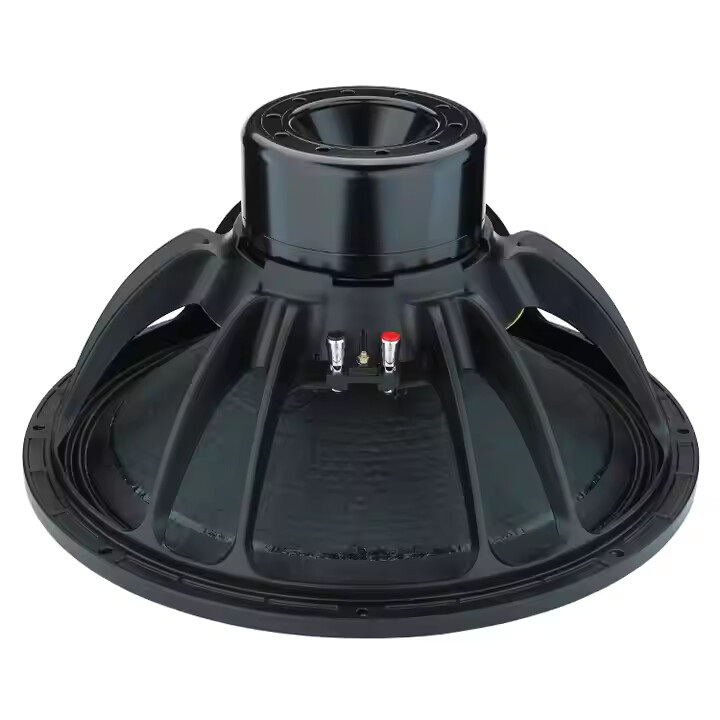

GWN18-115

⌀ 18 inch     NEO
Nom. Impedance: 8Ω
Voice Coil ⌀: 115mm
Continuous Program: 3600W
Sensitivity: 96dB
Availability:

Nominal Diameter

18'' / 460 mm

Nominal Impedance

8 Ω

DC Resistance

5.3 Ω

Nominal Power AES (W)

1800 W

Continuous Power Handling

3600 W

Sensitivity 1W/1m

96 dB

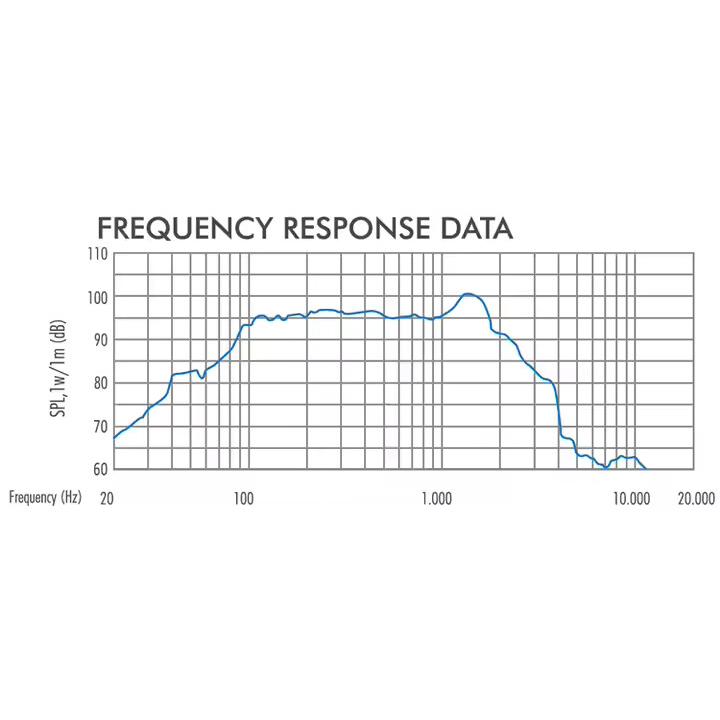

Frequency Range

30-1500 Hz

Voice Coil Diameter

115 mm

Winding Depth

30 mm


F0

35 Hz

Re

5.3 Ω

Qes

0.3

Qms

4.17

Qts

0.28

Sd

1225 cm²

Xmax

±15 mm

Mms

244.15 g

Bl

32.86 T.m

Le

1.59 mH




Overall Diameter

460 mm

Bolt Circle Diameter

442.5 mm

Baffle Cutout Diameter

354 mm

Total Depth

210 mm

Flange and Gasket Thickness

14 mm

Gross Weight

13.5 kg
