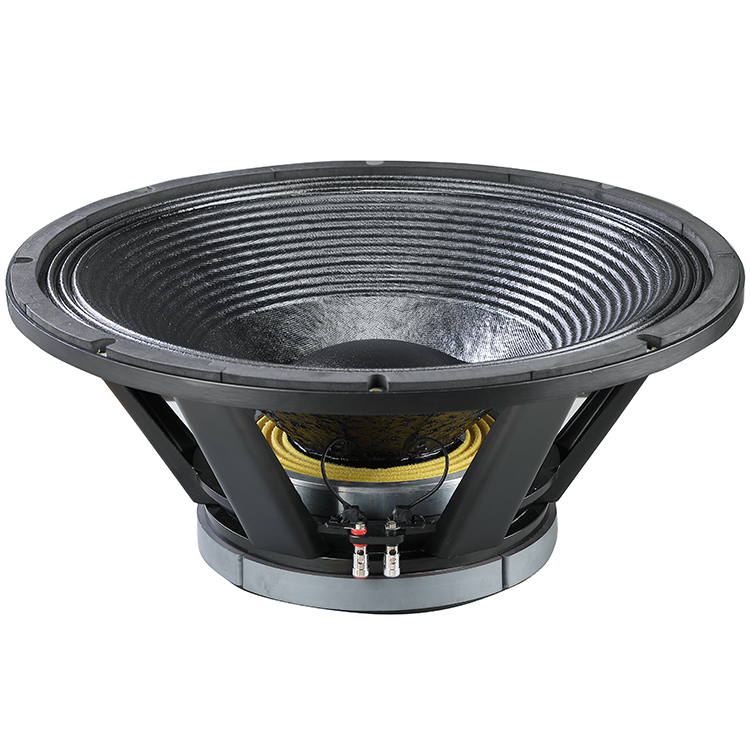

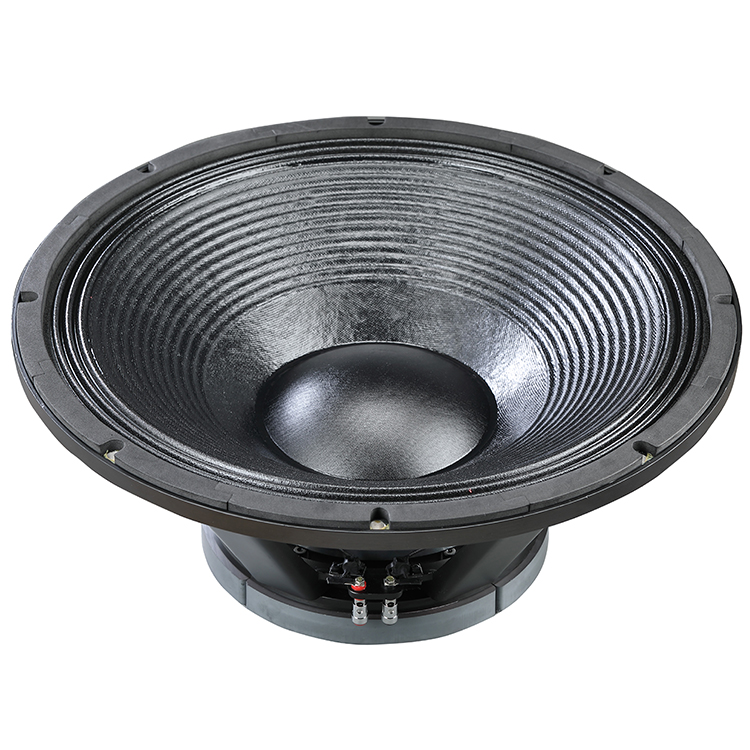

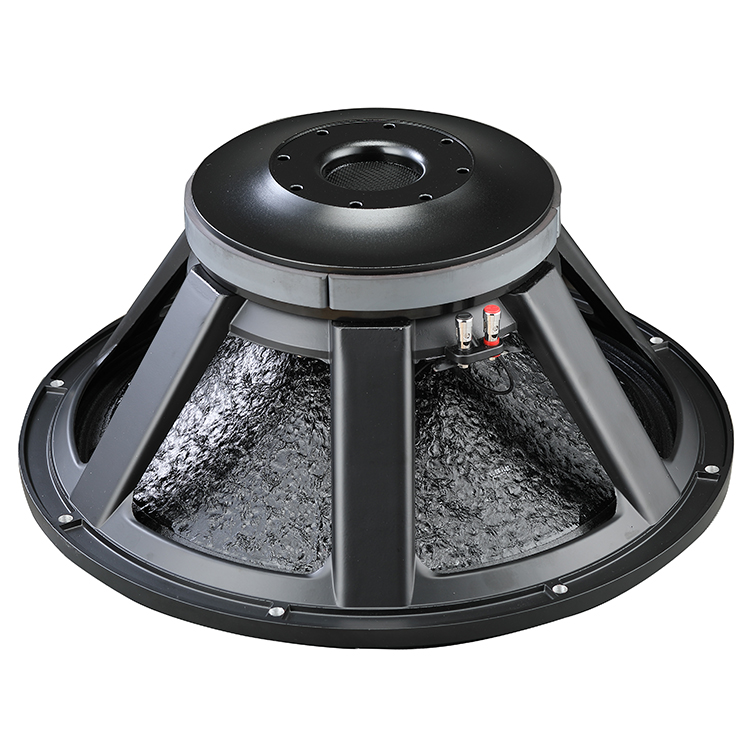

GW21-125A

⌀ 21 inch     NEO
Nom. Impedance: 8Ω
Voice Coil ⌀: 125mm
Continuous Program: 4000W
Sensitivity: 97dB
Availability:

Nominal Diameter

21'' / 530 mm

Nominal Impedance

8 Ω

DC Resistance

5 Ω

Nominal Power Handling AES

2000 W

Continuous Power Handling

4000 W

Sensitivity 1W/1m²

97 dB

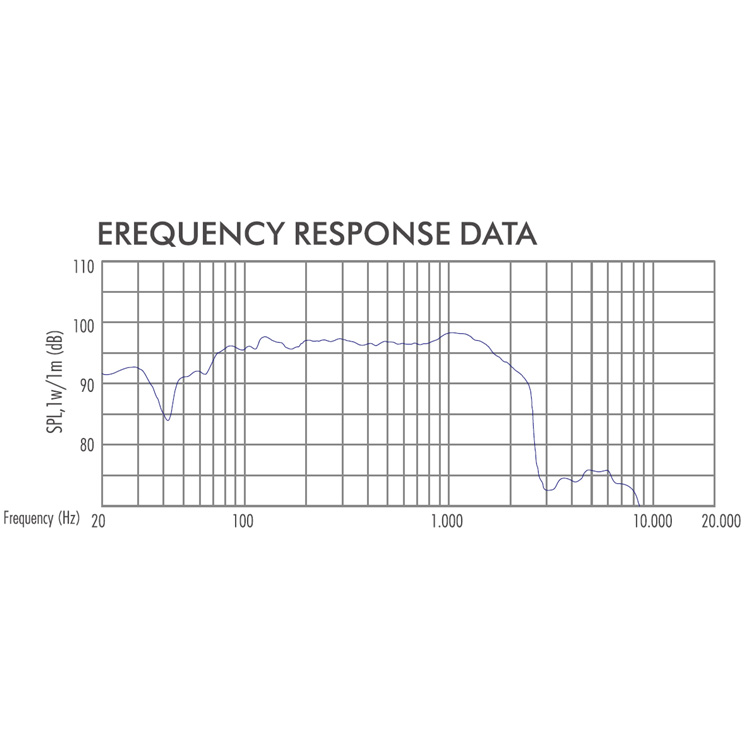

Frequency Range

30-1K Hz

Voice Coil Diameter

125 mm

Winding Depth

28 mm


F0

34 Hz

Re

5 Ω

Qes

0.34

Qms

4.79

Qts

0.32

Vas

263.5 dm³

Sd

1600 cm²

Xmax

±15 mm

Xvar

mm

Mms

304 g

Bl

31.02 T.m

Le

1.34 mH


Overall Diameter

546 mm

Bolt Circle Diameter

520 mm

Baffle Cutout Diameter

493 mm

Total Depth

240 mm

Flange and Gasket Thickness

12 mm

Net Weight

21.4 kg

No.of mounting holes

8

Mounting holes diameter

10 mm
