GW18-125

⌀ 18 inch     NEO
Nom. Impedance: 8Ω
Voice Coil ⌀: 125mm
Continuous Program: 3600W
Sensitivity: 97dB
Availability:
Inquire Add to Basket

Nominal Diameter

18'' / 460 mm

Nominal Impedance

8 Ω

Minimum Impedance

Ω

Nominal Power Handling AES

1800 W

Continuous Power Handling

3600 W

Sensitivity 1W/1m²

97 dB

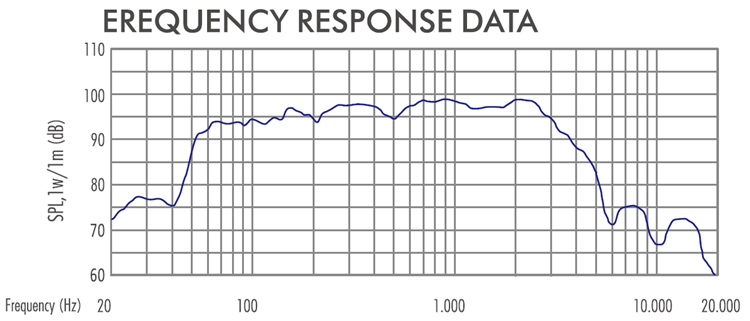

Frequency Range

33-1600 Hz

Voice Coil Diameter

125 mm

Winding Material

Copper


F0

33 Hz

Re

5.6 Ω

Qes

0.29

Qms

10.22

Qts

0.27

Vas

200 dm³

Sd

1200 cm²

Xmax

±15 mm

Xvar

mm

Mms

245.87 g

Bl

33.01 T.m

Le

1.29 mH


Overall Diameter

487×471 mm

Bolt Circle Diameter

470×440 mm

Baffle Cutout Diameter

416 mm

Total Depth

190 mm

Flange and Gasket Thickness

12 mm

Air Volume Occupied By Driver

dm³

Net Weight

19.65 kg

No.of mounting holes

8

Mounting holes diameter

7 mm
