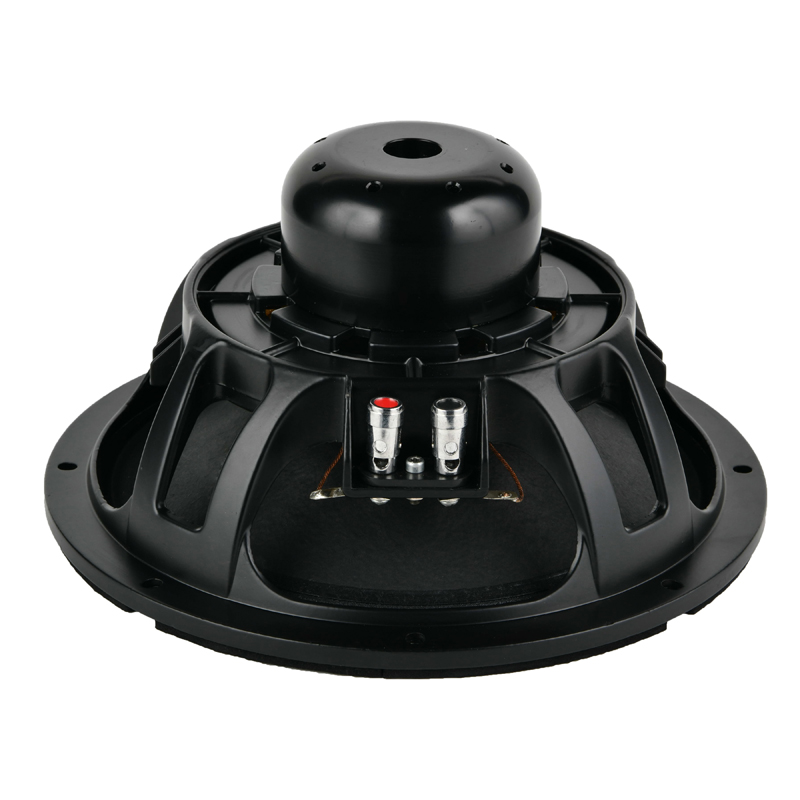

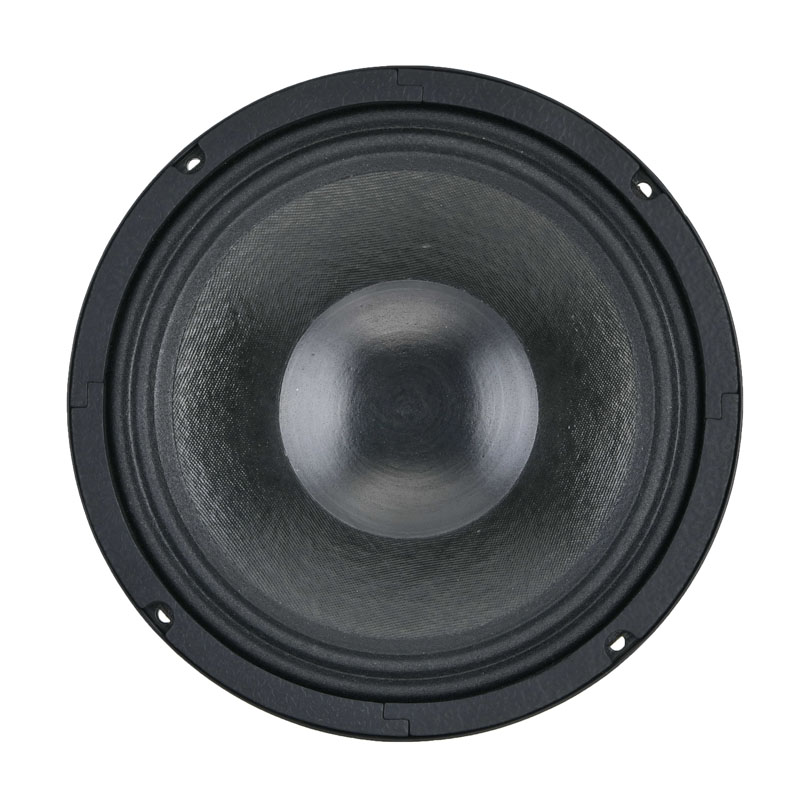

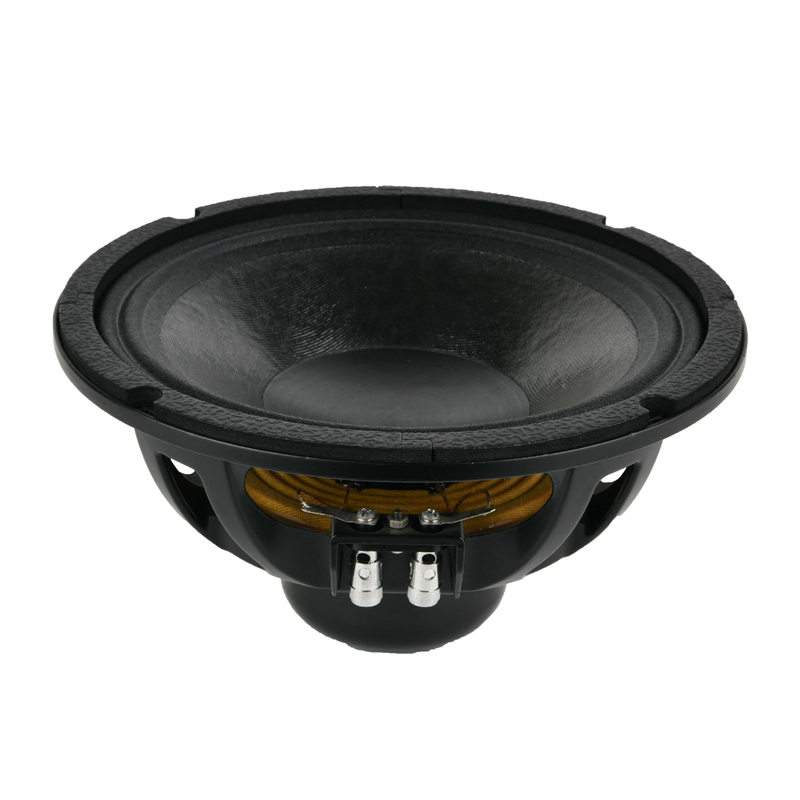

GW10D11-16-65

⌀ 10 inch
Nom. Impedance: 16Ω
Voice Coil ⌀: 65.5mm
Continuous Program: 600W
Sensitivity: 99dB
Availability:

Nominal Diameter

10'' / 260 mm

Nominal Impedance (ohm)

16 Ω

DC Resistance

12 Ω

Nominal Power Handling

300 W

Continuous Power Handling

600 W

Sensitivity( 1W/1m)(dB)

99 dB

Frequency Range

60-5200 Hz

Voice Coil Diameter

65.5 mm

Winding Depth

14 mm


F0

59 Hz

Re

12 Ω

Qes

0.32

Qms

2.83

Qts

0.29

Vas

38.58 dm³

Sd

34.64 cm²

Xmax

±3 mm

Mms

31.84 g

Bl

20.86 T.m

Le

778.39 mH



Overall Diameter

260.5  mm

Bolt Circle Diameter

244.5 mm

Baffle Cutout Diameter

231 mm

Depth

124 mm

Flange and Gasket

10 mm

Net Weight

3 kg

Shipping Box

280×280×160 mm
