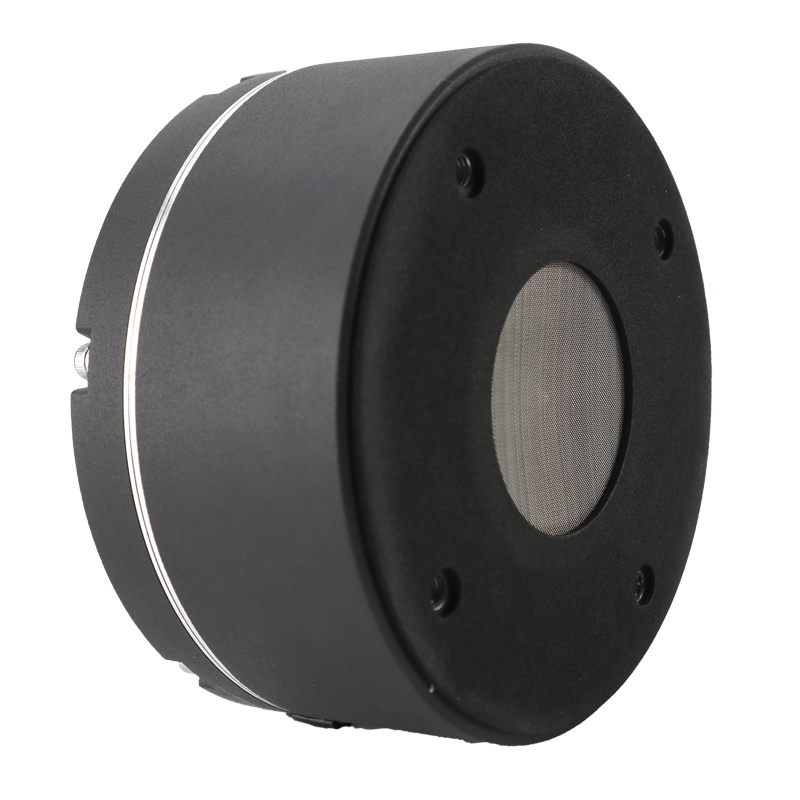

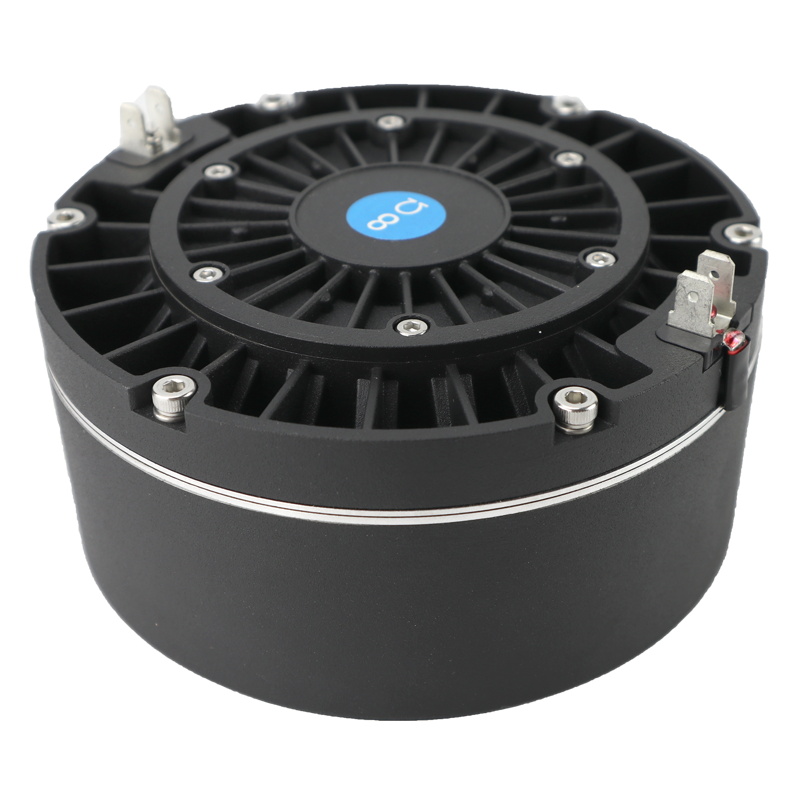

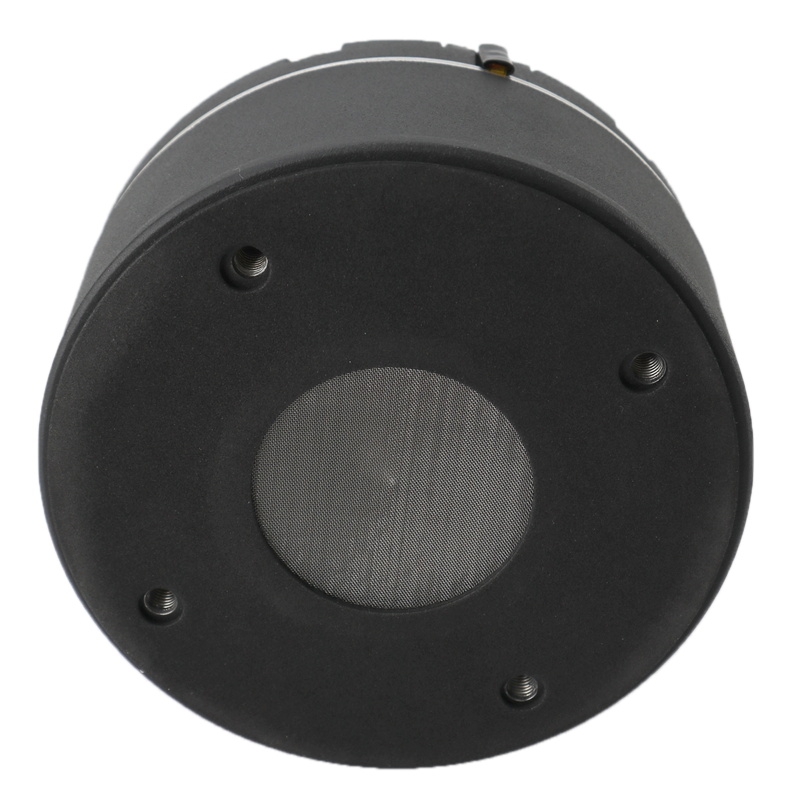

GTN93

Voice Coil ⌀: 3.54inch  /  90mm
Throat ⌀:2inch  /  50.8 mm
Magnet Material: Neodymium N38H
Nom. Impedance: 8 Ω
Power Capacity: 150W AES

Availability:

Throat Diameter

2.0'' / 50.8mm

Nominal Impedance

8 Ω

Power Capacity

150W AES

Sensitivity

1W/1m 116 dB (Horn)

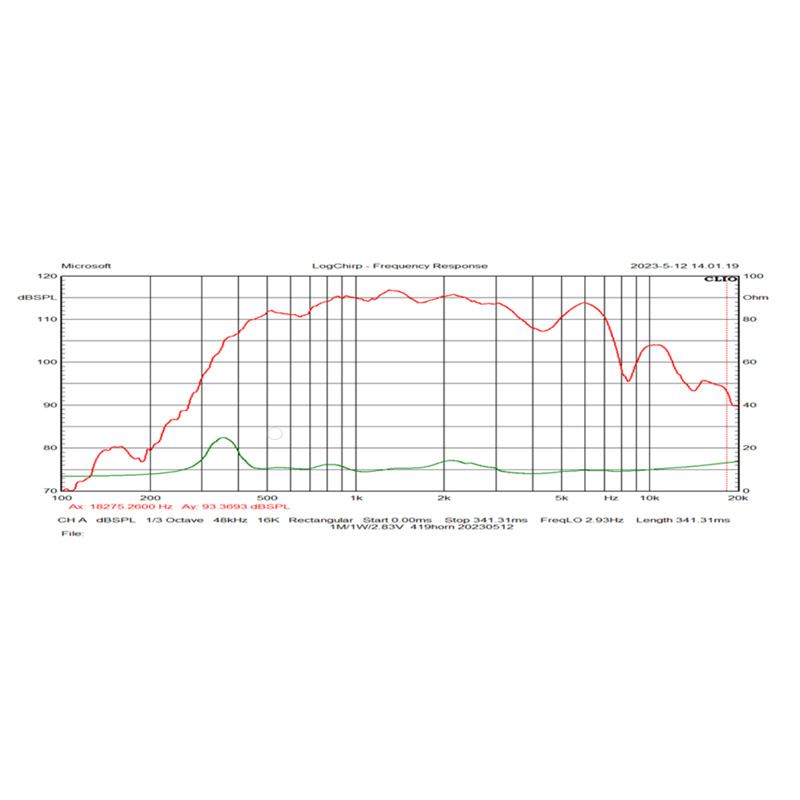

Frequency Range

400-8K Hz

Diaphragm Material

Polyimide

Voice Coil Diameter

3.54'' / 90mm

Voice Coil Former

Kapton

Voice Coil Material

CCAW

Flux Density

1.95 T

Magnet Material

Neodymium  N38H



Overall Diameter x Depth

φ136mm(5.21'') × 74.5mm(2.58'')

Net Weight

1.77 kg
