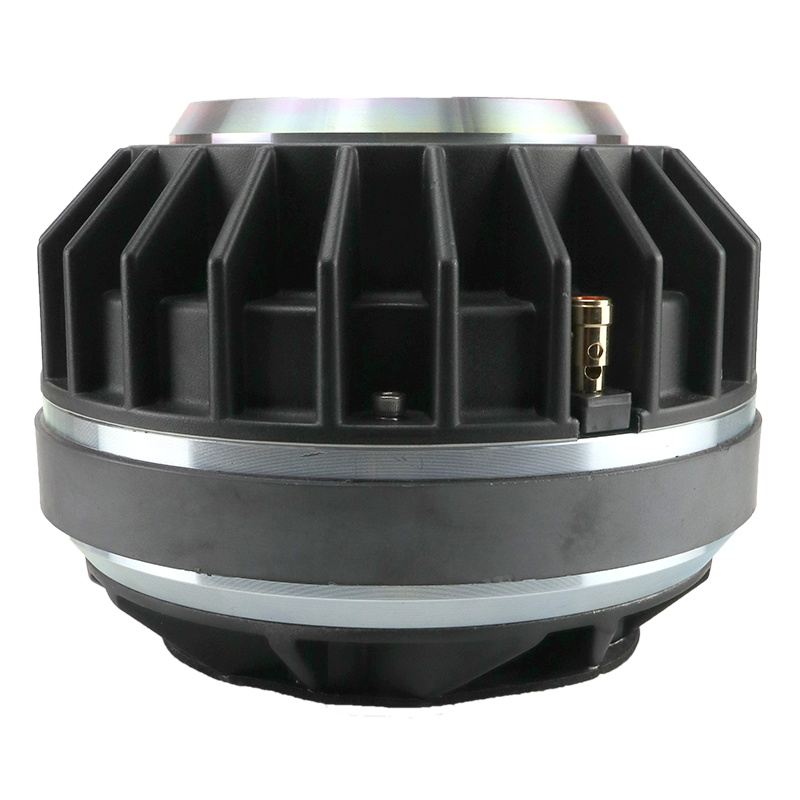

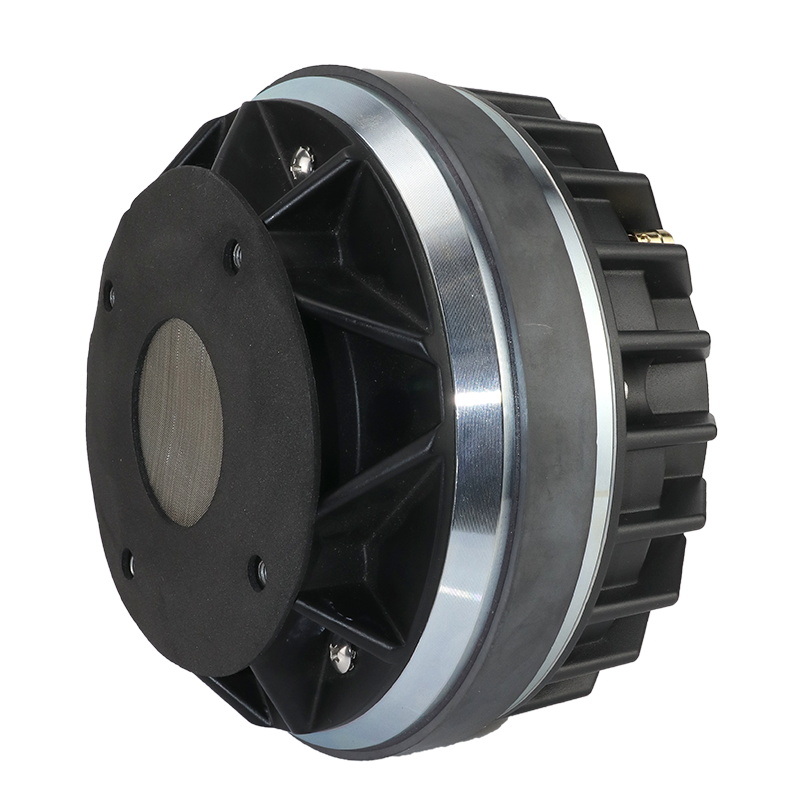

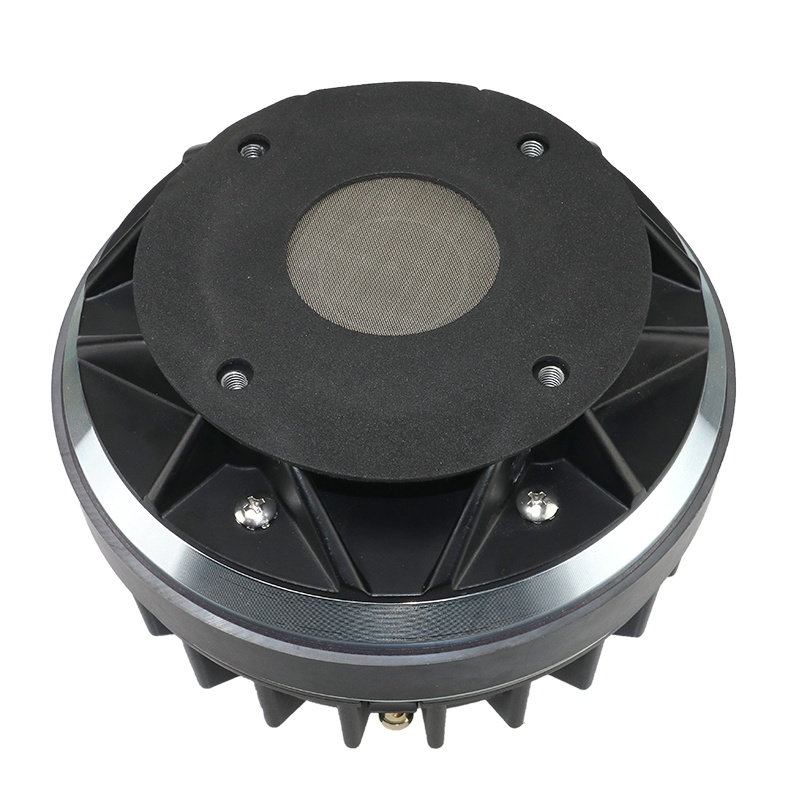

GT9040

Voice Coil ⌀: Mid-range:3.5in(90mm) , High-range:1.75in(44.4mm)

Throat ⌀：2.0in(50.8mm)
Magnet Material: Strontium Ferrite
Nom. Impedance: 8 or 16 Ω
Power Capacity: 100W AES above 400Hz (Middle Range) 50W AES (High Range)
Mounting Type: Bolt-on


Availability:



Inquire Add to Basket

Throat Diameter

2'' / 50.8 mm

Mounting Type

Bolt-on

Nominal Impedance

8 or 16 Ω

Power Capacity

100W(Mid) 50W(High)

Sensitivity(1W/1M)

118 dB

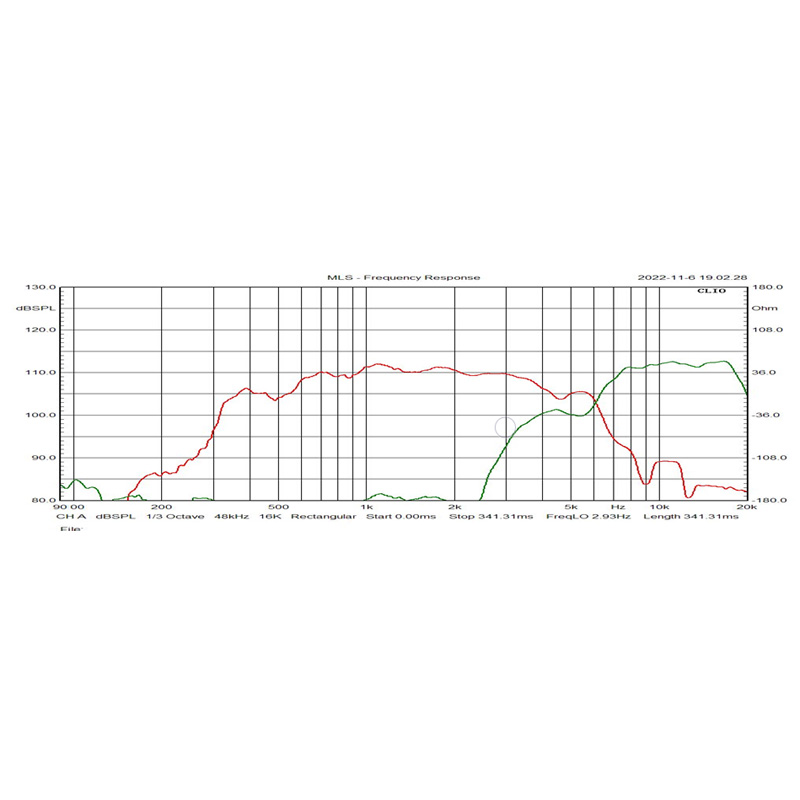

Frequency Range

300-22K Hz

Middle Frequency Range

300-7K Hz

High Frequency Range

6K-22K Hz

Voice Coil Mid-range

3.5'' / 90 mm

Voice Coil High-range

1.75'' / 44.4 mm

Voice Coil Material

Kapton

Magnet Material

Strontium Ferrite

Flux Density

1.8 T

Diaphragm Material

Polyester
