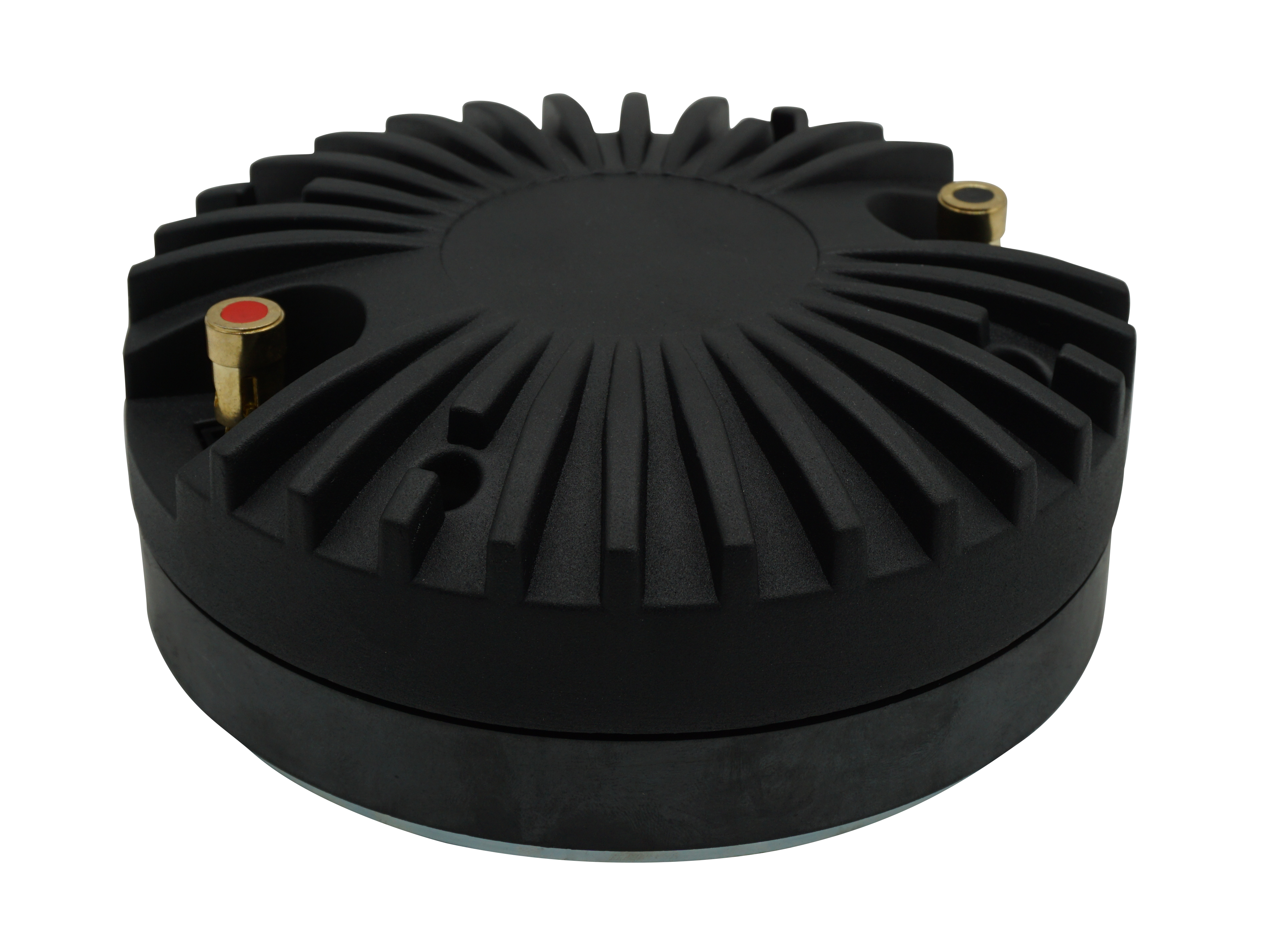

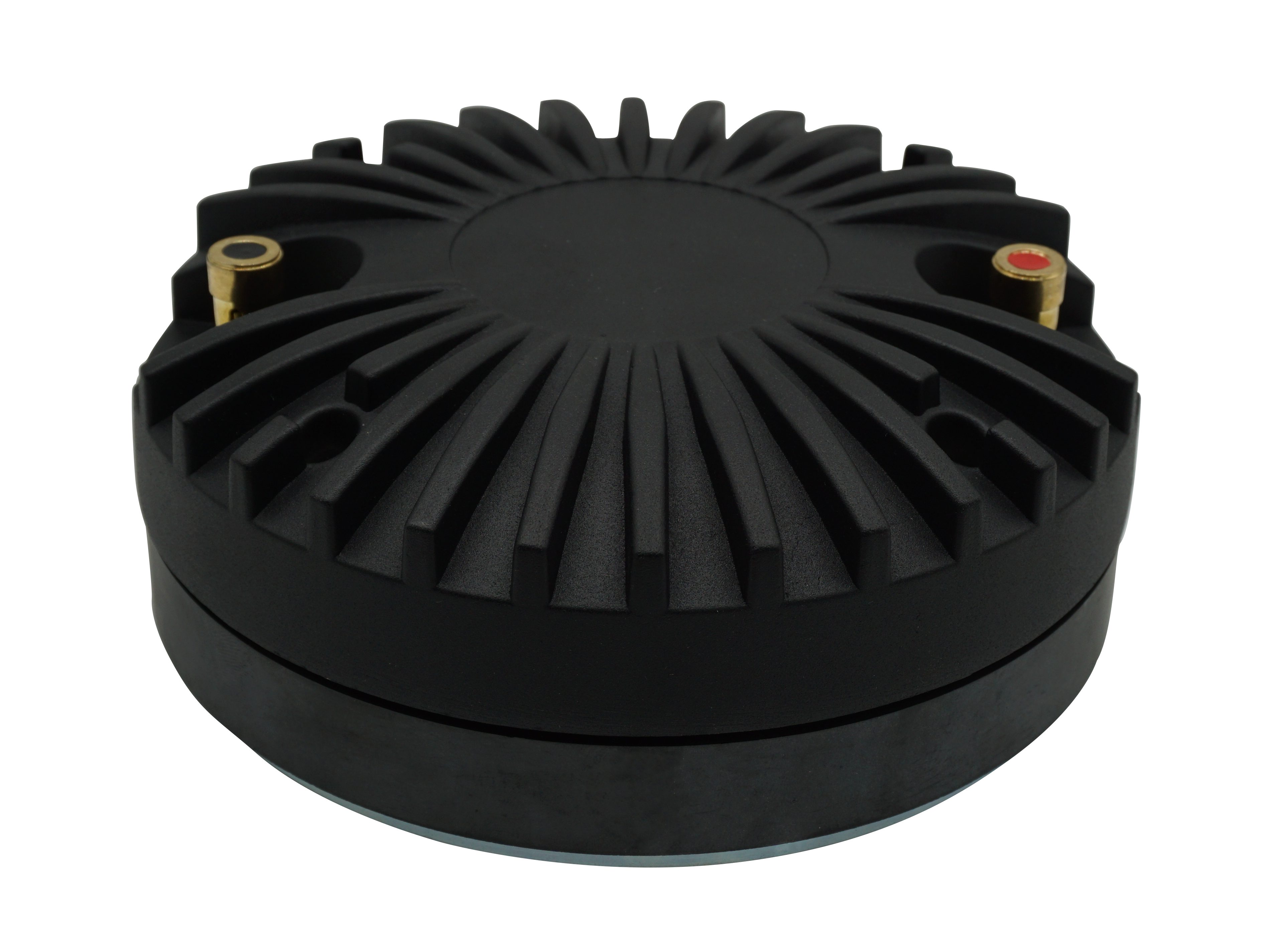

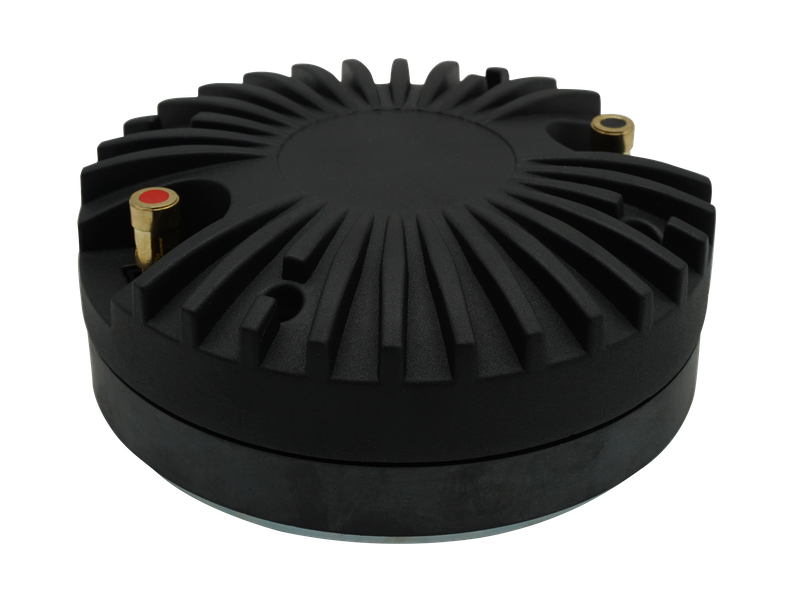

GT7220AL

Voice Coil ⌀: 2.84 inch / 72.2mm
Throat ⌀: 2inch / 50mm
Magnet Material: Strontium Ferrite
Nom. Impedance: 8Ω
Power Capacity: 80W
Mounting Type: Bolt-on


Availability:



Inquire Add to Basket

Throat Diameter(mm)

2.0'' / 50.8mm

Mounting Type

Bolt-on

Nominal Impedance

8Ω

Power Capacity

80 W

Sensitivity(2×1W/1M)

110 dB

Max Volume

Frequency Range

500-18K Hz

Diaphragm Material

Titanium

Voice Coil Diameter

2.84'' / 72.2 mm

Voice Coil Material

Round Aluminium Wire

Flux Density

1.8 T

Fagnet Material

Strontium Ferrite

Ningbo BTL Audio

We are a producer maintaining production bases in Ningbo and Guangzhou, designs and manufactures high-quality PA loudspeakers.
We integrate forward-thinking design, stringent materials, precision testing, and automated production with skilled assembly to guarantee exceptional quality and reliability.
Trusted by top audio brands, we deliver field-proven driver solutions. This enables our clients to save time on sourcing and testing, capture market trends faster, and minimize post-sale issues.
Ultimately, we help partners, ensure superior quality, boost brand image, stand out, and build enduring brand reputations beyond short-term gains.
