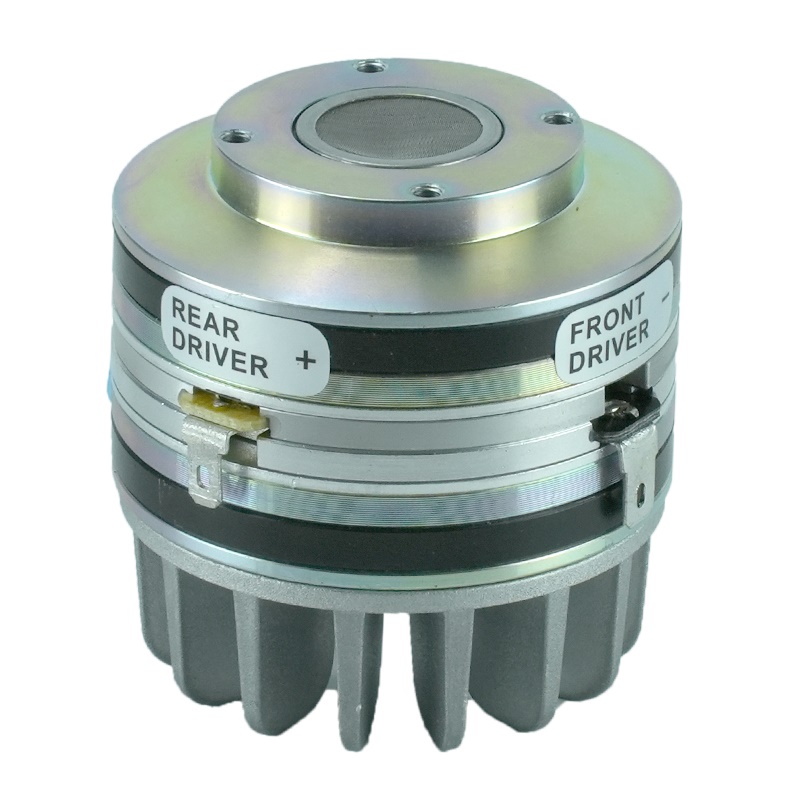

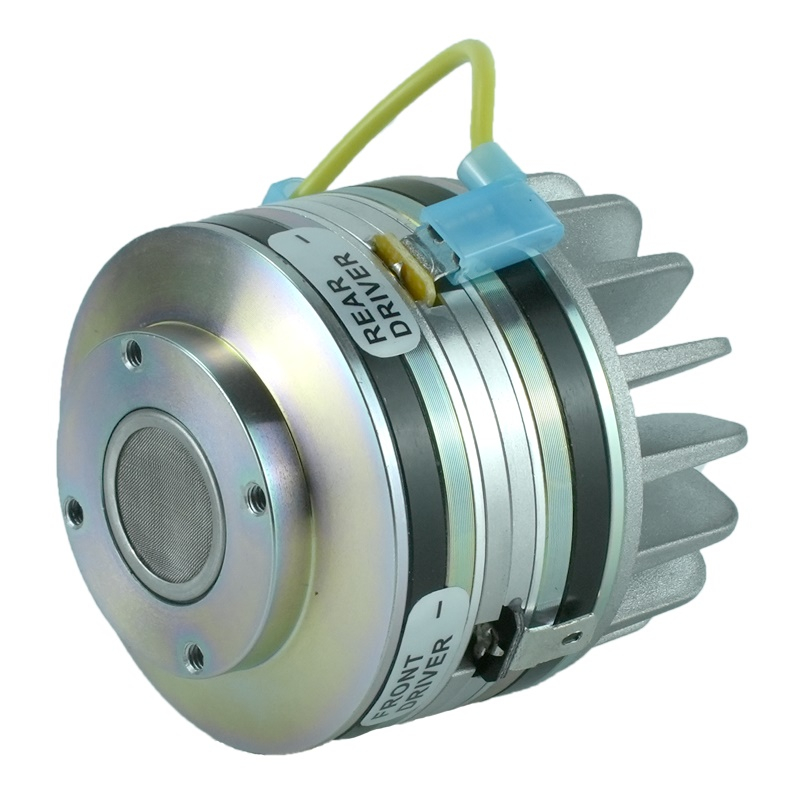

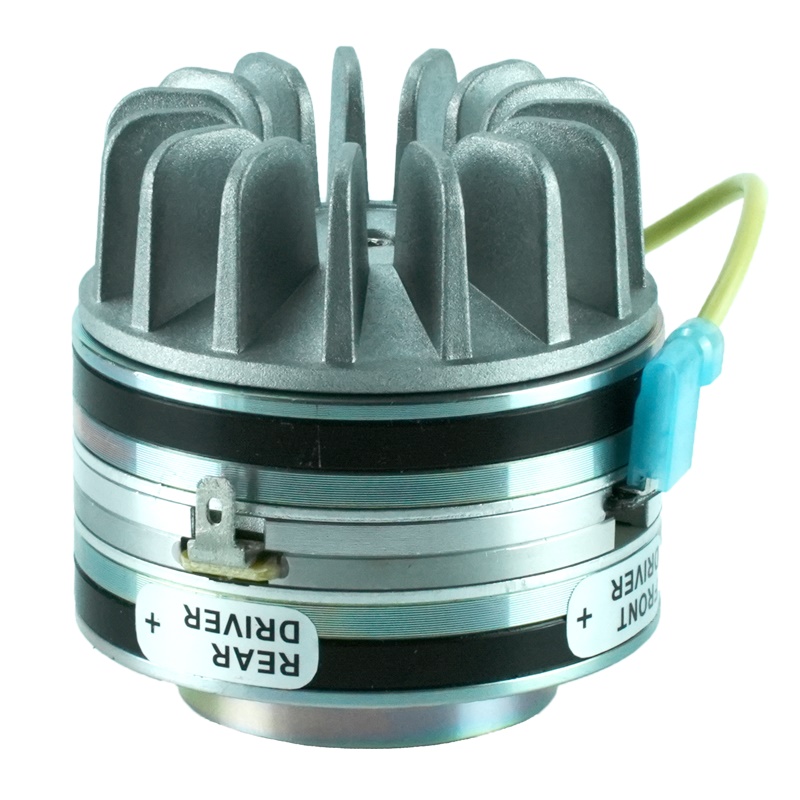

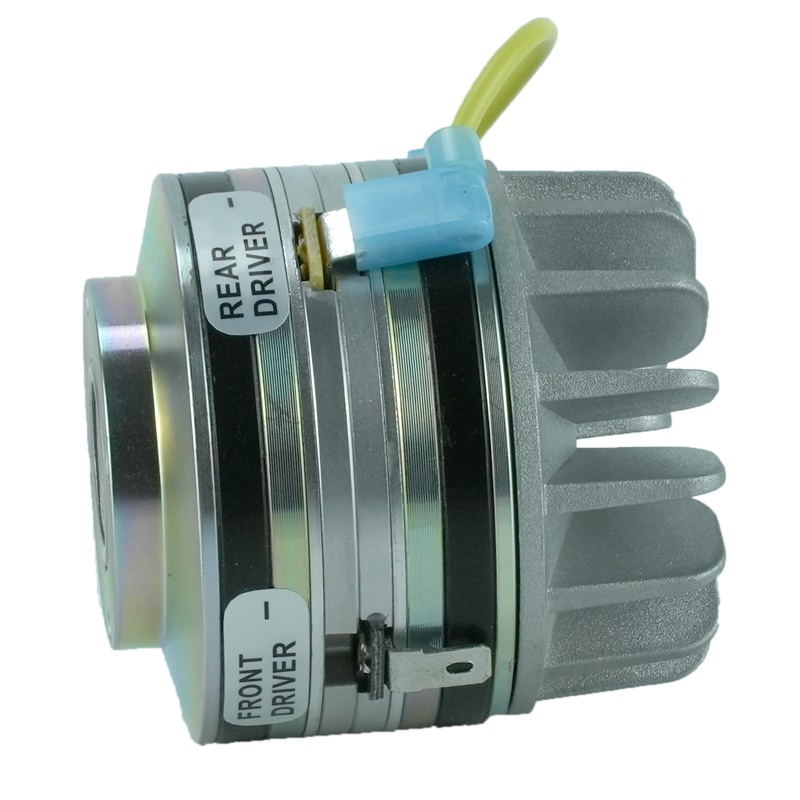

GT3820

Voice Coil ⌀: 1.5 inch / 38mm
Throat ⌀:1 inch / 25 mm
Magnet Material: Neodymium N48H
Nom. Impedance: 2x16 Ω
Power Capacity: 60W RMS (2x30W)
Mounting Type: Bolt-on
Availability:

Throat Diameter

1'' / 25 mm

Mounting Type

Bolt-on

Nominal Impedance

2x16 Ω

Power Capacity(W)

60W RMS (2x30W)

Sensitivity(1W/1M)

116 dB

Frequency Range

1K-20K Hz

Diaphragm Material

Polyimide

Voice Coil Diameter

1.5'' / 38 mm

Voice Coil Material

Round Al Wire

Voice Coil Former

Kapton

Flux Density

2.1 T

Magnet Material

Neodymium N48H


Overall Diameter x Depth

φ75 mm (2.95'') × 72.6 mm (2.85'')

Net Weight

1 kg
