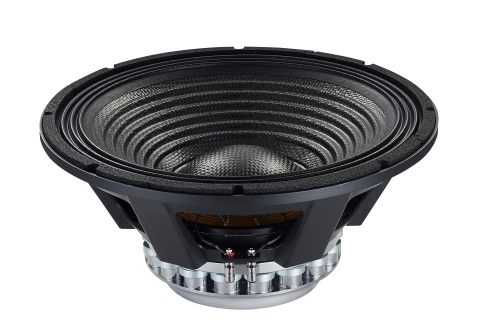

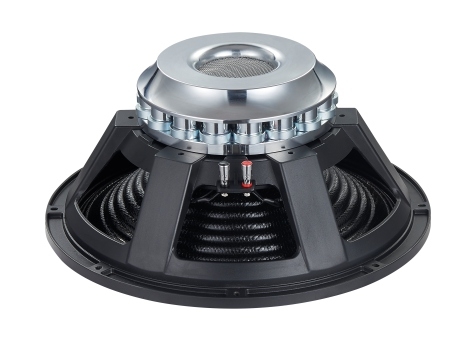

GND18BS125

⌀ 18 inch     NEO
Nom. Impedance: 8Ω
Voice Coil ⌀: 125mm
Continuous Program: 3000W
Sensitivity: 98dB
Availability:
Inquire Add to Basket

Nominal Diameter

18'' / 460 mm

Nominal Impedance

8 Ω

Minimum Impedance

5.6 Ω

Nominal Power Handling AES

1500 W

Continuous Power Handling

3000 W

Sensitivity 1W/1m²

98 dB

Frequency Range

40-1.5K Hz

Voice Coil Diameter

125 mm

Winding Material

Copper


F0

40 Hz

Re

5.6 Ω

Qes

0.38

Qms

19.7

Qts

0.36

Vas

186 dm³

Sd

1260 cm²

Xmax

±12 mm

Xvar

mm

Mms

210.5 g

Bl

25.6 T.m

Le

1.26 mH


Overall Diameter

464 mm

Bolt Circle Diameter

443 mm

Baffle Cutout Diameter

456 mm

Total Depth

230 mm

Flange and Gasket Thickness

13 mm

Air Volume Occupied By Driver

dm³

Net Weight

12.45 kg

Shipping Weight

13.4 kg

Shipping Box

480×480×280 mm
