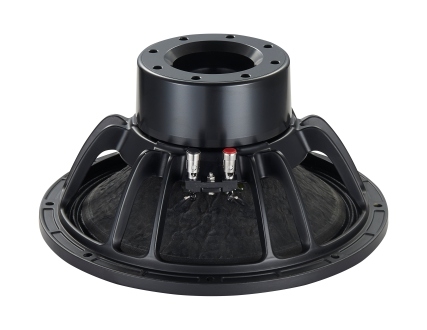

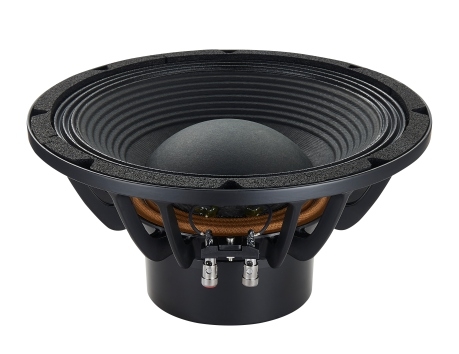

GND12W100

⌀ 12 inch     NEO
Nom. Impedance: 8Ω
Voice Coil ⌀: 100mm
Continuous Program: 1200W
Sensitivity: 97dB
Availability:
Inquire Add to Basket

Nominal Diameter

12'' / 320 mm

Nominal Impedance

8 Ω

Minimum Impedance

5.3 Ω

Nominal Power Handling AES

600 W

Continuous Power Handling

1200 W

Sensitivity 1W/1m²

97 dB

Frequency Range

65-2.5K Hz

Voice Coil Diameter

100 mm

Winding Material

Copper


F0

65 Hz

Re

5.3 Ω

Qes

0.25

Qms

5.6

Qts

0.24

Vas

33 dm³

Sd

340 cm²

Xmax

±10 mm

Xvar

mm

Mms

100 g

Bl

20.1 T.m

Le

0.8 mH


Overall Diameter

315 mm

Bolt Circle Diameter

298 mm

Baffle Cutout Diameter

283 mm

Total Depth

160 mm

Flange and Gasket Thickness

10 mm

Air Volume Occupied By Driver

dm³

Net Weight

5.7 kg

Shipping Weight

6.5 kg

Shipping Box

330×330×240 mm
