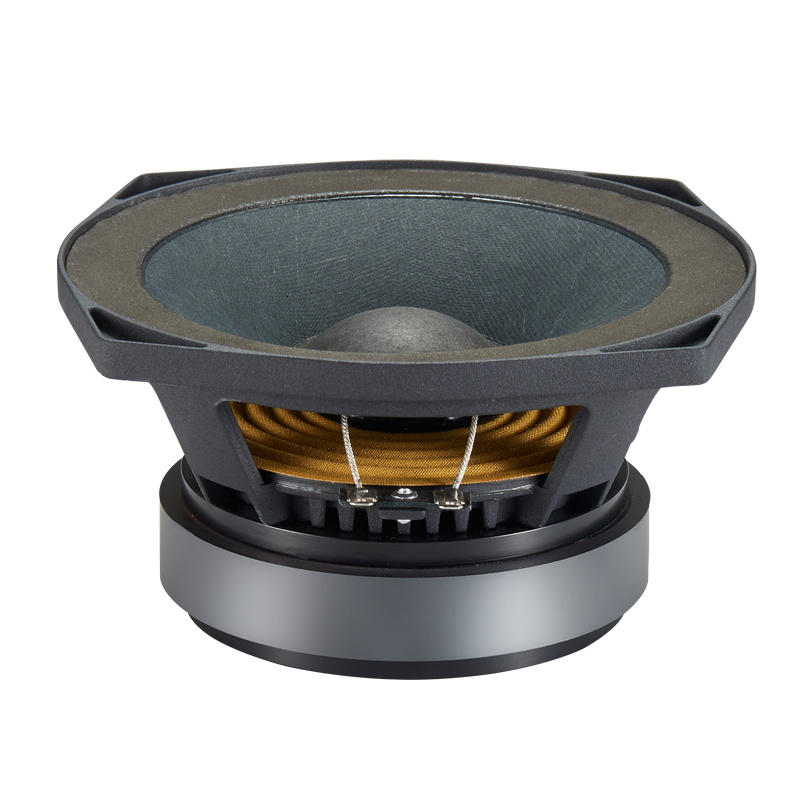

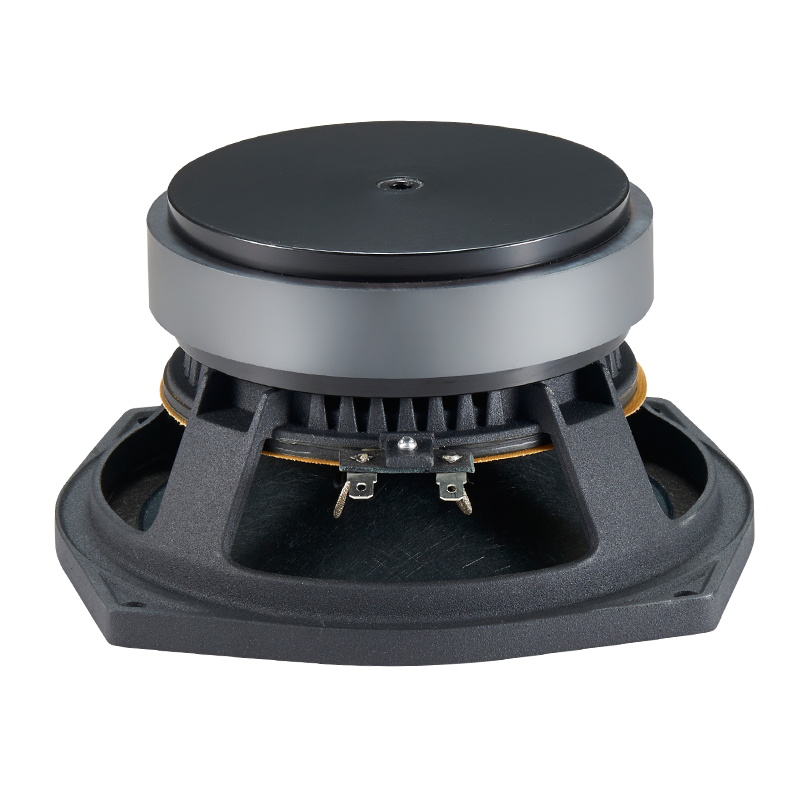

GF6M38

⌀ 6.5 inch     NEO
Nom. Impedance: 8Ω
Voice Coil ⌀: 40mm
Continuous Program: 200W
Sensitivity: 95dB
Availability:
Inquire Add to Basket

Nominal Diameter

6.5'' / 170mm

Nominal Impedance

8 Ω

Minimum Impedance

6 Ω

Nominal Power Handling AES

100 W

Continuous Power Handling

200 W

Sensitivity 1W/1m²

95 dB

Frequency Range

125-5K Hz

Voice Coil Diameter

40 mm

Winding Material

Aluminum


F0

118 Hz

Re

6.2 Ω

Qes

0.45

Qms

2.77

Qts

0.43

Vas

8.48 dm³

Sd

154 cm²

Xmax

±1.5 mm

Xvar

±1.5 mm

Mms

6.31 g

BL

6.63 T.m

Le

0.23 mH


Overall Diameter

161 mm

Bolt Circle Diameter

146 mm

Baffle Cutout Diameter

121 mm

Total Depth

78 mm

Flange and Gasket Thickness

6 mm

Gross Weight

1.85 kg

Shipping Weight

2.05 kg

Shipping Box

170×170×140 mm
