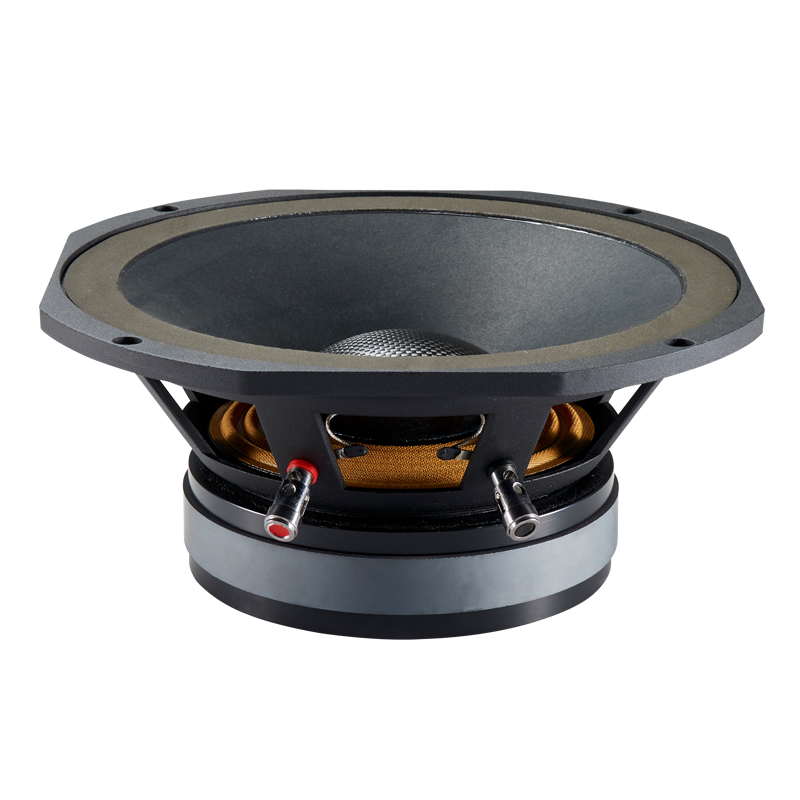

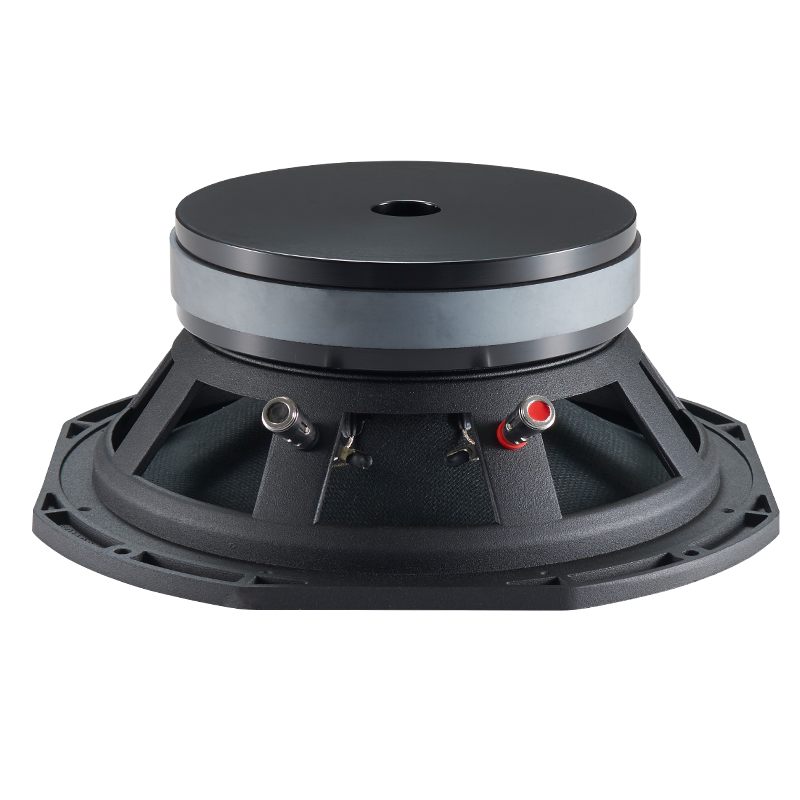

GF10MD65

⌀ 10 inch     NEO
MIDRANGE
Nom. Impedance: 16Ω
Voice Coil ⌀: 65mm
Continuous Program: 600W
Sensitivity: 100dB
Availability:
Inquire Add to Basket

Nominal Diameter

10'' / 260 mm

Nominal Impedance

16 Ω

Minimum Impedance

11 Ω

Nominal Power Handling AES

300 W

Continuous Power Handling

600 W

Sensitivity 1W/1m²

100 dB

Frequency Range

95-5K Hz

Voice Coil Diameter

65 mm

Winding Material

Aluminum


F0

95.3 Hz

Re

10.1 Ω

Qes

0.38

Qms

3.26

Qts

0.37

Vas

33.25 dm³

Sd

415 cm²

Xmax

±2 mm

Xvar

±2 mm

Mms

20.19 g

Bl

16.55 T.m

Le

1.32 mH


Overall Diameter

283 mm

Bolt Circle Diameter

mm

Baffle Cutout Diameter

230 mm

Total Depth

110 mm

Flange and Gasket Thickness

3 mm

Air Volume Occupied By Driver

dm³

Net Weight

5.9 kg

Shipping Weight

6.4 kg

Shipping Box

280×280×160 mm
