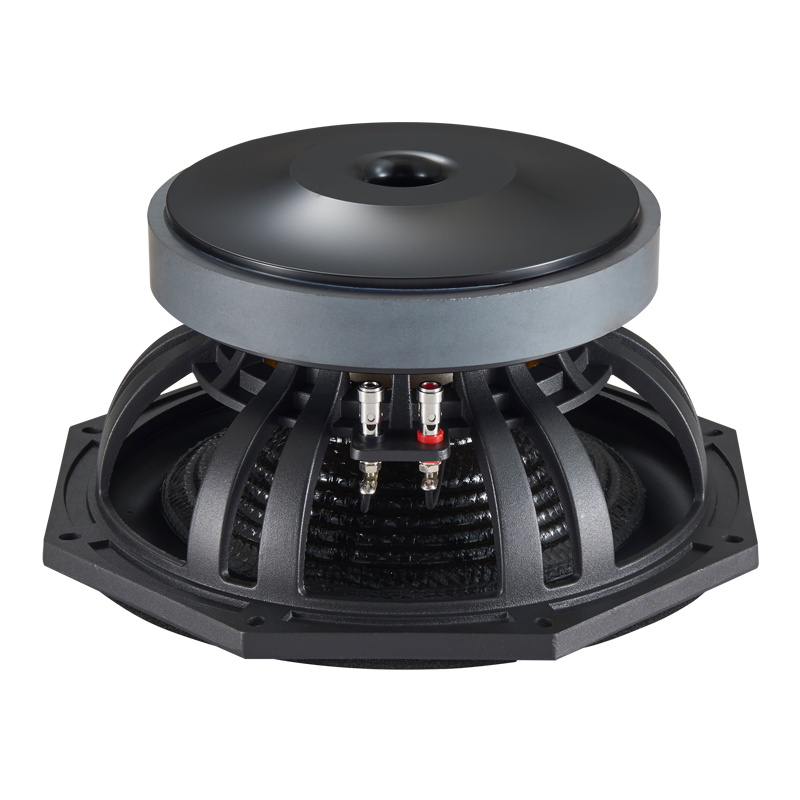

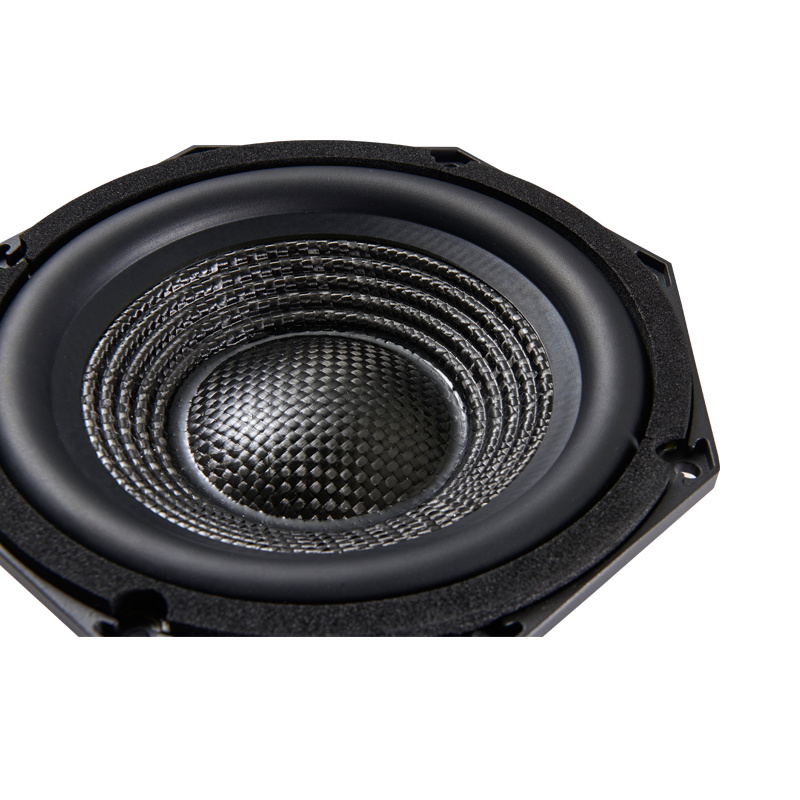

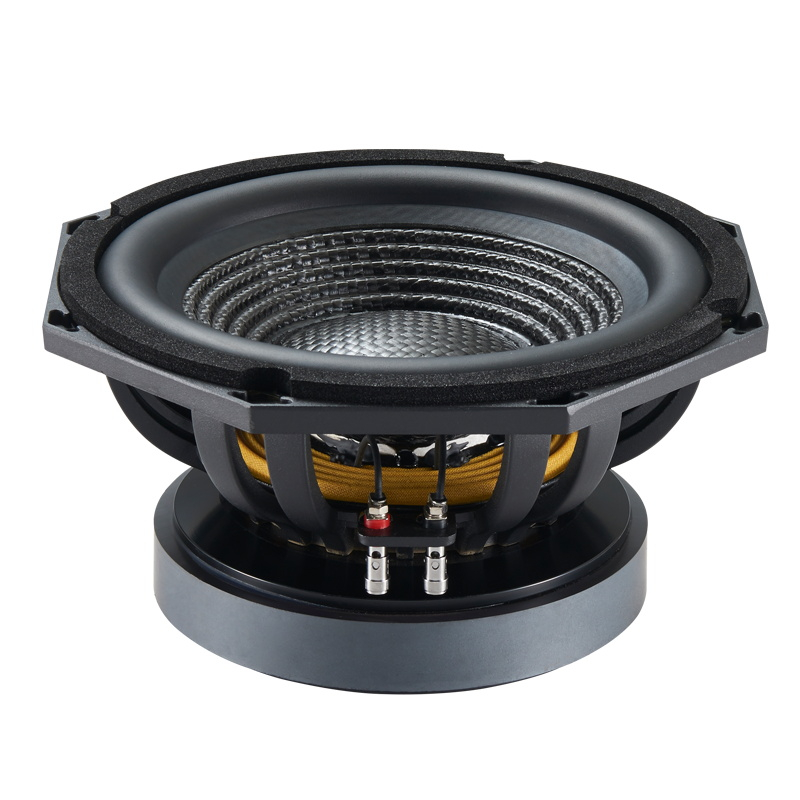

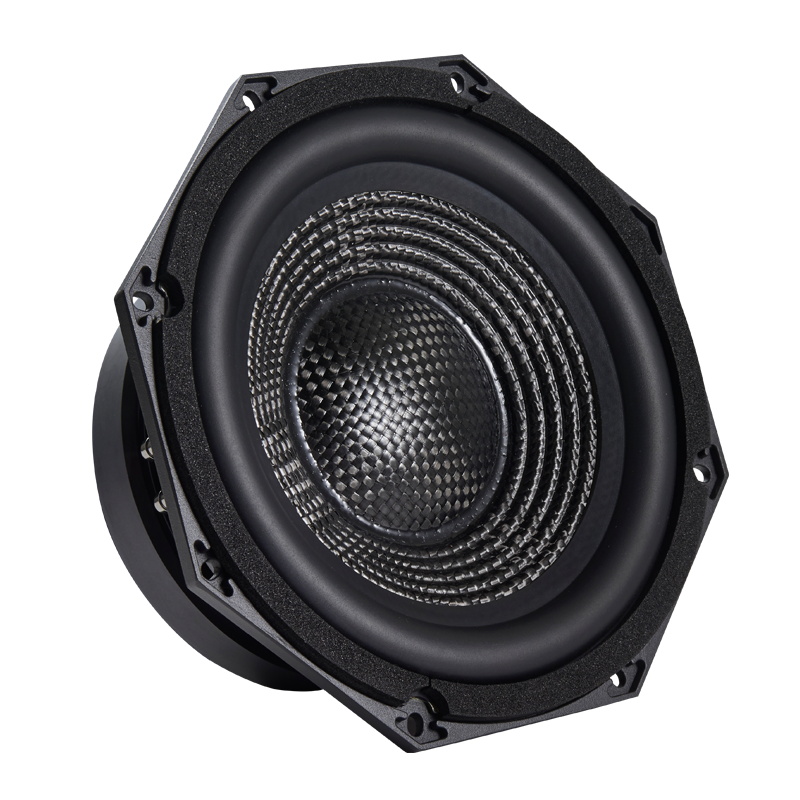

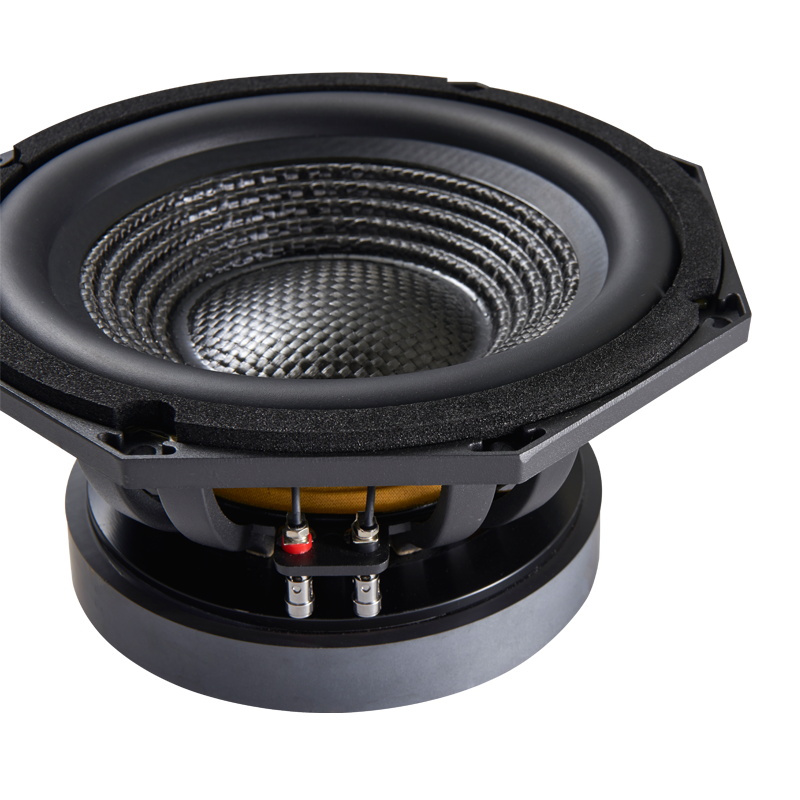

GF10BS75

⌀ 10 inch     Ferrite
Nom. Impedance: 8Ω
Voice Coil ⌀: 75mm
Continuous Program: 800W
Sensitivity: 91dB
Availability:
Inquire Add to Basket

Nominal Diameter

10'' / 260 mm

Nominal Impedance

8 Ω

Minimum Impedance

5.6 Ω

Nominal Power Handling AES

400 W

Continuous Power Handling

800 W

Sensitivity 1W/1m²

91 dB

Frequency Range

30-4K Hz

Voice Coil Diameter

75 mm

Winding Material

Copper


F0

59.25 Hz

Re

11.2 Ω

Qes

0.56

Qms

3.53

Qts

0.48

Vas

14.89 dm³

Sd

0.034 cm²

Xmax

±3 mm

Xvar

±5 mm

Mms

80.29 g

BL

24.45 T.m

Le

0.35 mH


Overall Diameter

263 mm

Bolt Circle Diameter

266 mm

Baffle Cutout Diameter

231 mm

Total Depth

136 mm

Flange and Gasket Thickness

9 mm

Air Volume Occupied By Driver

0.5 dm³

Net Weight

7.25 kg

Shipping Weight

7.75 kg

Shipping Box

280×280×160 mm
