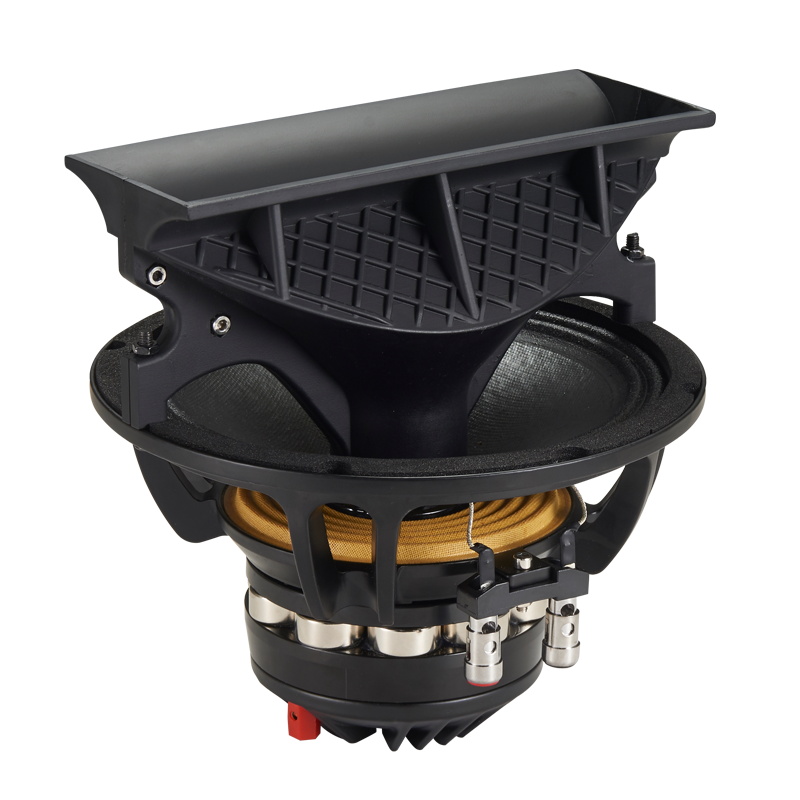

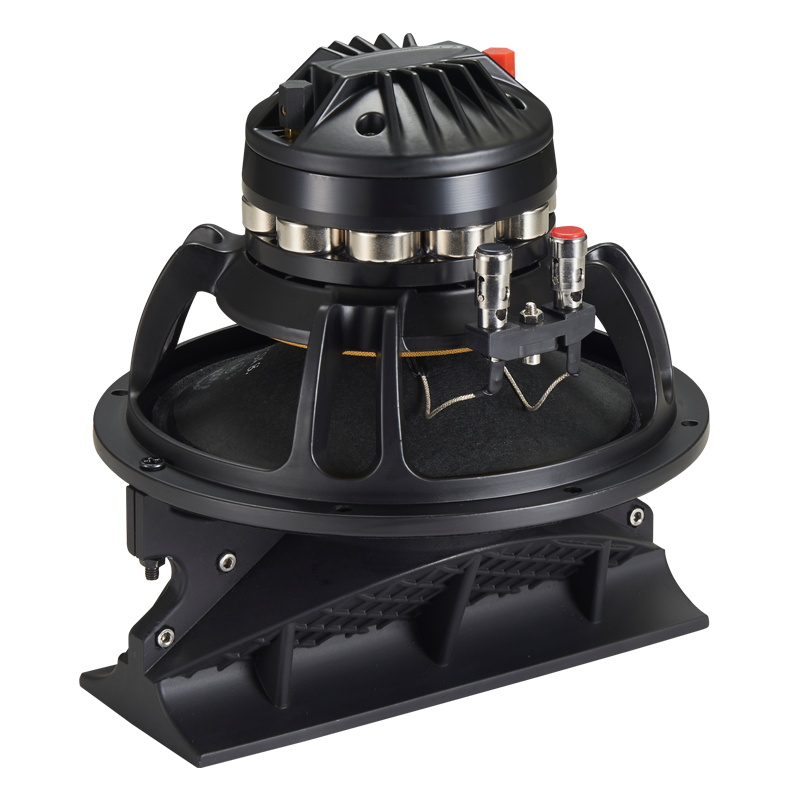

GCN8H44XH

⌀ 8 inch NEO
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 51mm(LF) 44mm(HF)
Continuous Program: 400W(LF) 80W(HF)
Sensitivity: 93dB(LF) 98dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

8'' / 210 mm

Power Handling Nominal.(AES)

200W (LF) 40W (HF)

Continuous Program

400W(LF) 80W(HF)

Minimum Impedance

5.6 Ω(LF) 6.0 (HF)

Voice Coil Diameter(mm)

51mm(LF) 44mm(HF)

Magnet Material

Neodymium Ring

Sensitivity 1W/1m

93dB(LF) 98dB(HF)

Frequency Range

65-18K Hz

Winding Material(LF&HF)

Aluminum

Former Material

Kapton

Diaphragm Material

Polyester

Recommended Crossover

1.8 kHz
