GCN8H44H

⌀ 8 inch NEO
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 65mm(LF) 40mm(HF)
Continuous Program: 600W(LF) 80W(HF)
Sensitivity: 93.5dB(LF) 98dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

8'' / 210 mm

Power Handling Nominal.(AES)

300W(LF) 40W(HF)

Continuous Program

600W(LF) 80W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter(mm)

65mm(LF) 40mm(HF)

Magnet Material

Neodymium Ring

Sensitivity 1W/1m

93.5dB(LF) 98dB(HF)

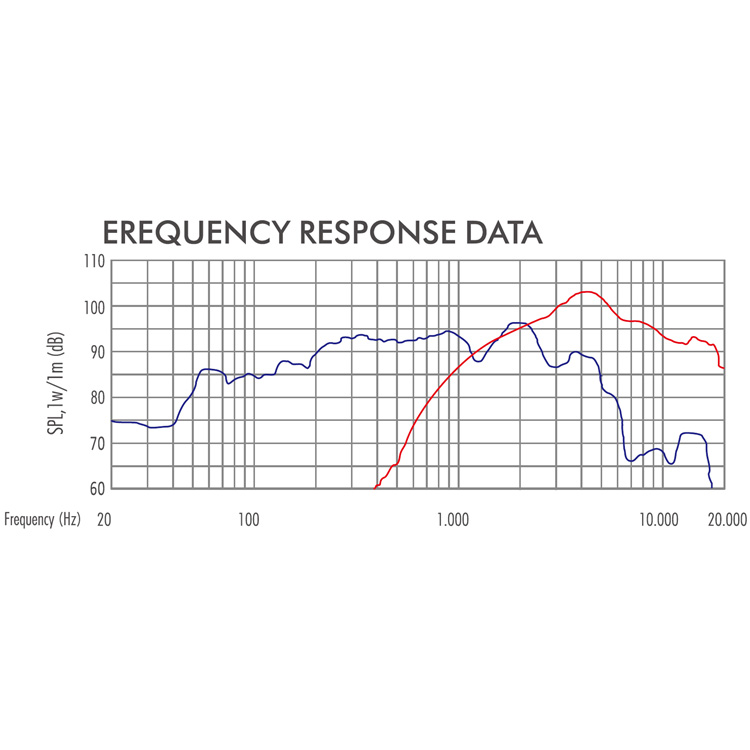

Frequency Range

76 - 20K Hz

Winding Material(LF)

Copper

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Connector Type

Faston
