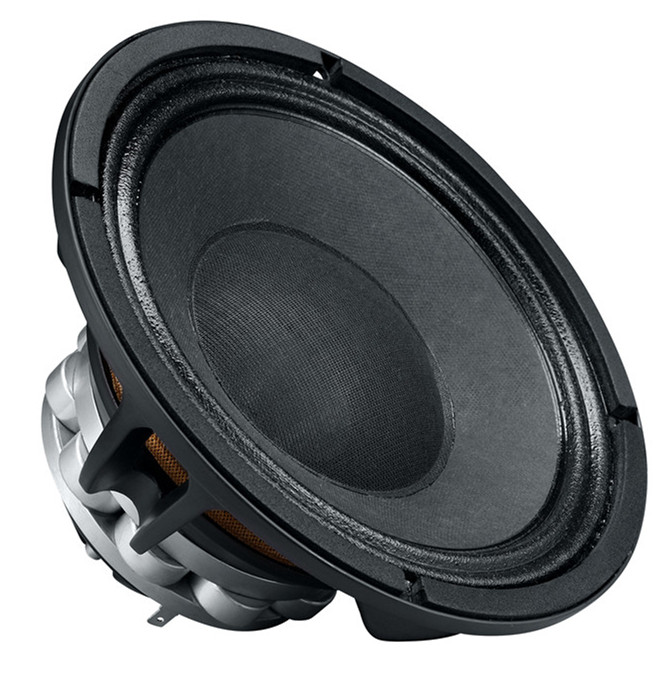

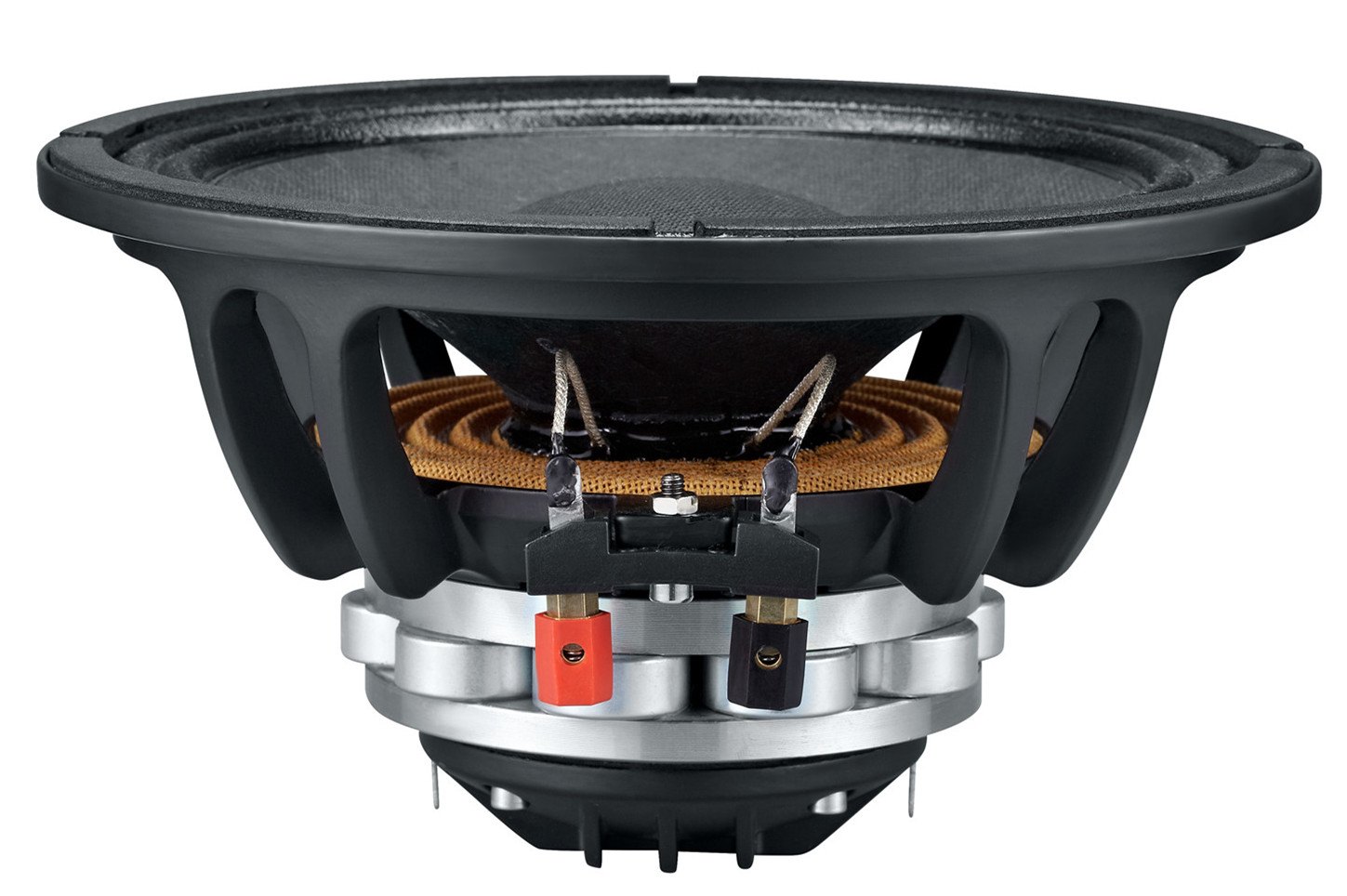

GCN8H34

⌀ 8 inch NEO

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 52mm(LF) 34mm(HF)
Continuous Program: 400W(LF) 60W(HF)

Sensitivity: 93dB(LF) 96dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

8'' / 210 mm

Power Handling Nominal.(AES)

200W (LF) 30W (HF)

Continuous Program

400W(LF) 60W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

52mm(LF) 34mm(HF)

Magnet Material

Neodymium

Sensitivity 1W/1m

93dB(LF) 96dB(HF)

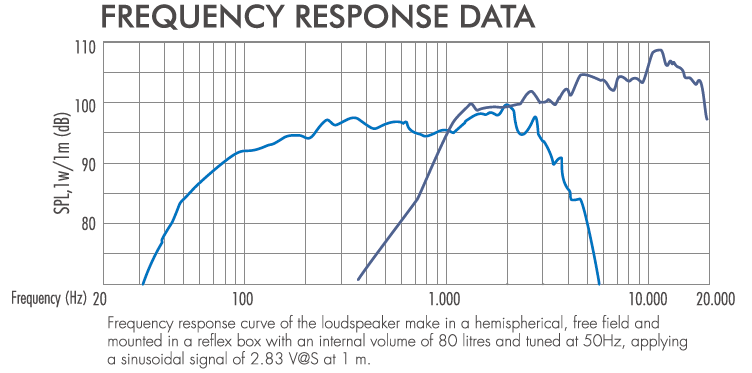

Frequency Range

80 - 20KHz

Winding Material(LF)

Copper

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Connector Type

Faston
