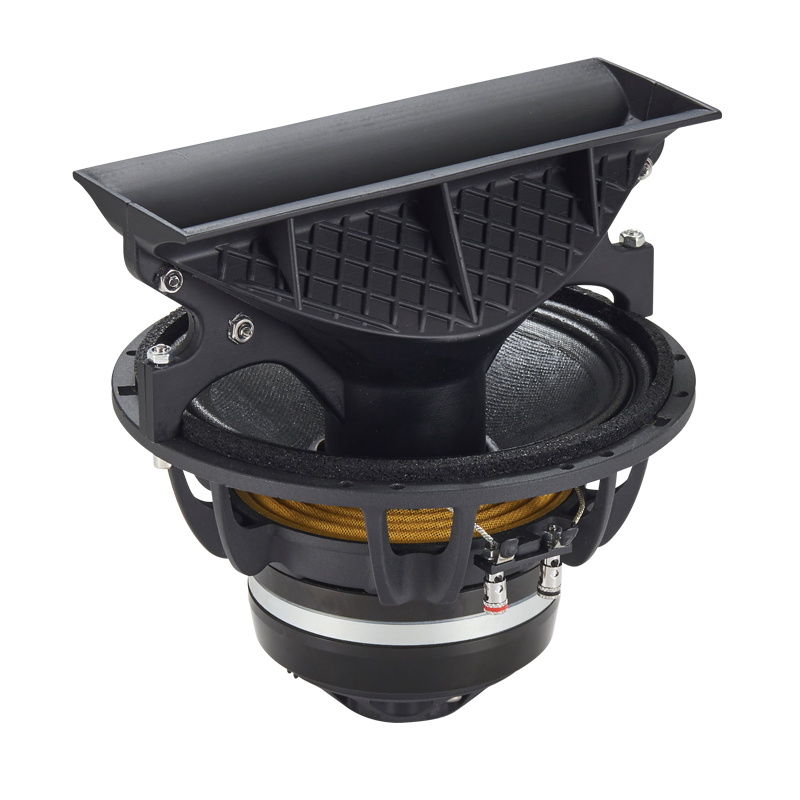

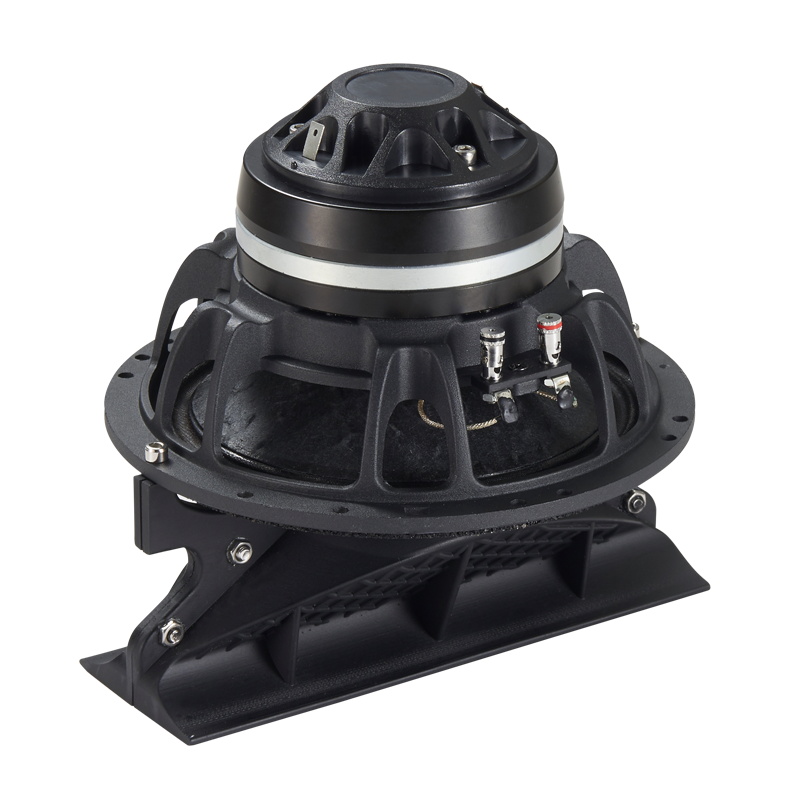

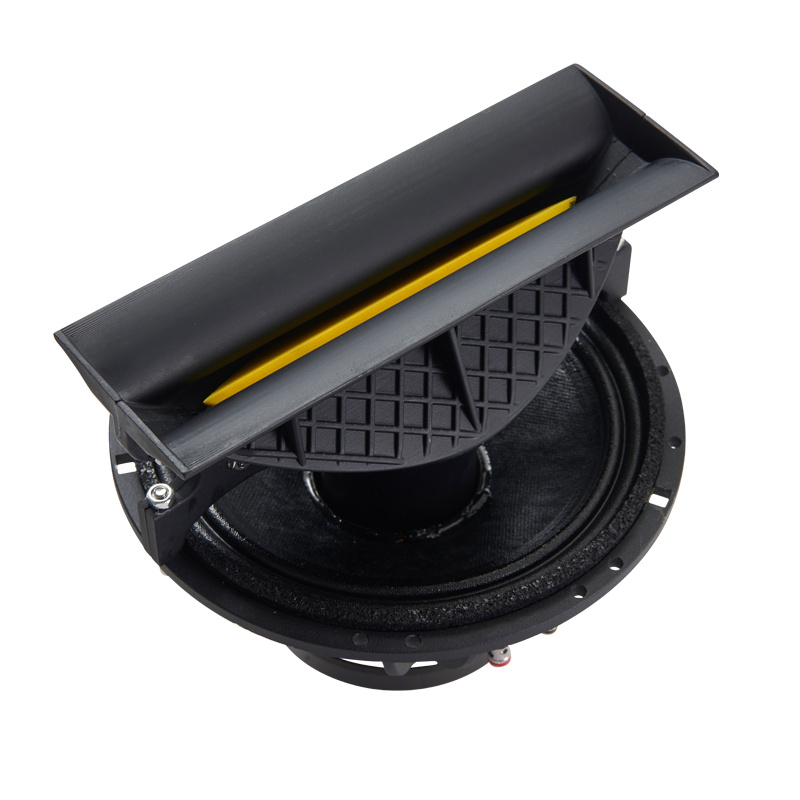

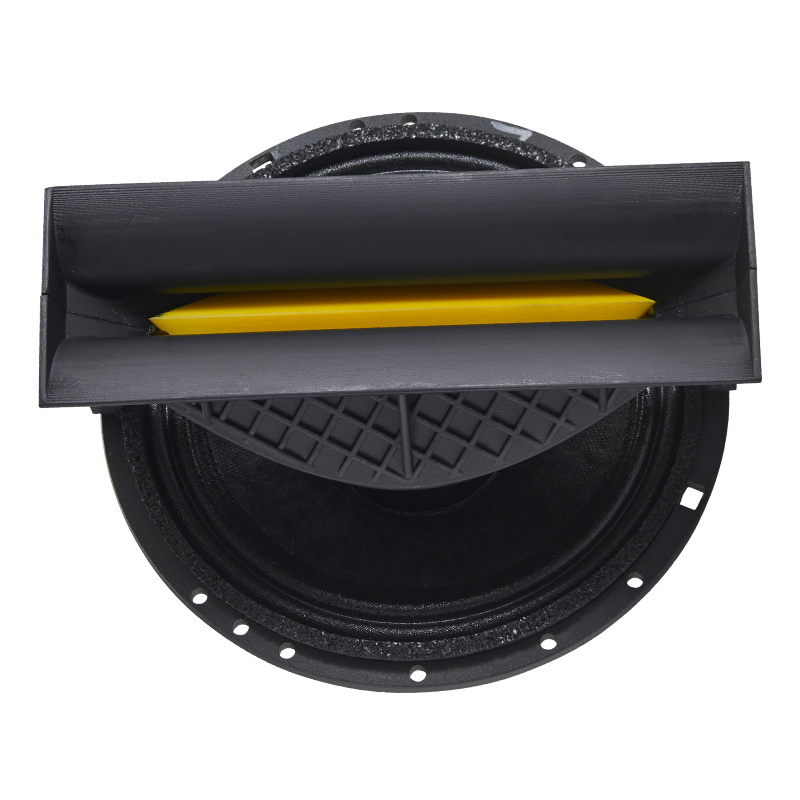

GCN6H34XH

⌀ 6.5 inch NEO

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 51mm(LF) 34mm(HF)

Continuous Program: 400W(LF) 60W(HF)

Sensitivity: 92dB(LF) 97dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

6.5'' / 170 mm

Power Handling Nominal (AES)

200W(LF) 30W(HF)

Continuous Program

400W(LF) 60W(HF)

Minimum Impedance

5.6Ω(LF) 6Ω(HF)

Voice Coil Diameter

51mm(LF) 34mm(HF)

Magnet Material

Neodymium Ring

Sensitivity 1W/1m

92dB(LF) 97dB(HF)

Frequency Range

98-18000 Hz

Winding Material

Copper(LF) Aluminum(HF)

Former Material(LF)

Kapton

Diaphragm Material

Polyester

Recommended Crossover

2K Hz
