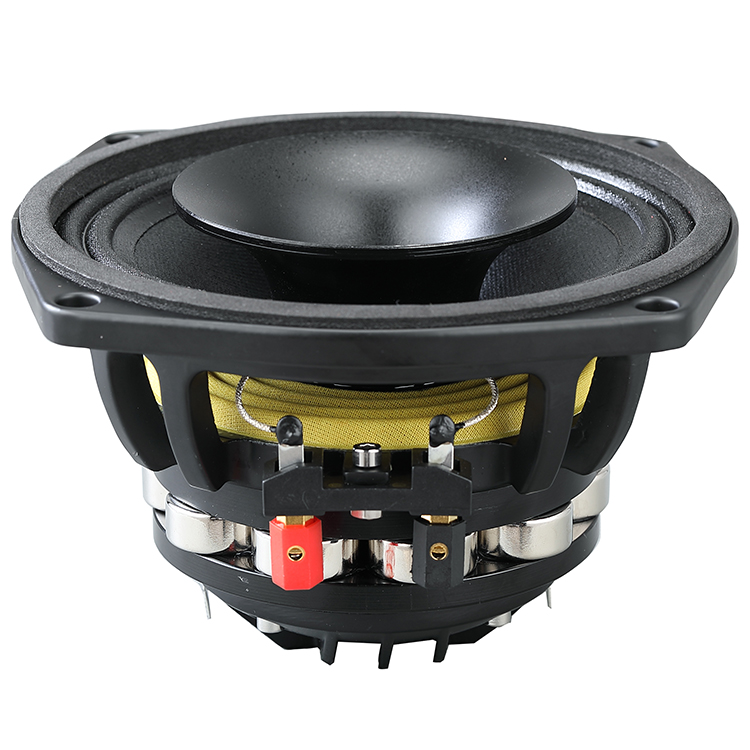

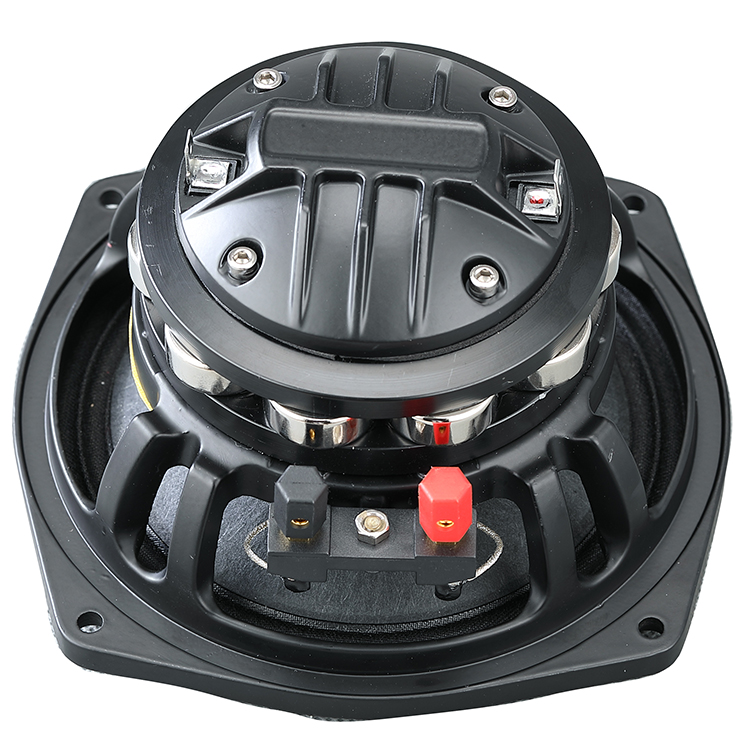

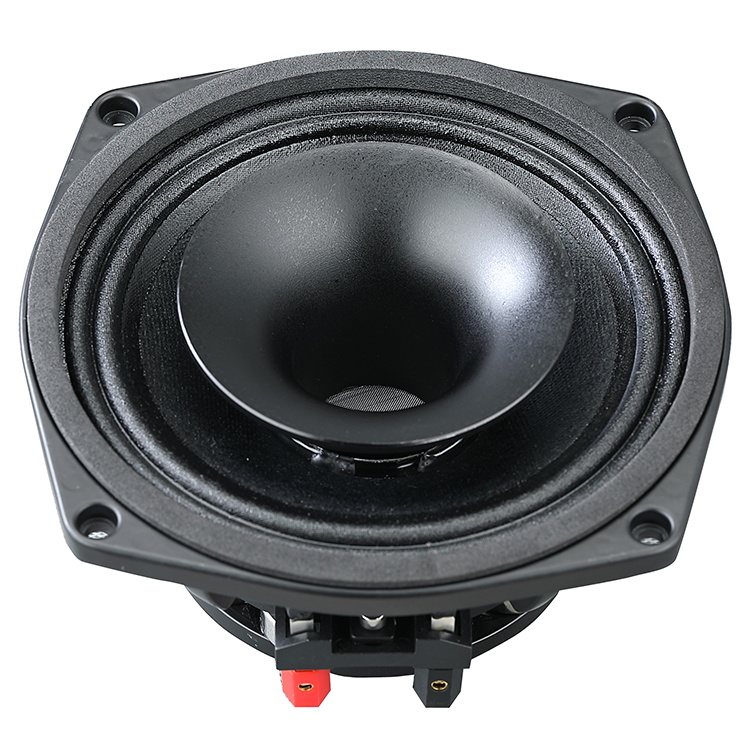

GCN6H34H

⌀ 6.5 inch NEO
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 50mm(LF) 34mm(HF)
Continuous Program: 400(LF) 60W(HF)
Sensitivity: 88dB(LF) 98dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

6.5'' / 170 mm

Power Handling Nominal.(AES)

200W(LF) 30W(HF)

Continuous Program

400W(LF) 60W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter(mm)

50mm LF- 34mm HF

Magnet Material

Neodymium

Sensitivity 1W/1m(dB)

88dB LF-98dB HF

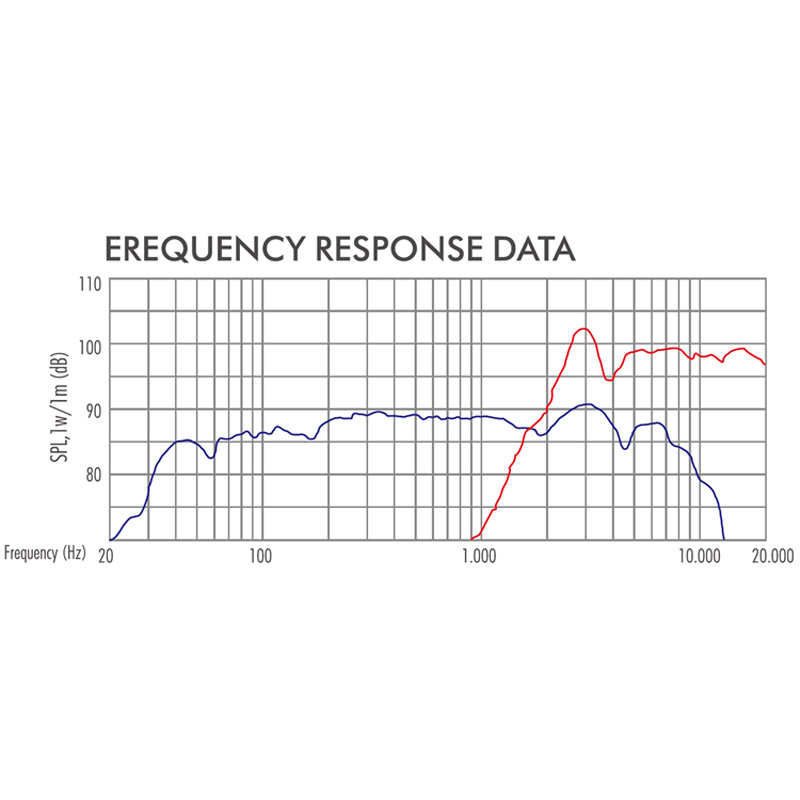

Frequency Range

72Hz-20KHz

Winding Material(LF)

Copper

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Connector Type

Faston
