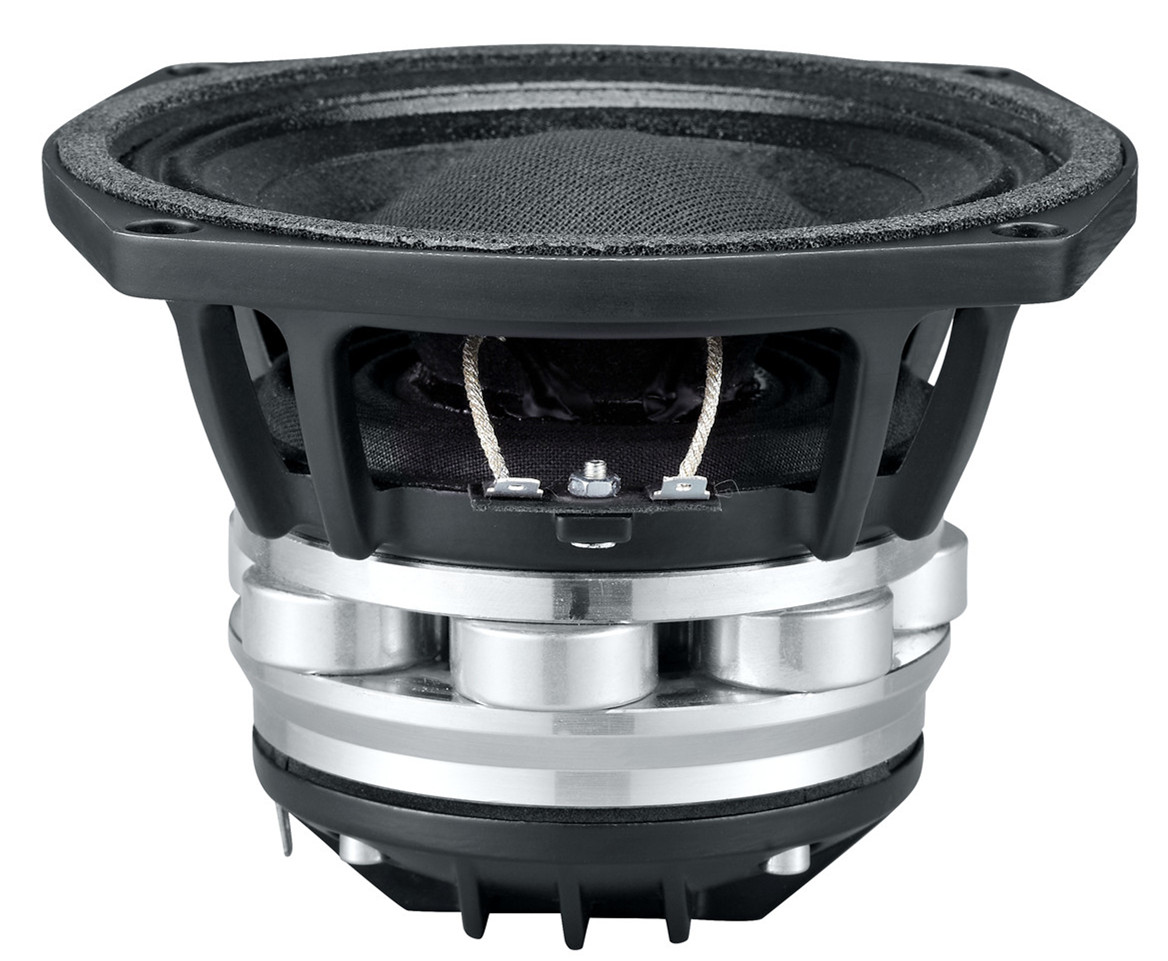

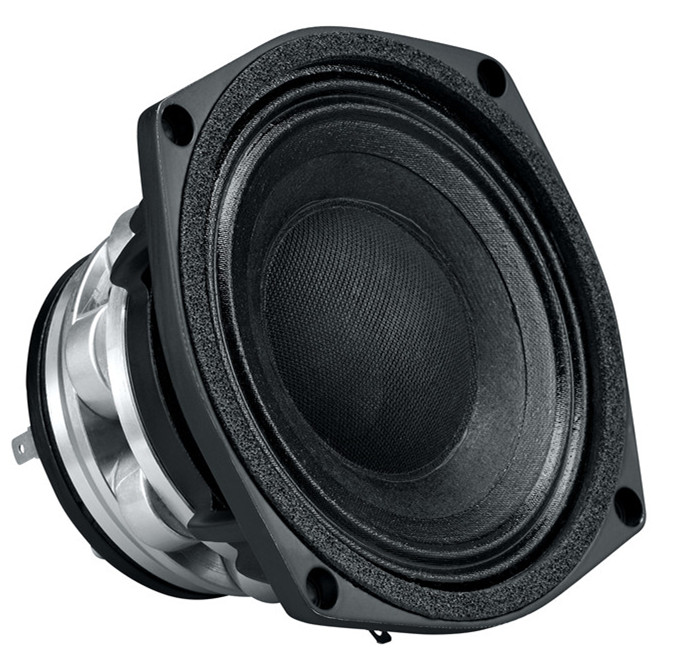

GCN5H34

⌀ 5 inch NEO

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 38mm(LF) 34mm(HF)

Continuous Program: 200W(LF) 60W(HF)

Sensitivity: 91dB(LF) 96dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

5'' / 127 mm

Power Handling Nominal (AES)

100W(LF) 30W(HF)

Continuous Program

200W(LF) 60W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

38mm(LF) 34mm(HF)

Magnet Material

Neodymium

Sensitivity 1W/1m

91dB(LF) 96dB(HF)

Frequency Range

130 Hz-20KHz

Winding Material(LF)

Copper

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Connector Type

Faston
