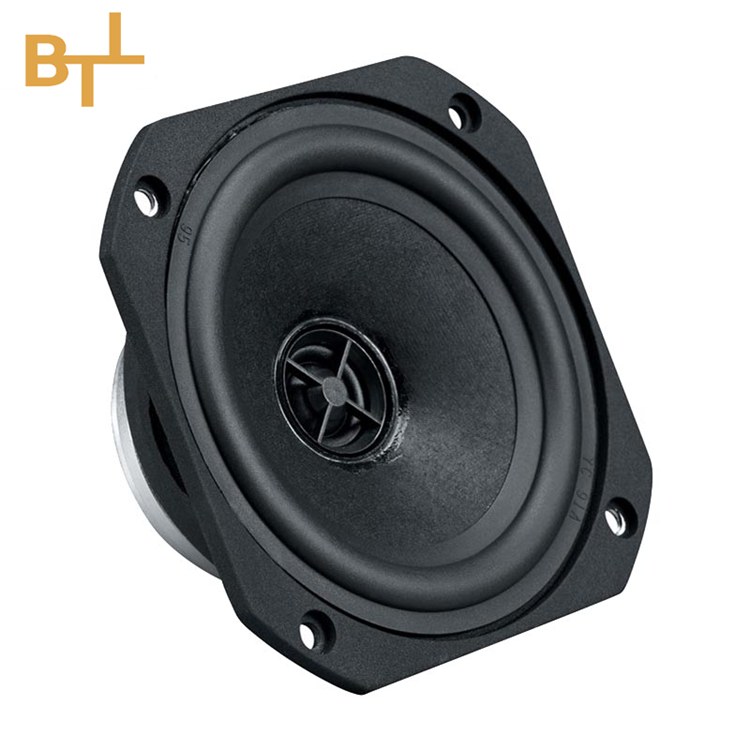

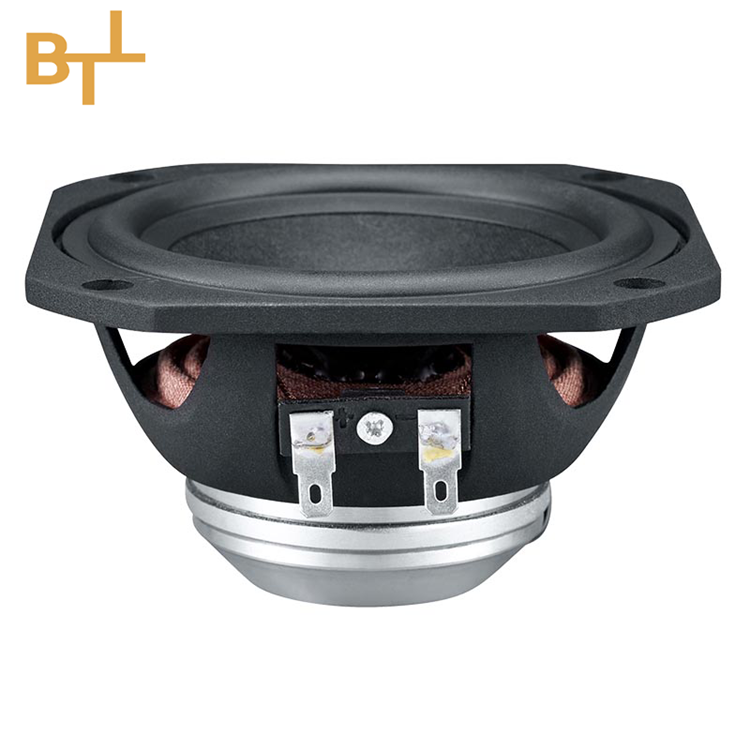

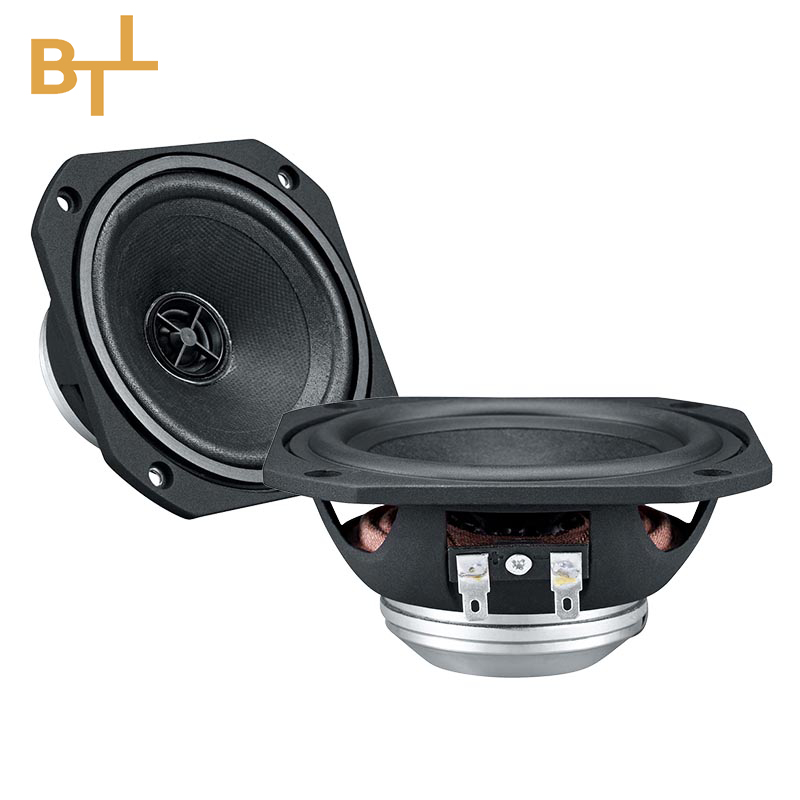

GCN4H15

⌀ 4 inch NEO

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 25mm(LF) 13mm(HF)

Continuous Program: 60(LF) 10(HF)

Sensitivity: 93dB(LF) 93dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

4'' / 100 mm

Power Handling Nominal (AES)

30(LF) 5(HF)

Continuous Program

60(LF) 10(HF)

Cone Material

Paper(LF) Polyester(HF)

Voice Coil Diameter

25mm(LF) 13mm(HF)

Magnet Material

Neodymium

Sensitivity 1W/1m

93 dB (LF) 93 dB (HF)

Frequency Range

120 - 18K Hz

Winding Material

Copper(LF) Aluminium(HF)

Former Material(LF)

Kapton

Basket type

Aluminium Die-Cast

Connector Type

Faston
