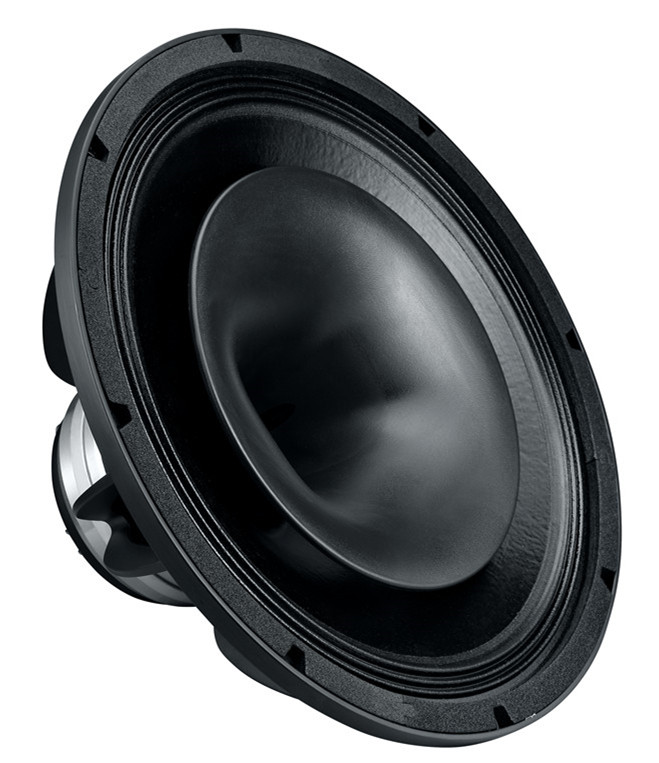

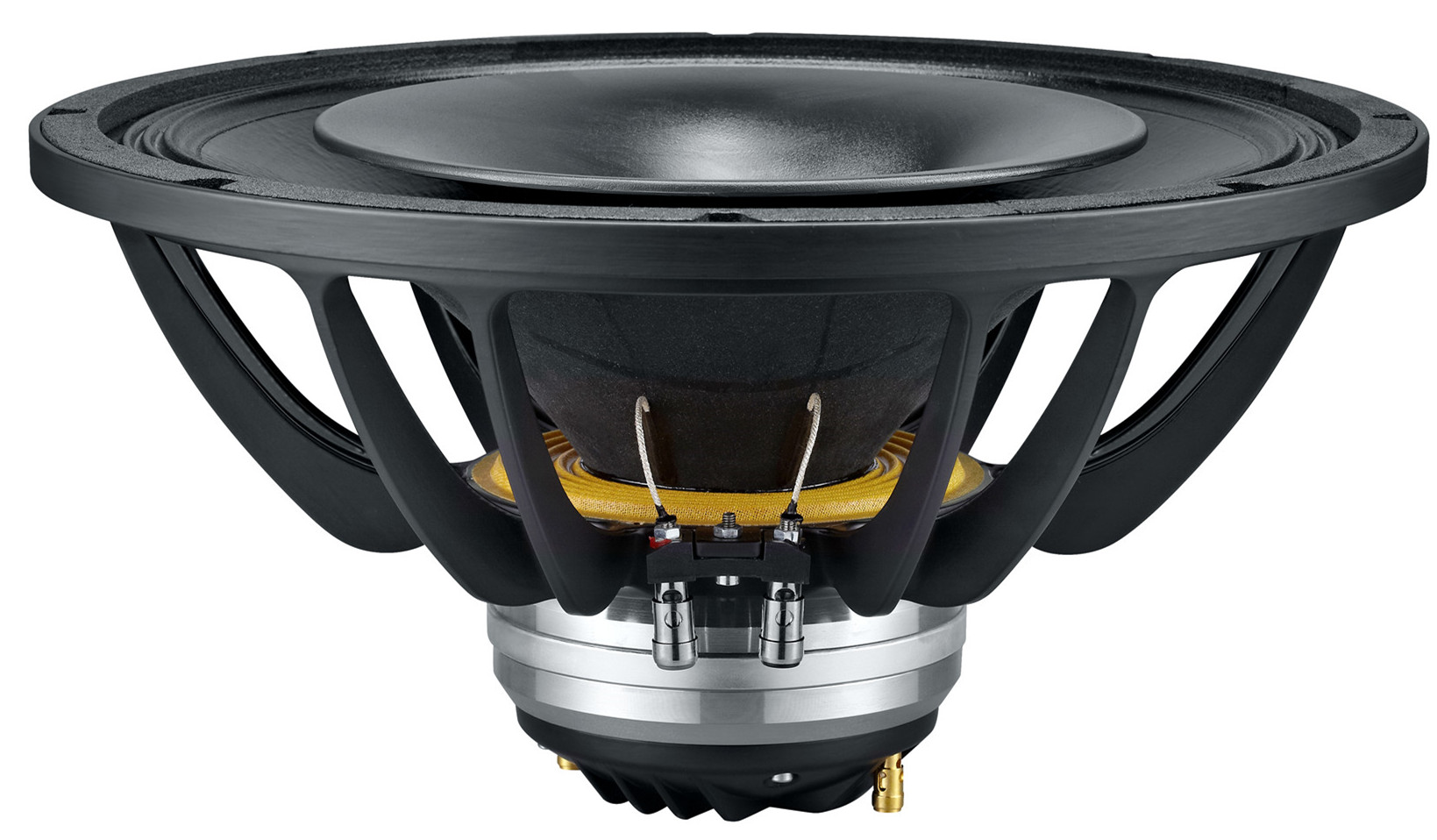

GCN15H75H

⌀ 15 inch NEO

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 76mm(LF) 75mm(HF)

Continuous Program: 800W(LF) 160W(HF)

Sensitivity: 98dB(LF) 105dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

15'' / 380 mm

Power Handling Nominal (AES)

400W (LF) 80W (HF)

Continuous Program

800W(LF) 160W(HF)

Basket type

Aluminum Die-Cast

Voice Coil Diameter

76mm(LF) 75mm(HF)

Magnet Material

Neodymium

Sensitivity 1W/1m

98dB(LF) 105dB(HF)

Frequency Range

40-16K Hz

Winding Material(LF)

Cooper

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Connector Type

Faston
