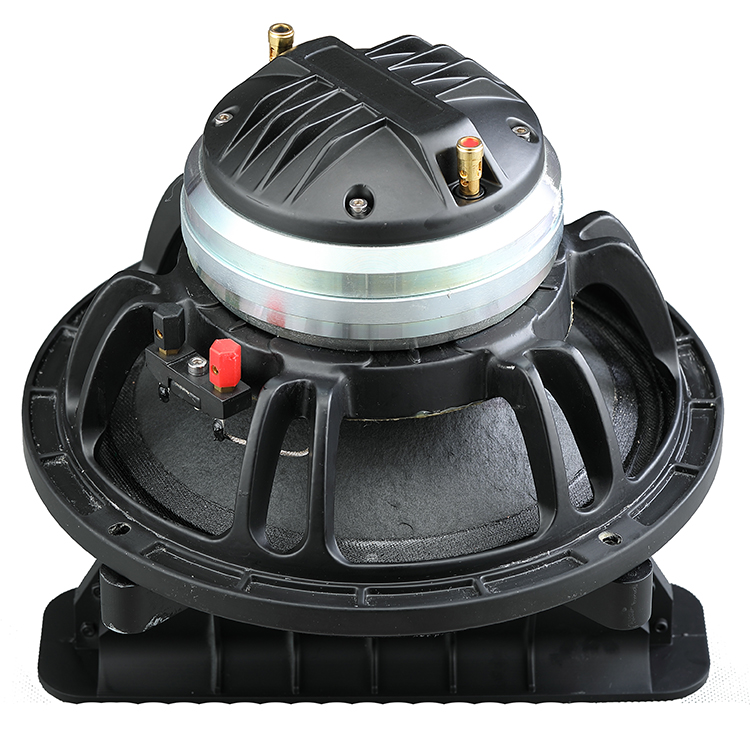

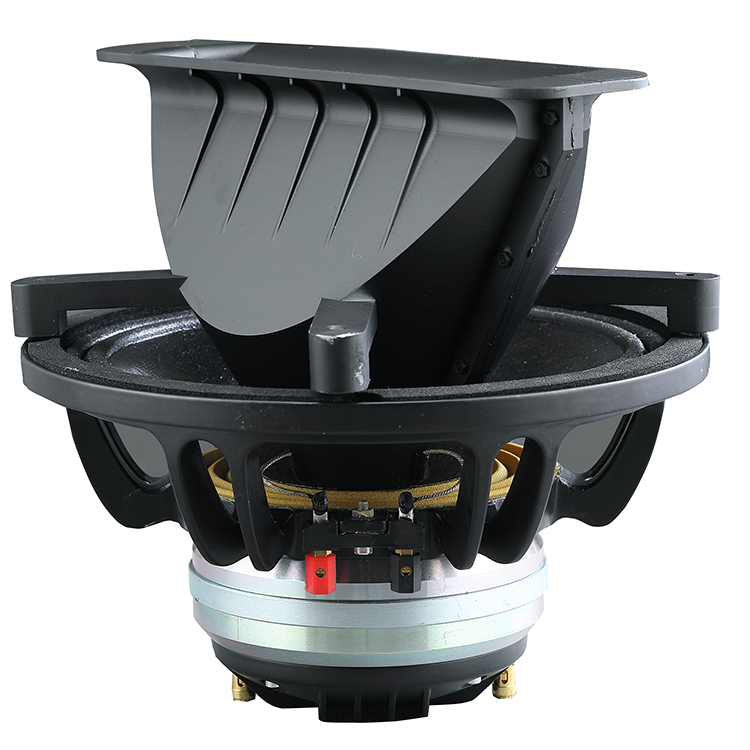

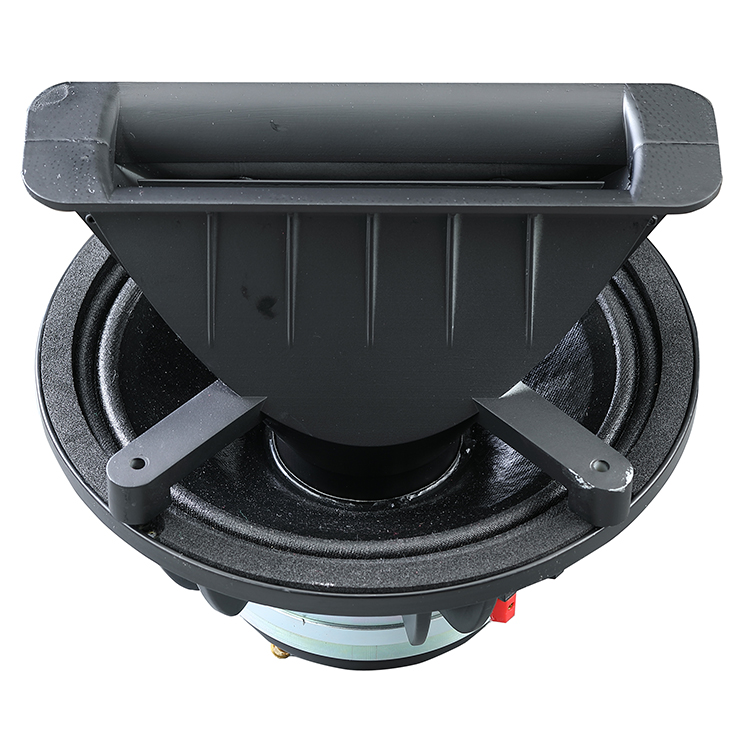

GCN10H75XH

⌀ 10 inch NEO
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 75mm(LF) 75mm(HF)
Continuous Program: 800W(LF) 160W(HF)
Sensitivity: 97dB(LF) 108dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

10'' / 260 mm

Power Handling Nominal(AES)

400W (LF) 80W (HF)

Continuous Program

800W(LF) 160W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

75mm(LF) 75mm(HF)

Magnet Material

Neodymium

Sensitivity 1W/1m

97 dB(LF) 108 dB(HF)

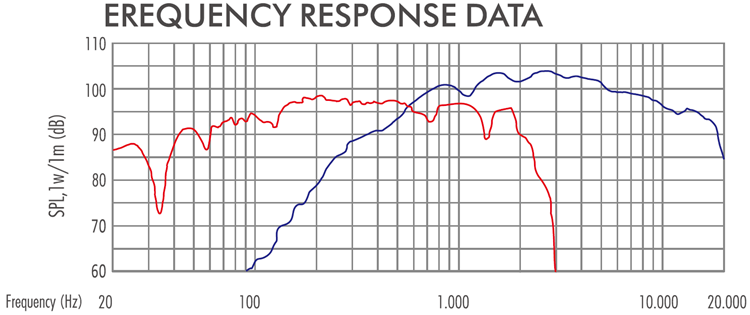

Frequency Range

67-18K Hz

Winding Material (LF）

Copper

Former Material

Fiberglass(LF) Kapton (HF)

Cone Material

Paper

Connector Type

Faston
