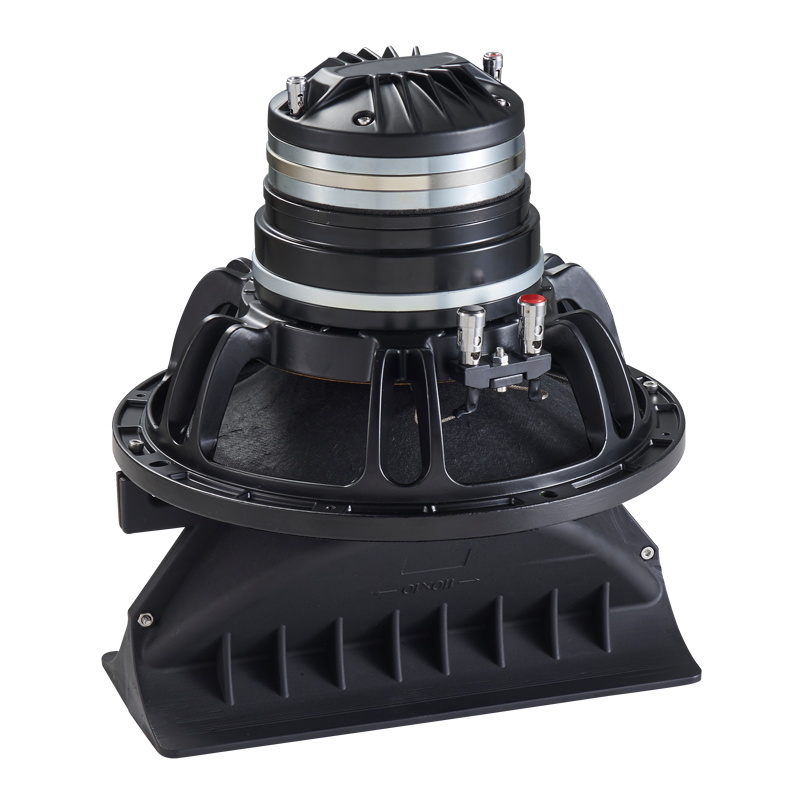

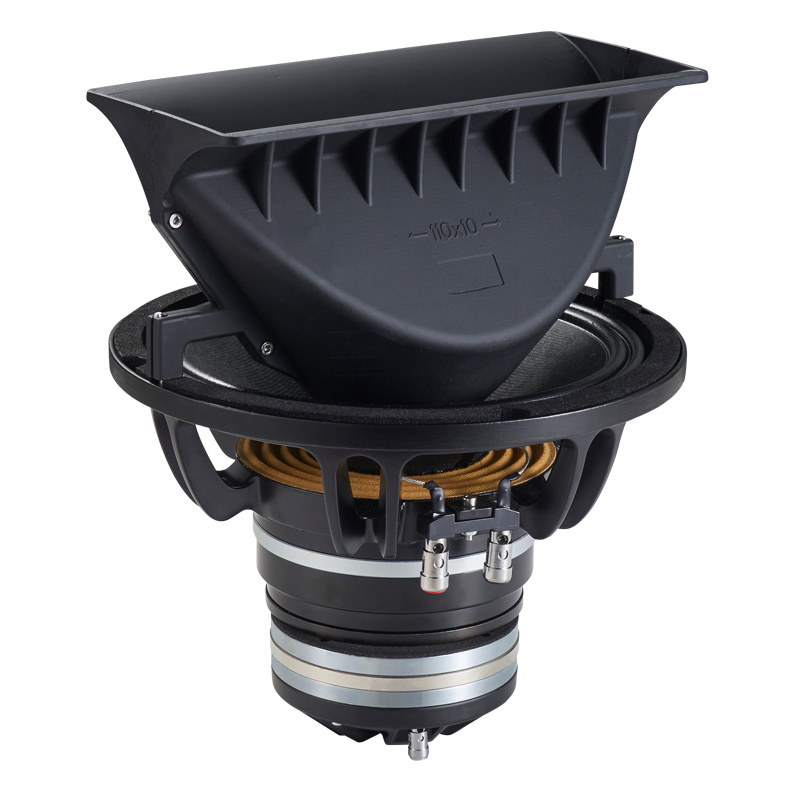

GCN10H75XD

⌀ 10 inch NEO

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 75mm(LF) 75mm(HF)
Continuous Program: 800W(LF) 160W(HF)

Sensitivity: 97dB(LF) 108dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

10'' / 260 mm

Power Handling Nominal.(AES)

400W (LF) 80W (HF)

Continuous Program

800W(LF) 160W(HF)

Minimum Impedance

5.3Ω(LF) 6Ω(HF)

Voice Coil Diameter

75mm(LF) 75mm(HF)

Magnet Material

Neodymium Ring

Sensitivity 1W/1m

97dB(LF) 108dB(HF)

Frequency Range

65-18K Hz

Winding Material(LF&HF)

Aluminum

Former Material(LF)

Kapton

Diaphragm Material(HF)

Titanium

Recommended Crossover

1.5K Hz
