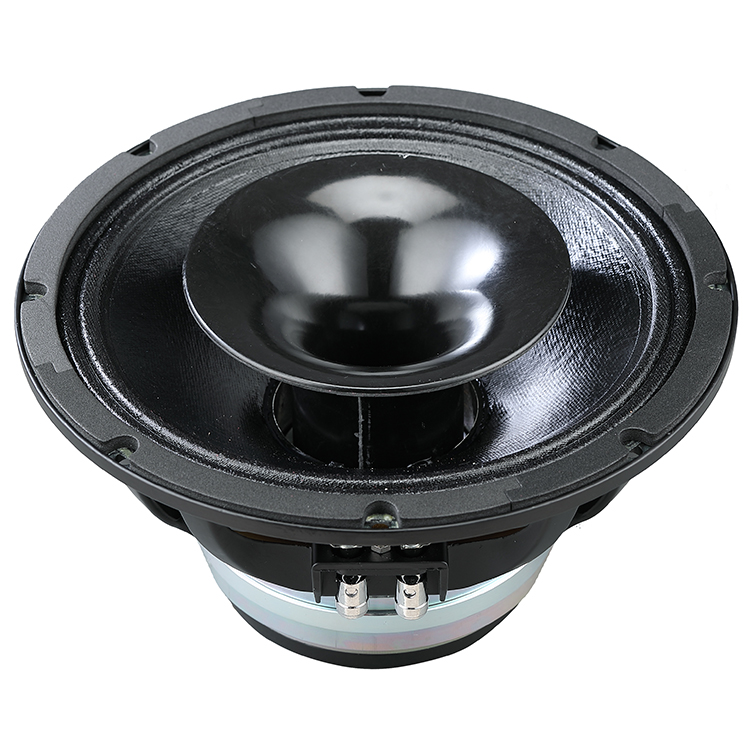

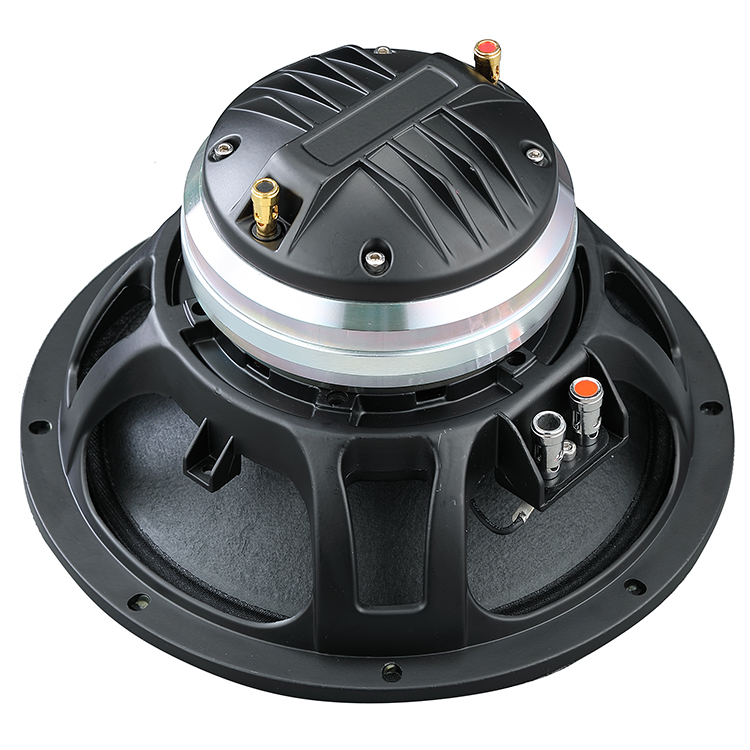

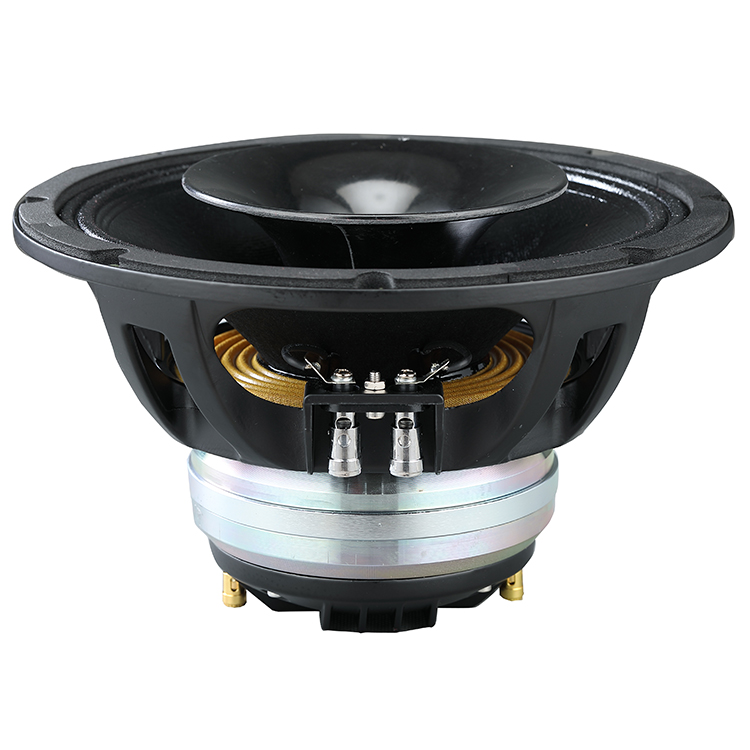

GCN10H75H

⌀ 10 inch NEO
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 75mm(LF) 75mm(HF)
Continuous Program: 800W(LF) 160W(HF)
Sensitivity: 96dB(LF) 110dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

10'' / 260 mm

Power Handling Nominal.(AES)

400W(LF) 80W(HF)

Continuous Program

800W(LF) 160W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

75mm(LF) 75mm(HF)

Magnet Material

Neodymium Ring

Sensitivity 1W/1m

96dB(LF) 110dB(HF)

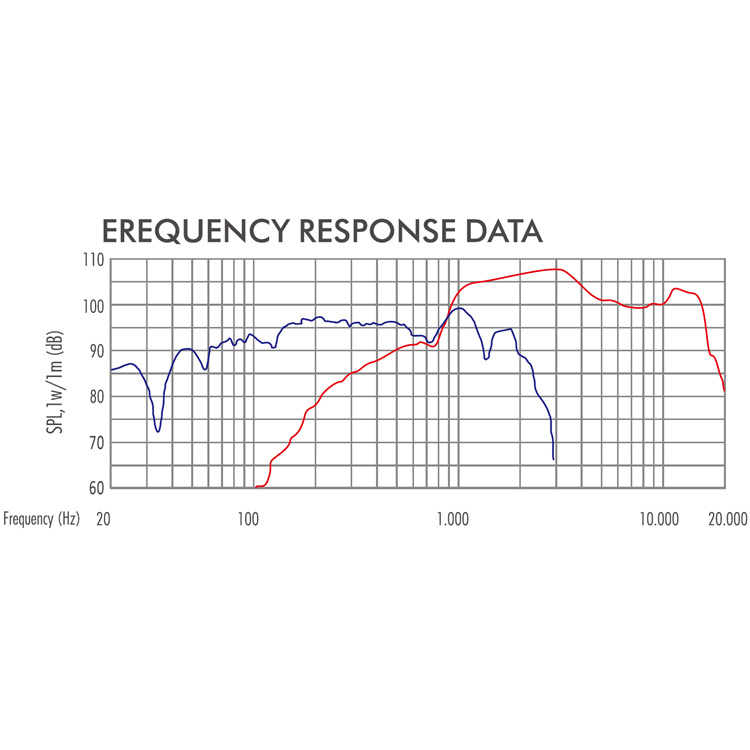

Frequency Range

55-18K Hz

Winding Material(LF)

Copper

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Connector Type

Faston
