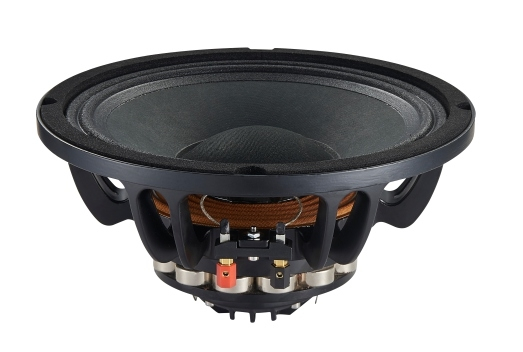

GCN10H44

⌀ 10 inch NEO
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 65mm(LF) 44mm(HF)
Continuous Program: 600W(LF) 80W(HF)
Sensitivity: 97dB(LF) 107dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

10'' / 260 mm

Power Handling Nominal(AES)

300W (LF) 40W (HF)

Continuous Program

600W(LF) 80W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

65mm(LF) 44mm(HF)

Magnet Material

Neodymium

Sensitivity 1W/1m

97 dB(LF) 107 dB(HF)

Frequency Range

60 - 19K Hz

Winding Material (LF）

Copper

Former Material

Fiberglass(LF) Kapton (HF)

Cone Material

Paper

Connector Type

Faston

Ningbo BTL Audio

We are a producer maintaining production bases in Ningbo and Guangzhou, designs and manufactures high-quality PA loudspeakers.
We integrate forward-thinking design, stringent materials, precision testing, and automated production with skilled assembly to guarantee exceptional quality and reliability.
Trusted by top audio brands, we deliver field-proven driver solutions. This enables our clients to save time on sourcing and testing, capture market trends faster, and minimize post-sale issues.
Ultimately, we help partners, ensure superior quality, boost brand image, stand out, and build enduring brand reputations beyond short-term gains.
