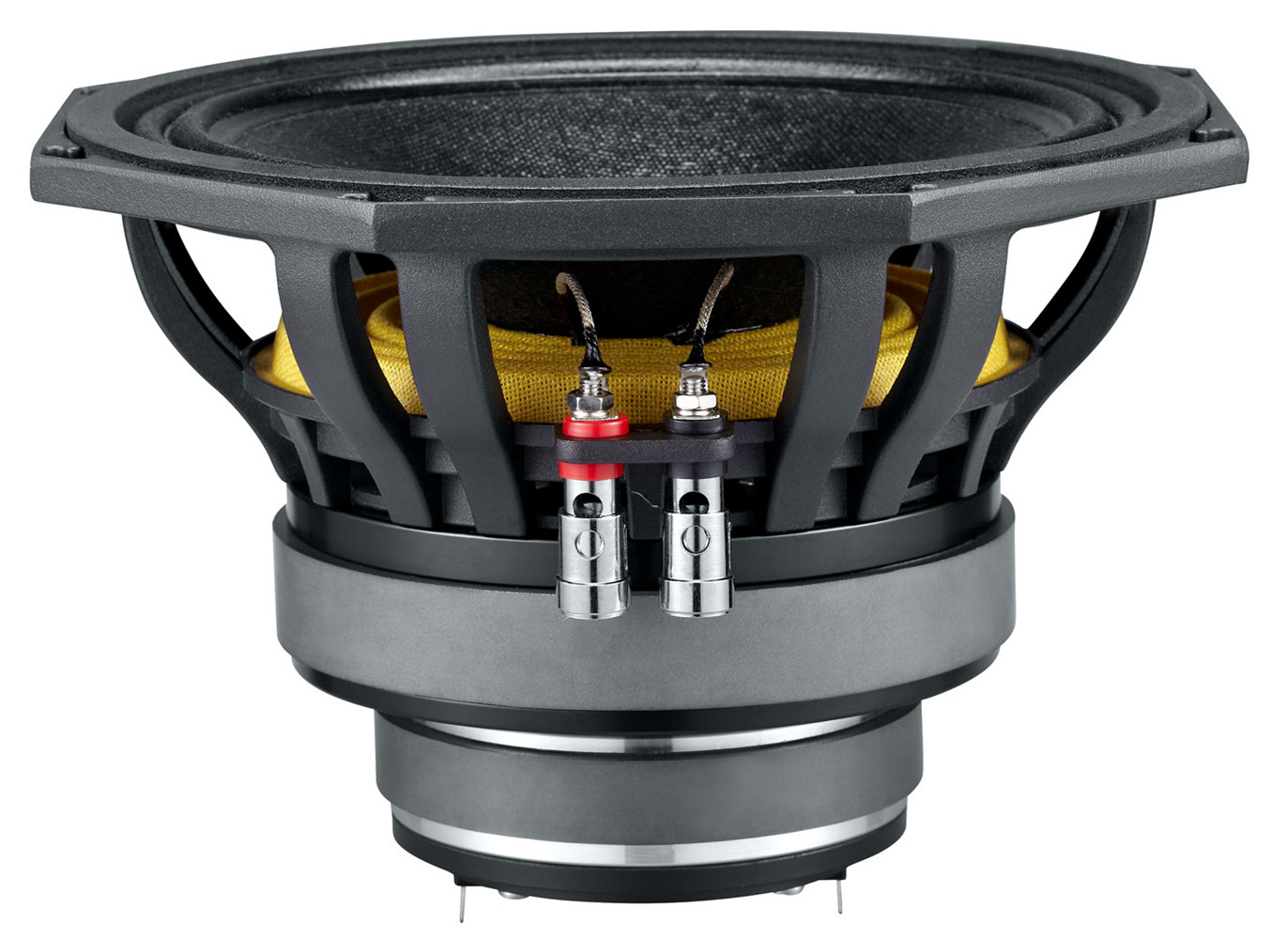

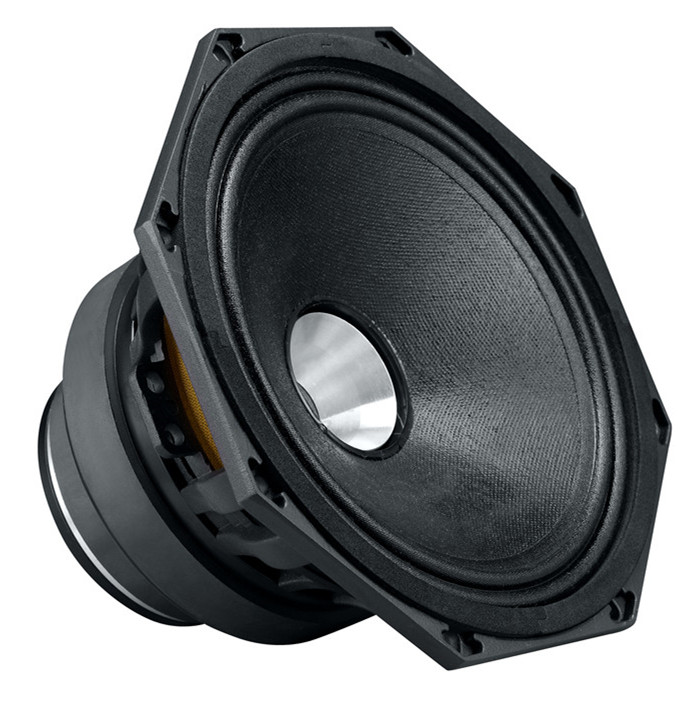

GCF8H34D

⌀ 8 inch Ferrite

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 50mm(LF) 34mm(HF)
Continuous Program: 400W(LF) 60W(HF)

Sensitivity: 95dB(LF) 102dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

8'' / 210 mm

Power Handling Nominal.(AES)

200W (LF) 30W (HF)

Continuous Program

400W(LF) 60W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

50mm(LF) 34mm(HF)

Magnet Material

Ferrite

Sensitivity 1W/1m

95dB(LF) 102dB(HF)

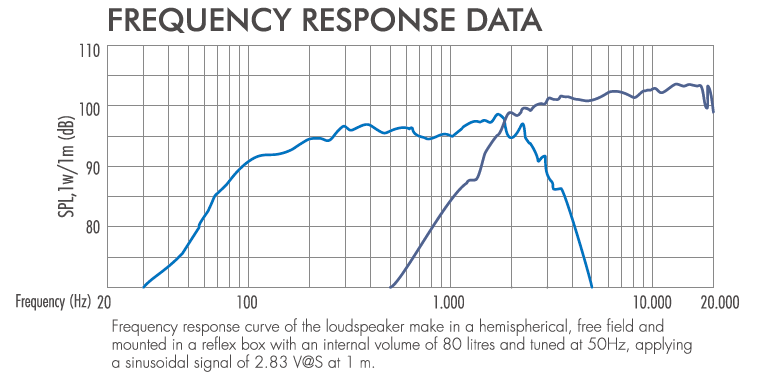

Frequency Range

100 -20K Hz

Winding Material(LF)

Copper

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Connector Type

Faston
