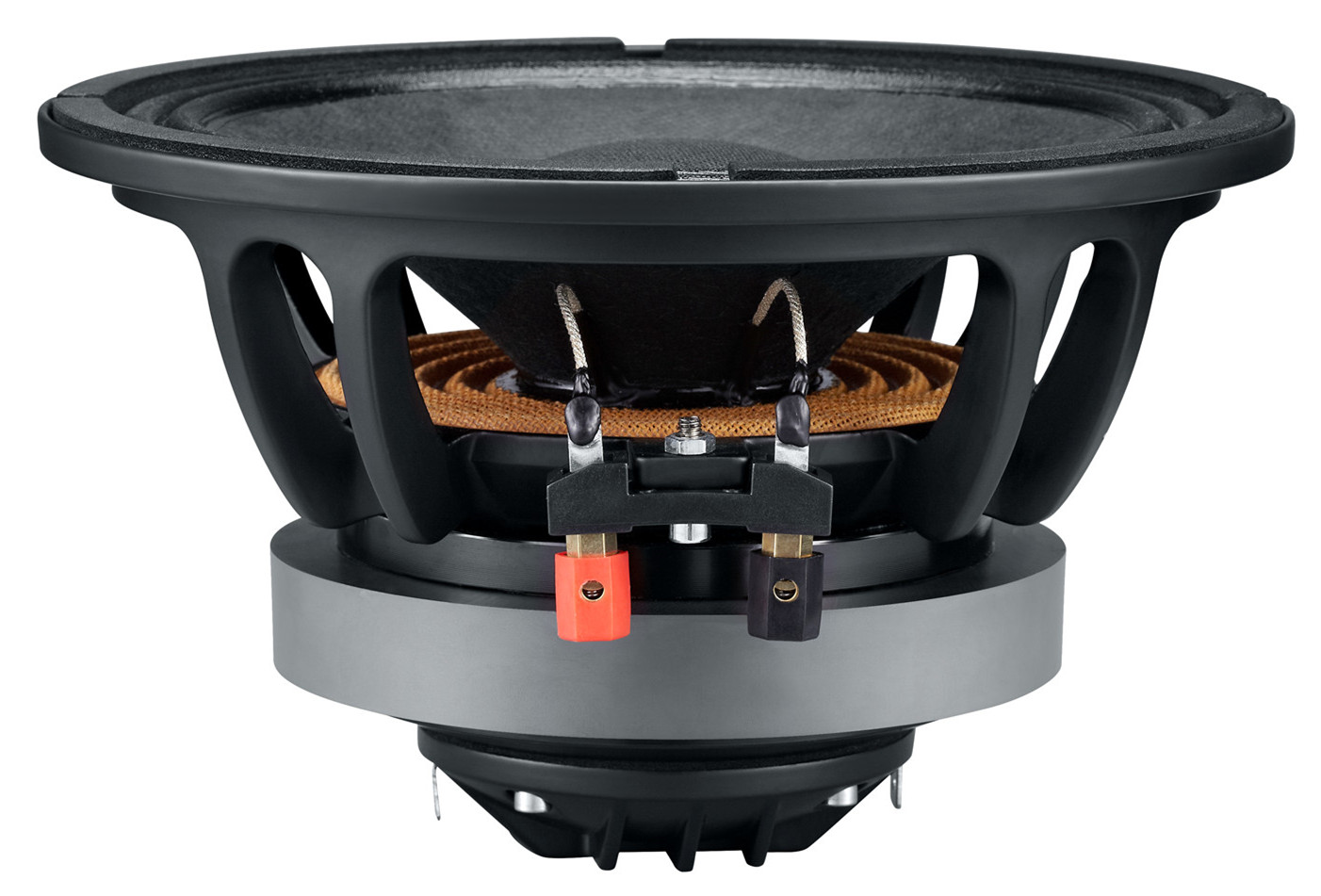

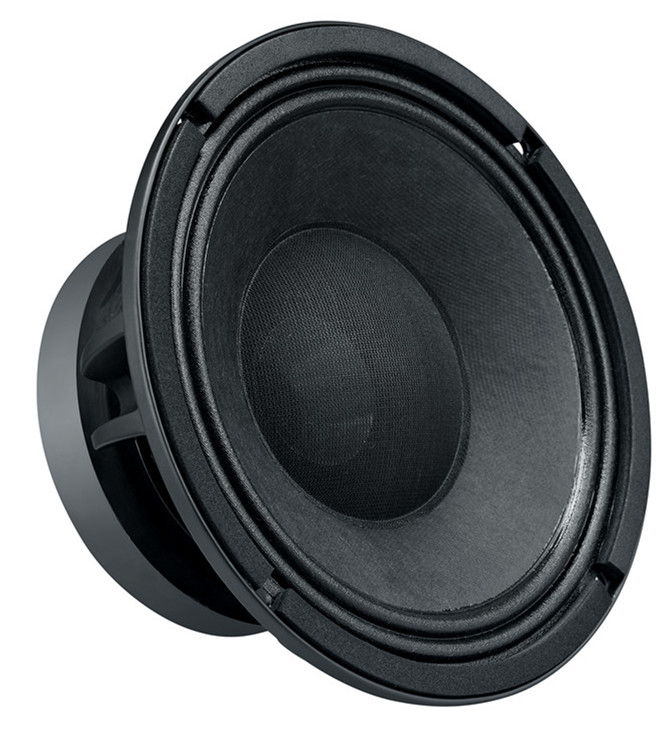

GCF8H34

⌀ 8 inch Ferrite
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 50mm(LF) 34mm(HF)
Continuous Program: 400(LF) 60W(HF)
Sensitivity: 91dB(LF) 96dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

8'' / 210 mm

Power Handling Nominal.(AES)

200W(LF) 30W(HF)

Continuous Program

400W(LF) 60W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

50mm LF- 34mm HF

Magnet Material

Ferrite

Sensitivity 1W/1m

91dB (LF) 96dB (HF)

Frequency Range

90 Hz-20KHz

Winding Material

Copper(LF)

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Connector Type

Faston
