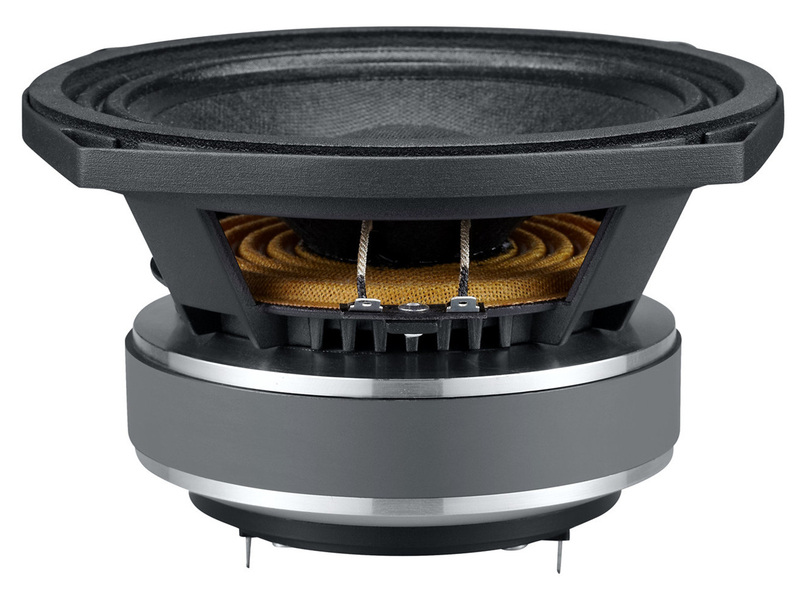

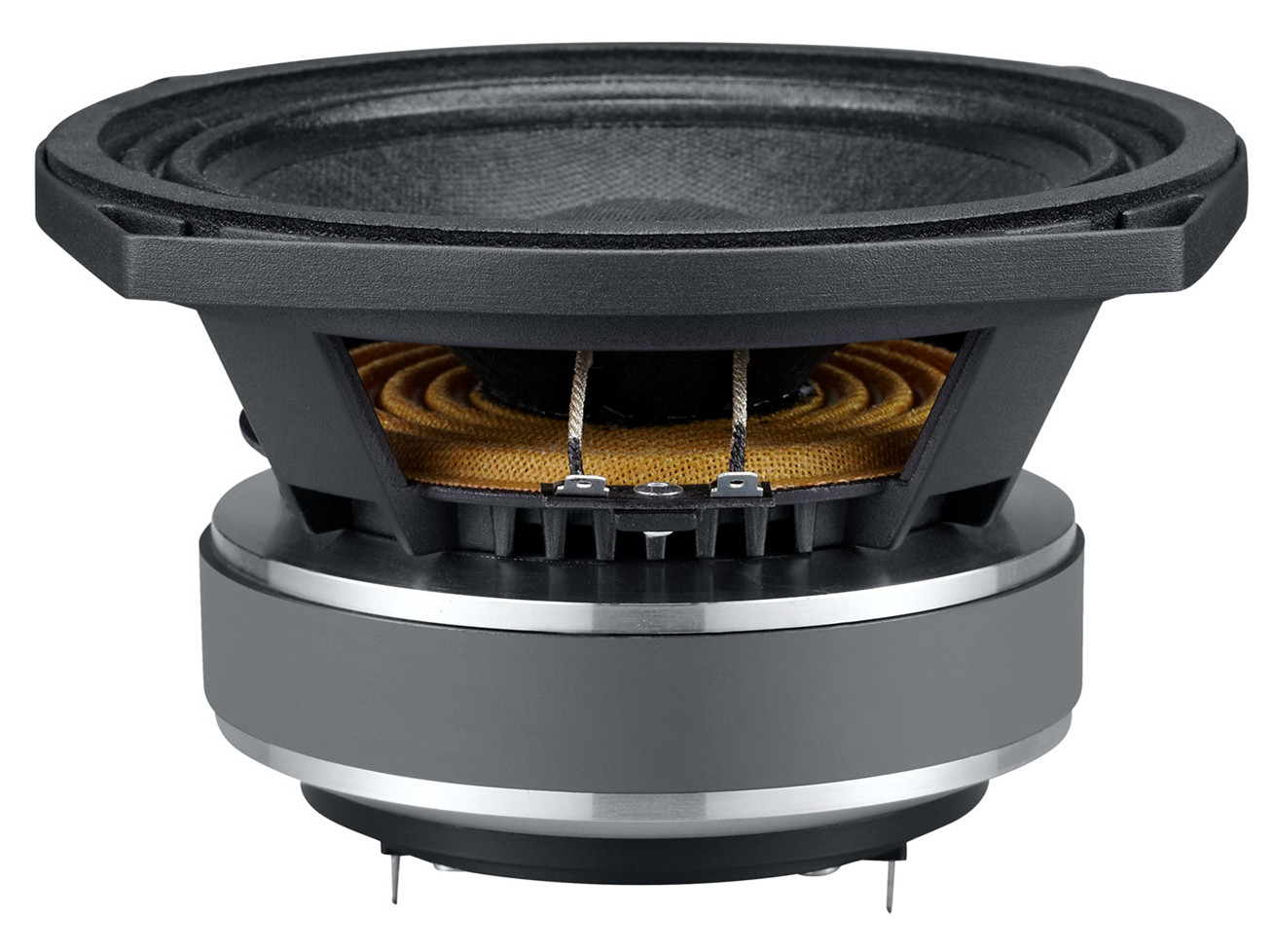

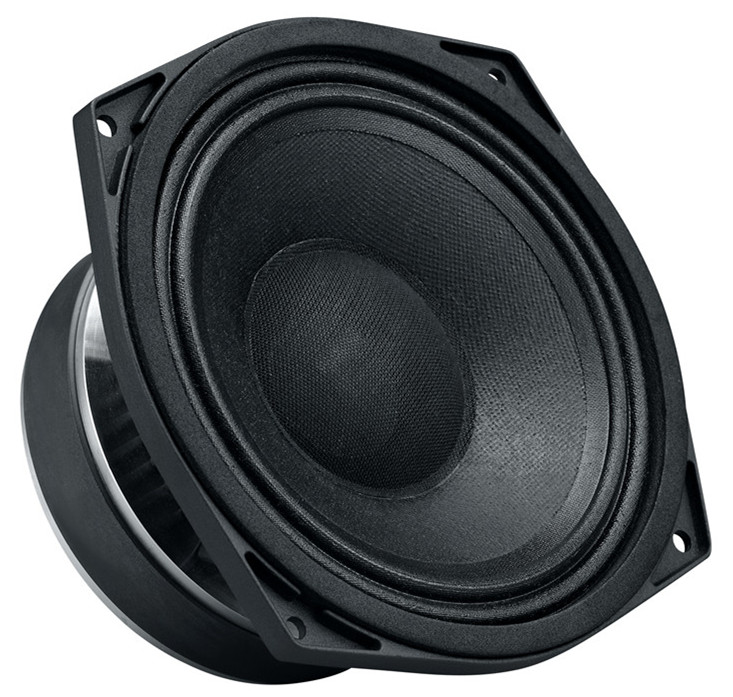

GCF6H34

⌀ 6.5 inch Ferrite
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 38mm(LF) 34mm(HF)
Continuous Program: 300W(LF) 60W(HF)
Sensitivity: 92dB(LF) 96dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

6.5'' / 170 mm

Power Handling Nominal(AES)

300W (LF) 60W (HF)

Continuous Program

150W(LF) 30W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

38mm(LF) 34mm(HF)

Magnet Material

Ferrite

Sensitivity 1W/1m

92dB(LF) 96dB(HF)

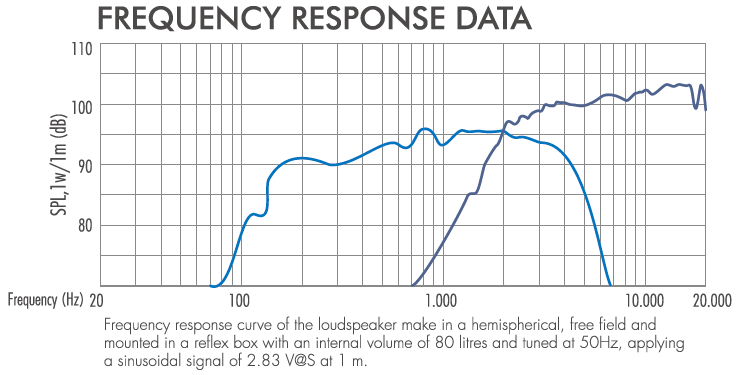

Frequency Range

115 - 20KHz

Winding Material

Copper(LF)

Former Material

Kapton(LF) Kapton(HF）

Cone Material

Paper

Connector Type

Faston
