GCF12H75D

⌀ 12 inch Ferrite

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 76mm(LF) 75mm(HF)

Continuous Program: 800W(LF) 160W(HF)

Sensitivity: 97dB(LF) 105dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

12'' / 320 mm

Power Handling Nominal (AES)

400W (LF) 80W (HF)

Continuous Program

800W(LF) 160W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

76mm(LF) 75mm(HF)

Magnet Material

Ferrite

Sensitivity 1W/1m

97dB(LF) 105dB(HF)

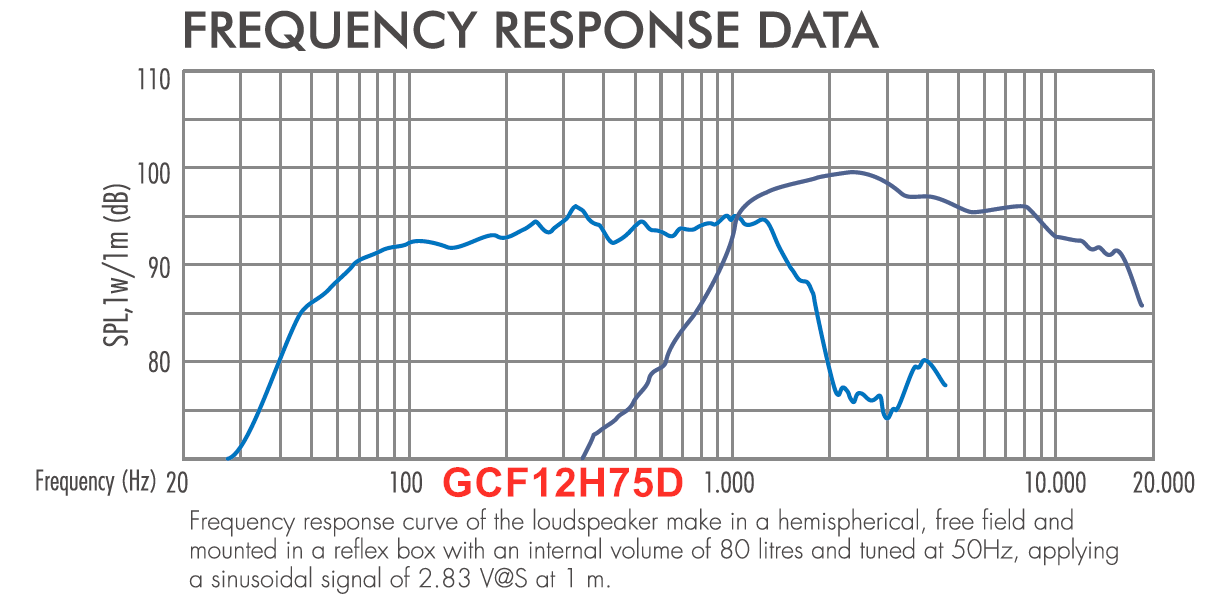

Frequency Range

65-18K Hz

Winding Material(LF)

Copper

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Connector Type

Faston
