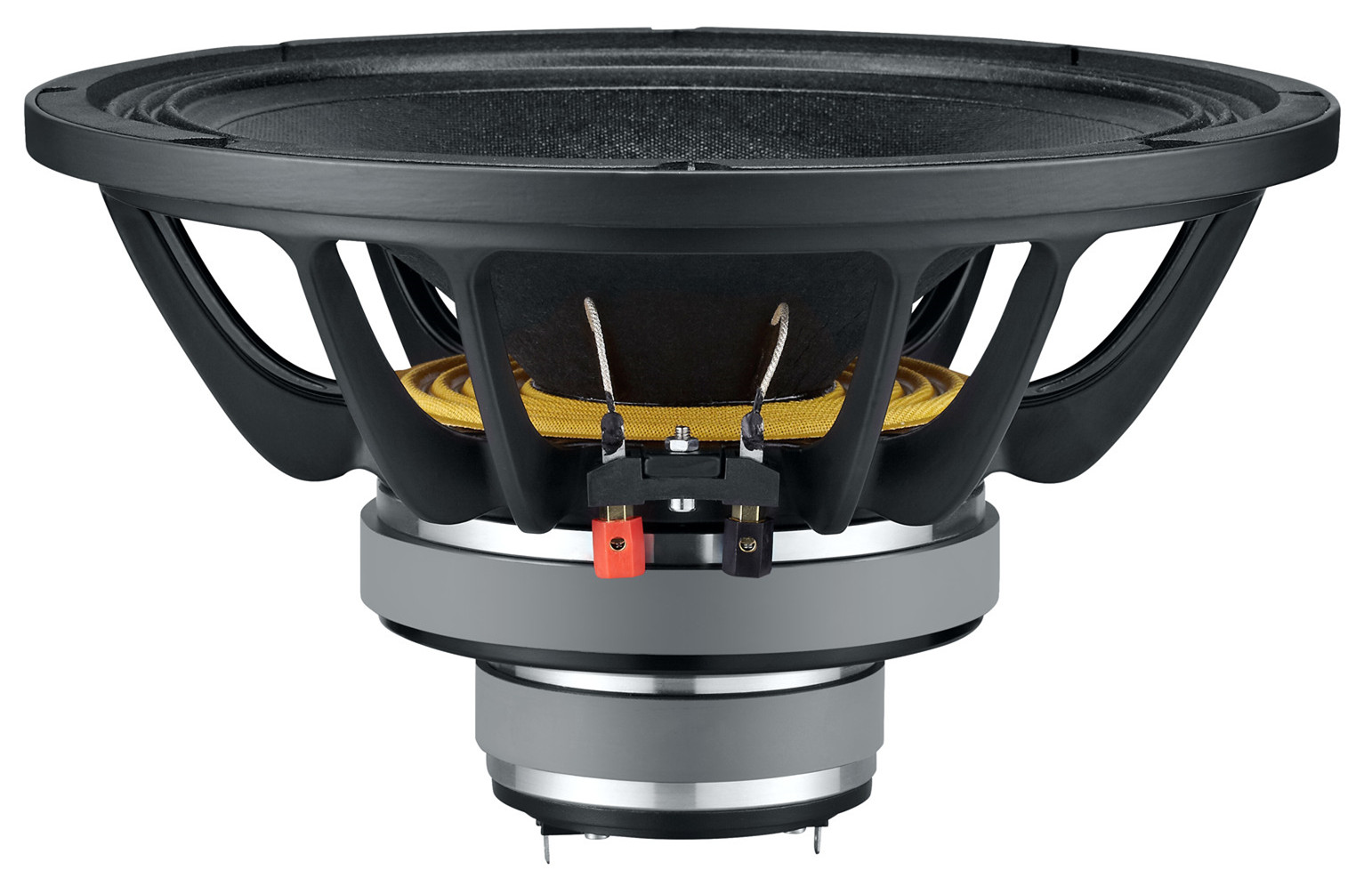

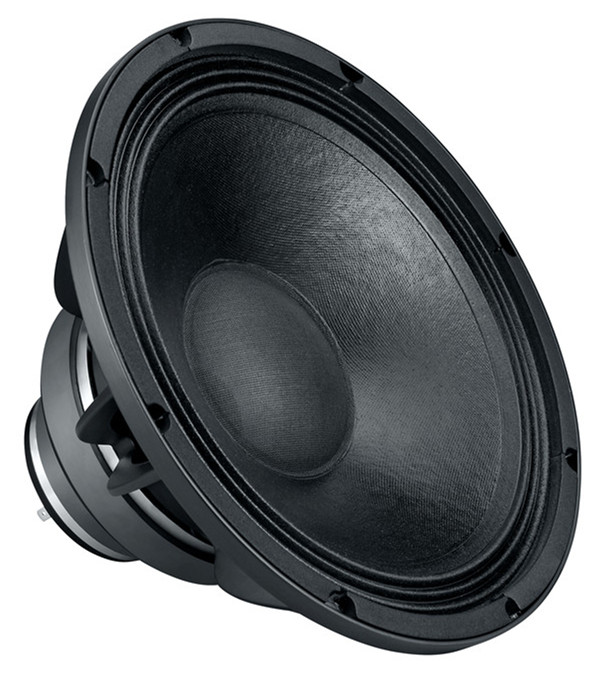

GCF12H44D

⌀ 12 inch Ferrite

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 65mm(LF) 44mm(HF)

Continuous Program: 700W(LF) 100W(HF)

Sensitivity: 96dB(LF) 105dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

12'' / 320 mm

Power Handling Nominal (AES)

350W (LF) 50W (HF)

Continuous Program

700W(LF) 100W(HF)

Basket type

Aluminum

Voice Coil Diameter

65mm(LF) 44mm(HF)

Magnet Material

Ferrite

Sensitivity 1W/1m

96dB(LF) 105dB(HF)

Frequency Range

50-18K Hz

Winding Material(LF)

Copper

Former Material

Fiberglass(LF)Kapton(HF)

Cone Material

Paper

Connector Type

Faston

Ningbo BTL Audio

We are a producer maintaining production bases in Ningbo and Guangzhou, designs and manufactures high-quality PA loudspeakers.
We integrate forward-thinking design, stringent materials, precision testing, and automated production with skilled assembly to guarantee exceptional quality and reliability.
Trusted by top audio brands, we deliver field-proven driver solutions. This enables our clients to save time on sourcing and testing, capture market trends faster, and minimize post-sale issues.
Ultimately, we help partners, ensure superior quality, boost brand image, stand out, and build enduring brand reputations beyond short-term gains.
