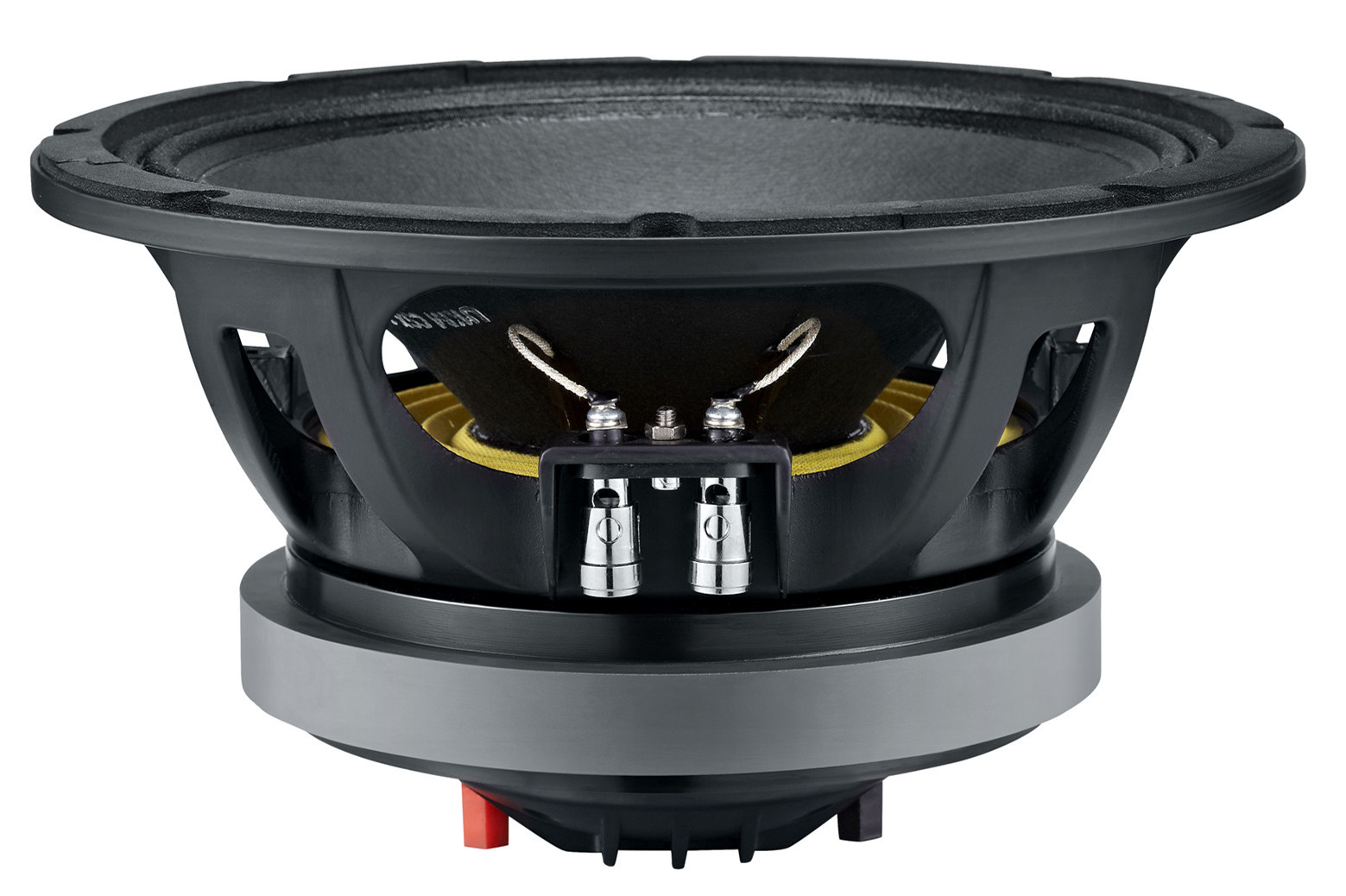

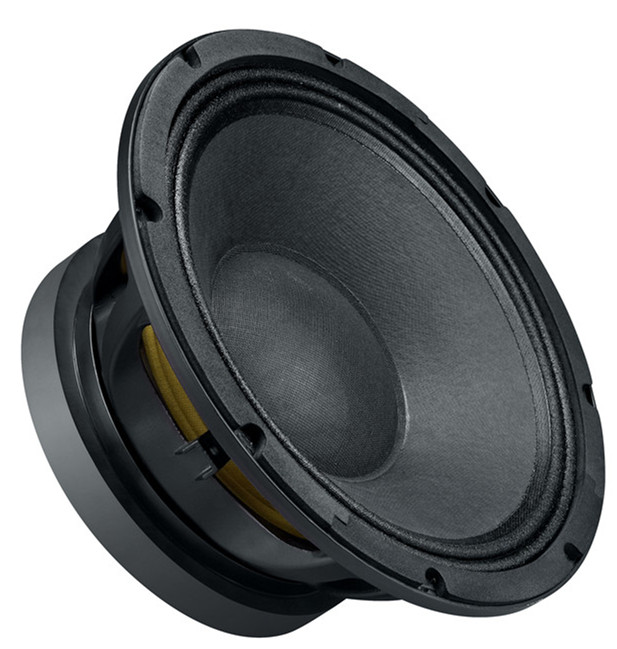

GCF10H44

⌀ 10 inch Ferrite
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 76mm(LF) 44mm(HF)
Continuous Program: 700W(LF) 100W(HF)
Sensitivity: 95dB(LF) 105dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

10'' / 260 mm

Power Handling Nominal(AES)

350W (LF) 50W (HF)

Continuous Program

700W(LF) 100W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

76mm(LF) 44mm(HF)

Magnet Material

Ferrite

Sensitivity 1W/1m

95 dB(LF) 105 dB(HF)

Frequency Range

60 - 18K Hz

Winding Material (LF）

Copper

Former Material

Fiberglass(LF) Kapton (HF)

Cone Material

Paper

Connector Type

Faston
