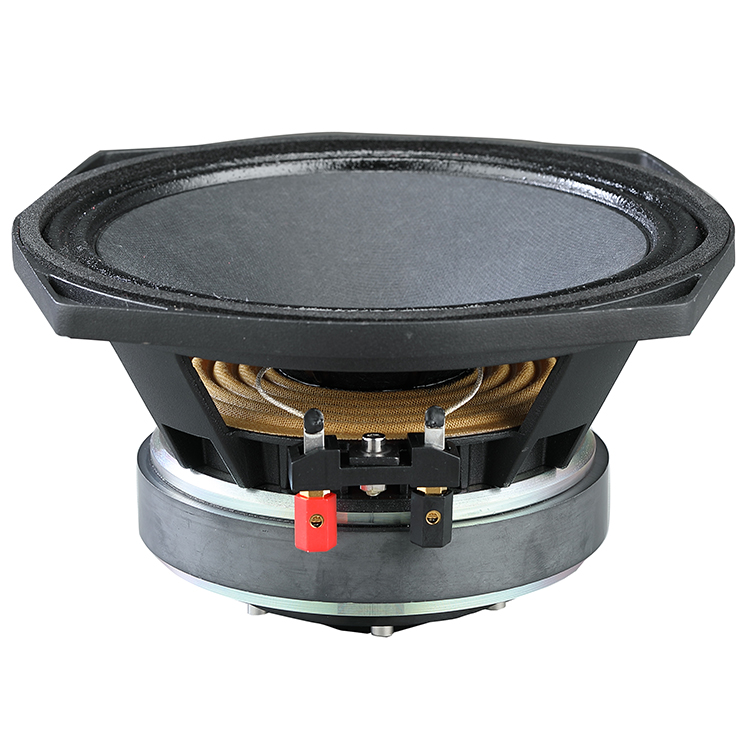

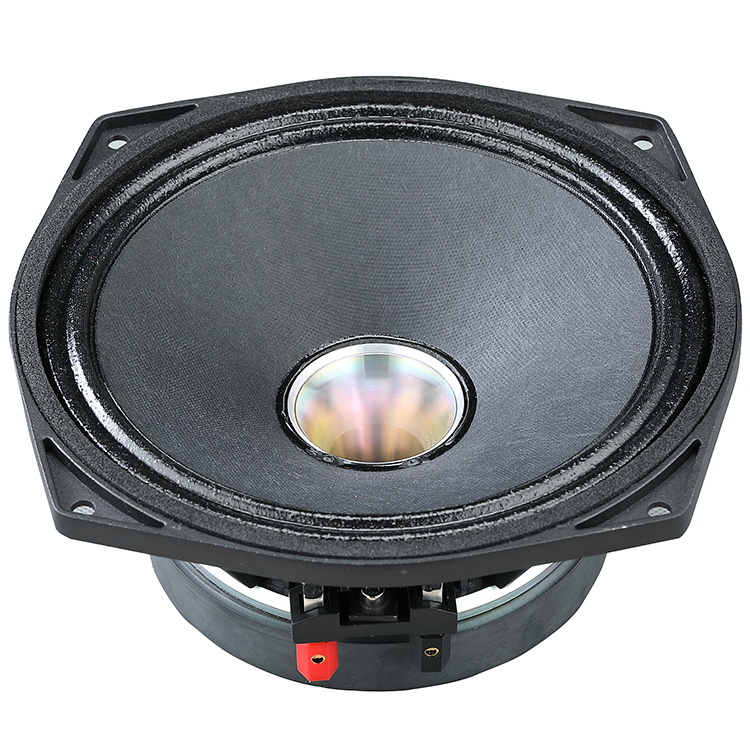

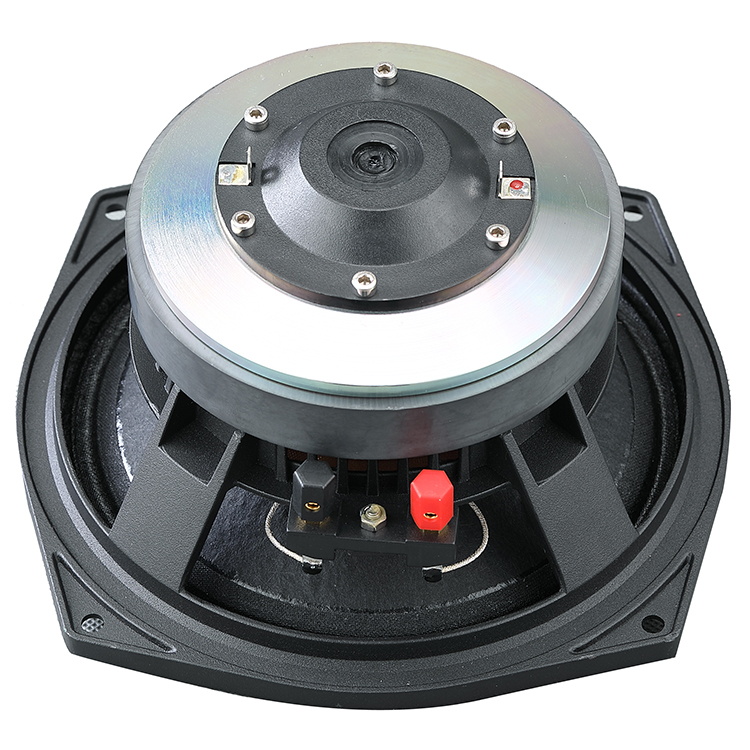

GCD8H44

⌀ 8 inch Ferrite
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 38mm(LF) 44mm(HF)
Continuous Program: 300W(LF) 80W(HF)
Sensitivity: 93dB(LF) 96dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

8'' / 210 mm

Power Handling Nominal.(AES)

150W(LF) 40W(HF)

Continuous Program

300W(LF) 80W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter

38mm(LF) 44mm(HF)

Magnet Material

Ferrite

Sensitivity 1W/1m

93 dB(LF) 96 dB(HF)

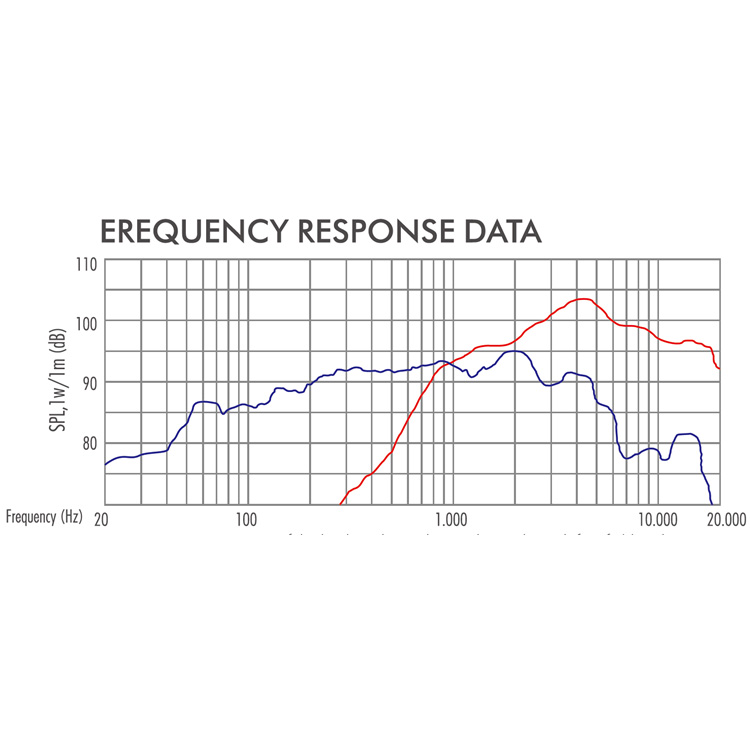

Frequency Range

89 -20K Hz

Winding Material(LF)

Copper

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Connector Type

Faston
