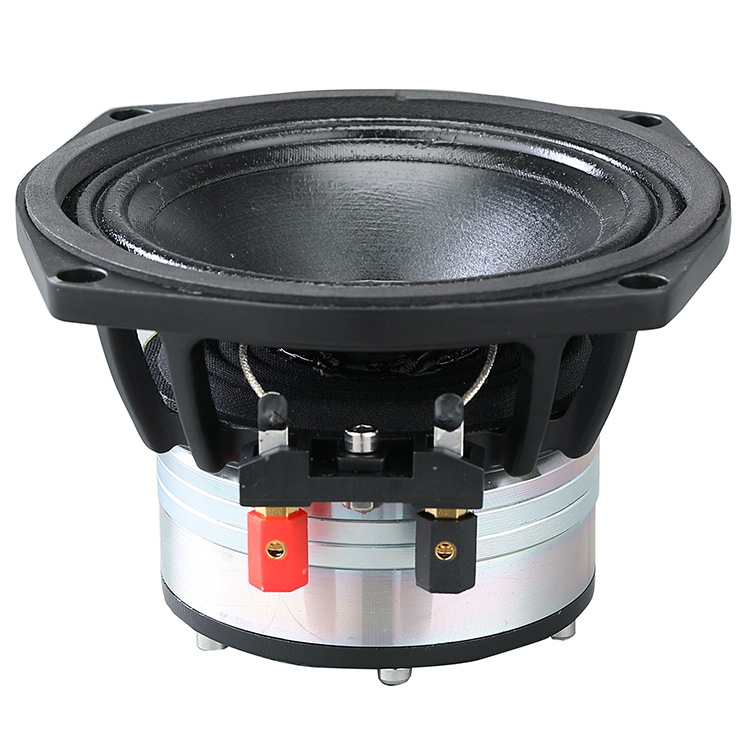

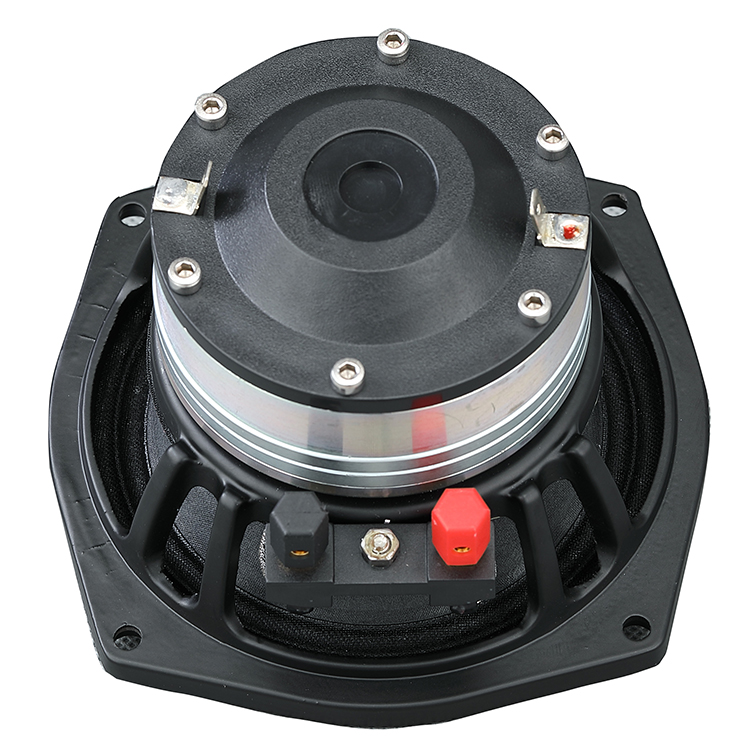

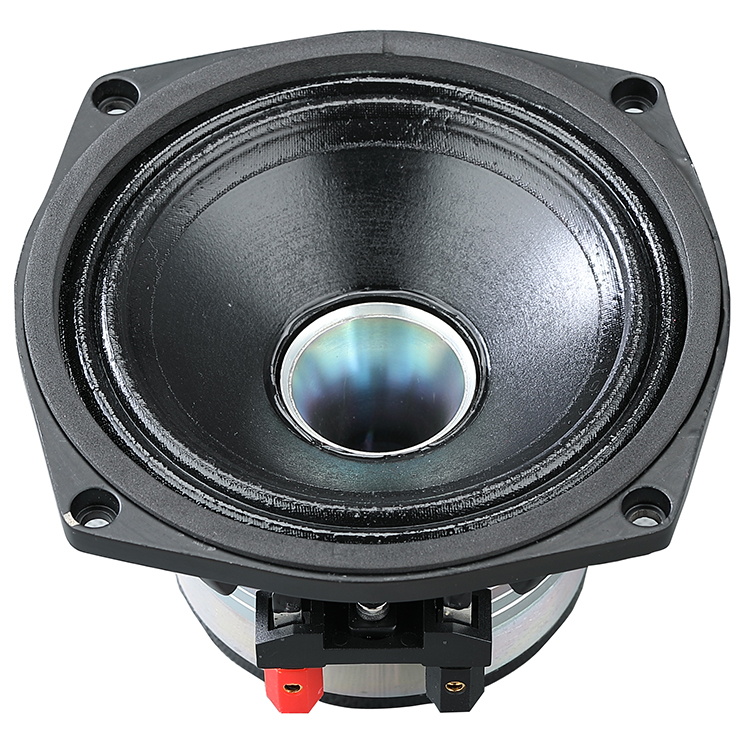

GCD5H44

⌀ 5.5 inch NEO

Nom. Impedance: 8Ω(LF) 16Ω(HF)

Voice Coil ⌀: 38mm(LF) 44mm(HF)
Continuous Program: 200W(LF) 80W(HF)

Sensitivity: 88dB(LF) 98dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

5.5'' / 140 mm

Power Handling Nominal.(AES)

100W(LF) 40W(HF)

Continuous Program

200W(LF) 80W(HF)

Basket type

Aluminium Die-Cast

Voice Coil Diameter(mm)

38mm(LF) 44mm(HF)

Magnet Material

Neodymium

Sensitivity 1W/1m

88dB(LF) 98dB(HF)

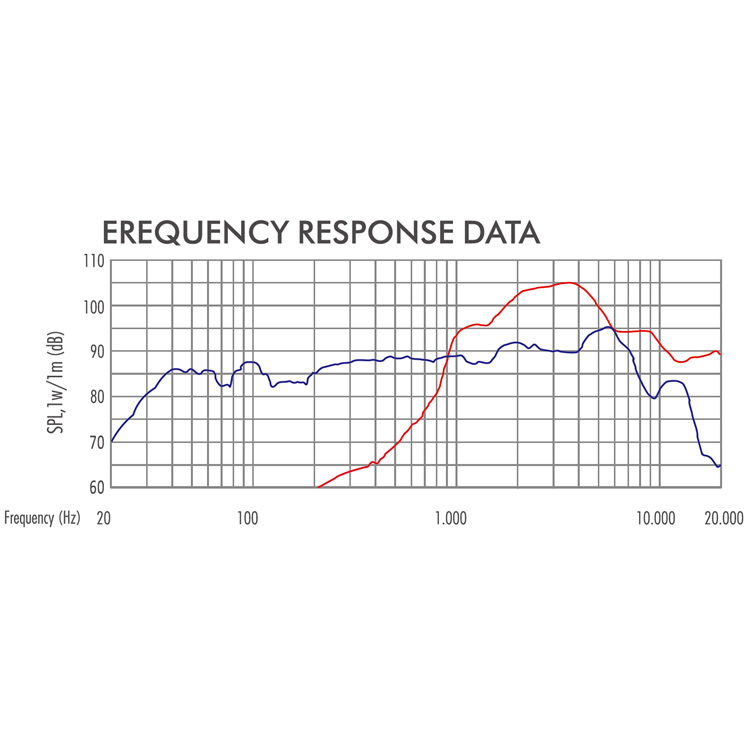

Frequency Range

89 - 20K Hz

Winding Material(LF)

Copper

Former Material

Fiberglass(LF) Kapton(HF)

Cone Material

Paper

Former Material

Faston
