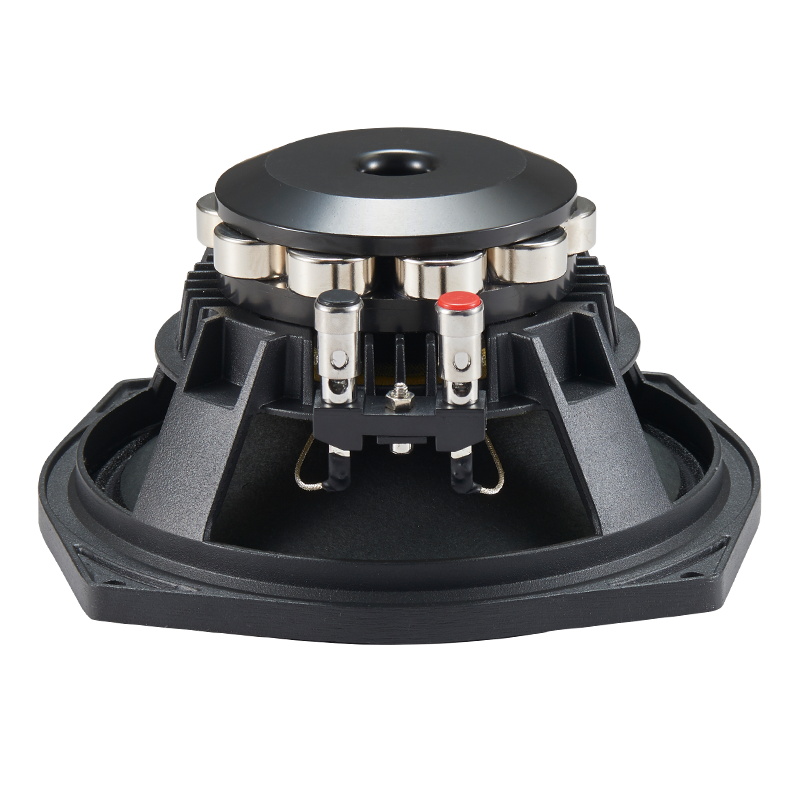

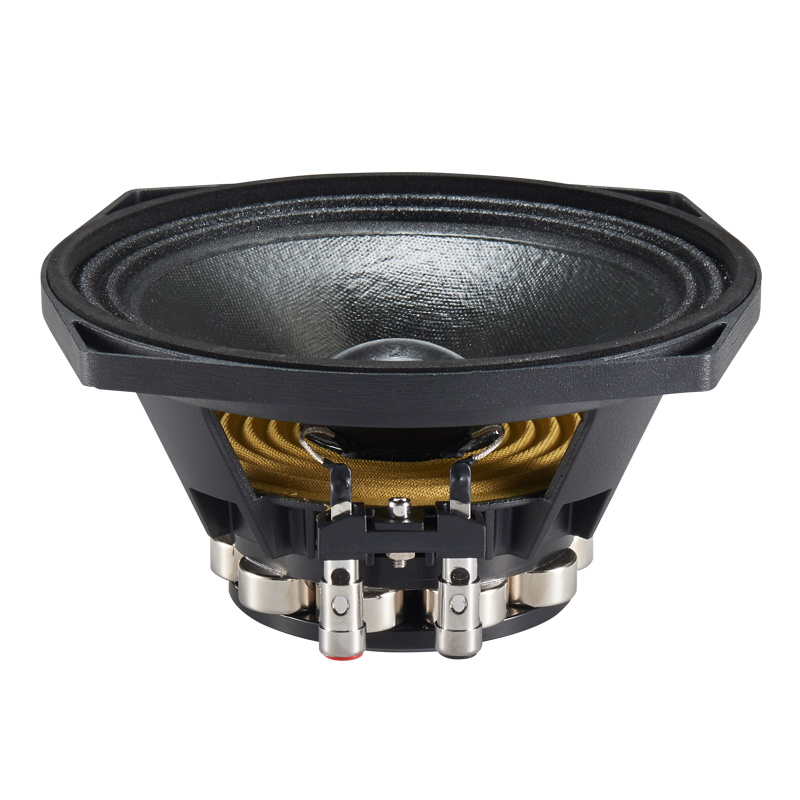

G8MD50

⌀ 8 inch     NEO
MIDRANGE
Nom. Impedance: 8Ω
Voice Coil ⌀: 50mm
Continuous Program: 400W
Sensitivity: 99dB
Availability:
Inquire Add to Basket

Nominal Diameter

8'' / 210 mm

Nominal Impedance

8 Ω

Minimum Impedance

6 Ω

Nominal Power Handling AES

200 W

Continuous Power Handling

400 W

Sensitivity 1W/1m²

99 dB

Frequency Range

80-5K Hz

Voice Coil Diameter

50 mm

Winding Material

Aluminum


F0

80 Hz

Re

5.6 Ω

Qes

0.2

Qms

4.64

Qts

0.19

Vas

17.88 dm³

Sd

0.0227 cm²

Xmax

±3.5 mm

Xvar

±2.5 mm

Mms

15.96 g

BL

14.73 T.m

Le

0.2 mH


Overall Diameter

199 mm

Bolt Circle Diameter

212 mm

Baffle Cutout Diameter

mm

Total Depth

181 mm

Flange and Gasket Thickness

8 mm

Gross Weight

1.8 kg

Shipping Weight

2.15 kg

Shipping Box

220×220×150 mm
