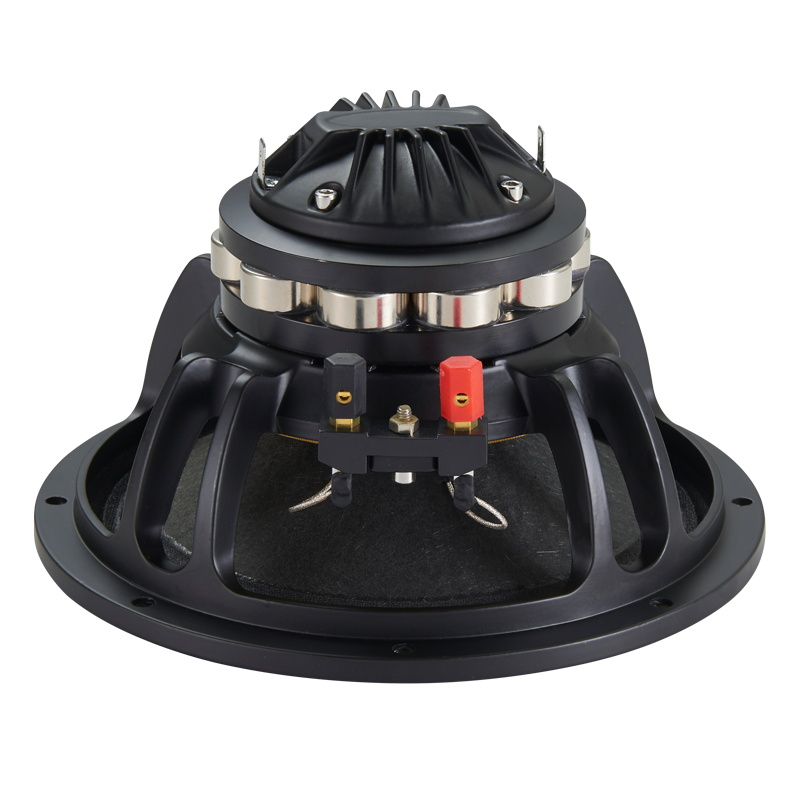

G8CN50

⌀ 8 inch NEO
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 51mm(LF) 34mm(HF)
Continuous Program: 400W(LF) 60W(HF)
Sensitivity: 93dB(LF) 96dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

8'' / 210 mm

Power Handling Nominal(AES)

200W (LF) 30W (HF)

Continuous Program

400W(LF) 60W(HF)

Minimum Impedance

5.6 Ω(LF) 6.0(HF)

Voice Coil Diameter

51mm(LF) 34mm(HF)

Magnet Material

Neodymium Ring

Sensitivity 1W/1m

93dB(LF) 96dB(HF)

Frequency Range

90-20K Hz

Winding Material (LF&HF）

Aluminum

Former Material（LF）

Kapton

Diaphragm Material（HF）

Polyester

Recommended Crossover

2K Hz
