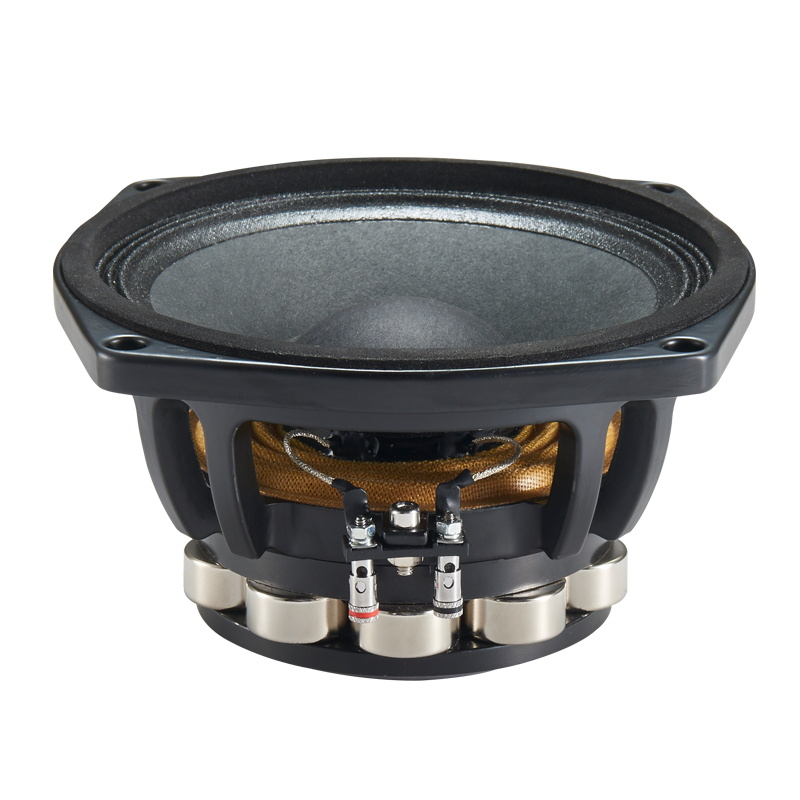

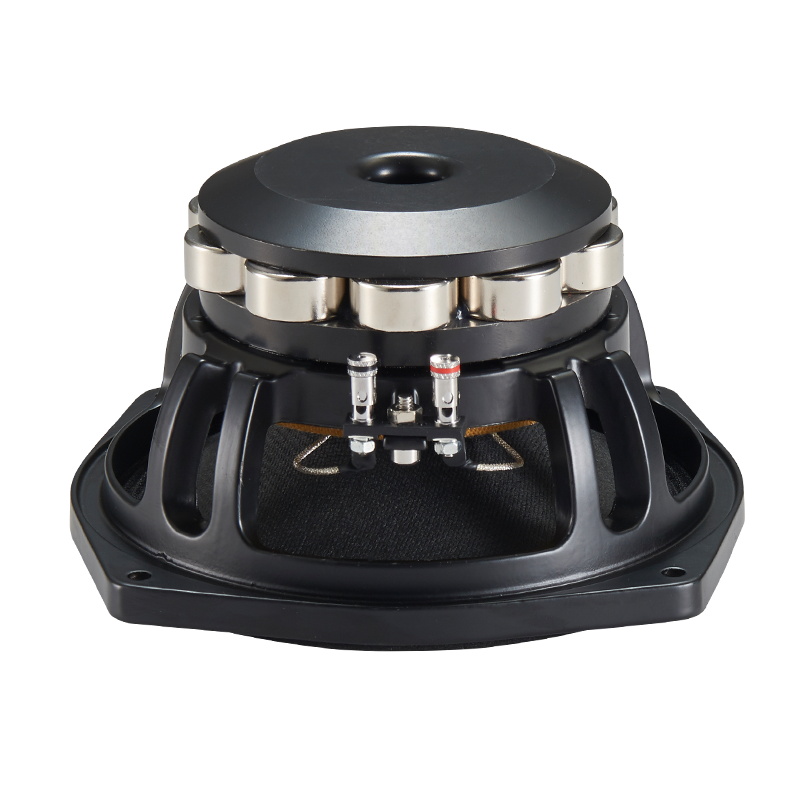

G6MD50

⌀ 6.5 inch     NEO
MIDRANGE
Nom. Impedance: 8Ω
Voice Coil ⌀: 50mm
Continuous Program: 400W
Sensitivity: 98dB
Availability:
Inquire Add to Basket

Nominal Diameter

6.5'' / 170 mm

Nominal Impedance

8 Ω

Minimum Impedance

6 Ω

Nominal Power Handling AES

200 W

Continuous Power Handling

400 W

Sensitivity 1W/1m²

98 dB

Frequency Range

110-5K Hz

Voice Coil Diameter

50 mm

Winding Material

Aluminum


F0

112.8 Hz

Re

5.6 Ω

Qes

0.24

Qms

3.54

Qts

0.23

Vas

5.57 dm³

Sd

143 cm²

Xmax

±2 mm

Xvar

±2 mm

Mms

10.03 g

Bl

12.73 T.m

Le

0.2 mH


Overall Diameter

162 mm

Bolt Circle Diameter

172 mm

Baffle Cutout Diameter

146 mm

Total Depth

80 mm

Flange and Gasket Thickness

8 mm

Gross Weight

1.75 kg

Shipping Weight

1.95 kg

Shipping Box

170×170×140 mm
