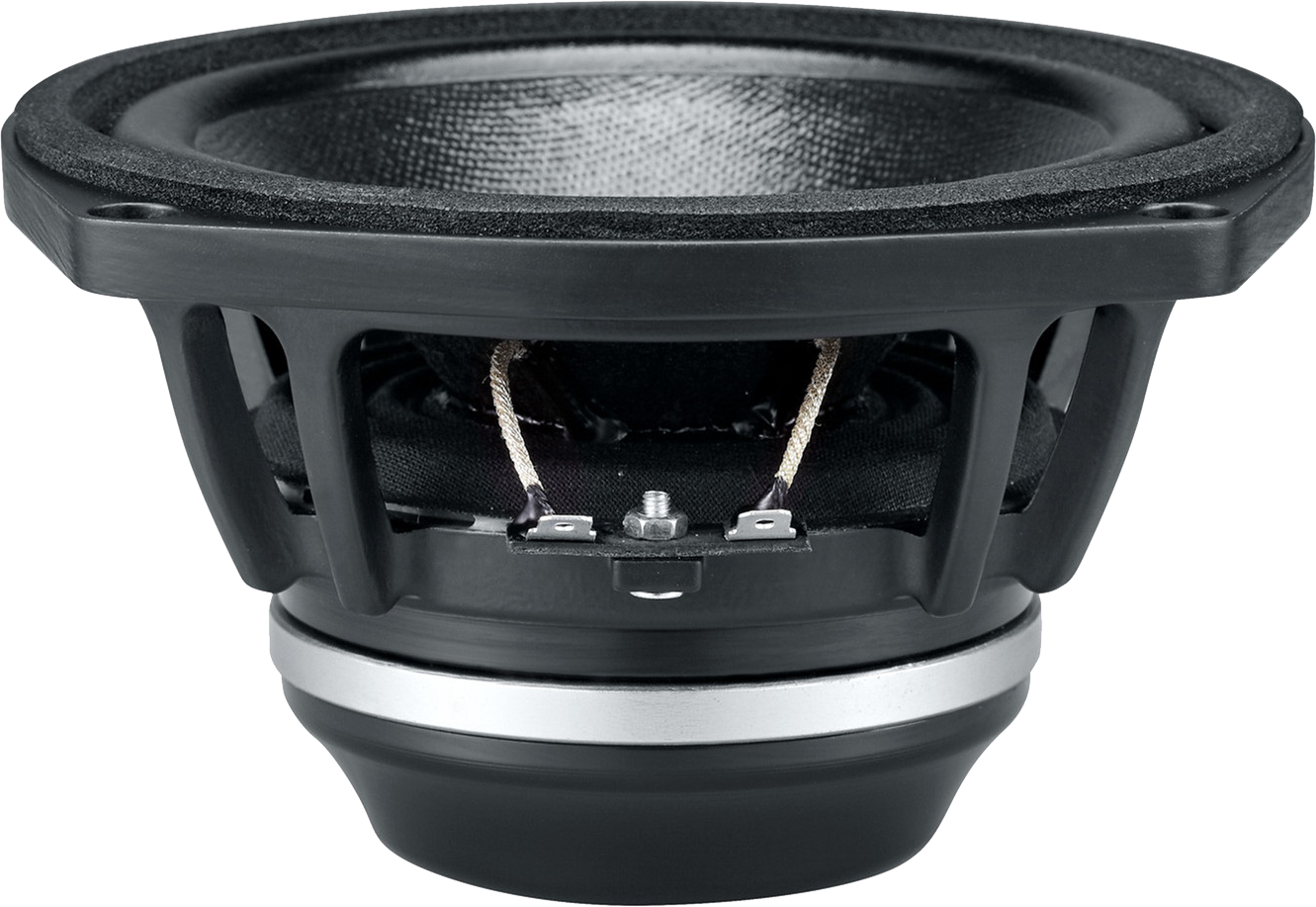

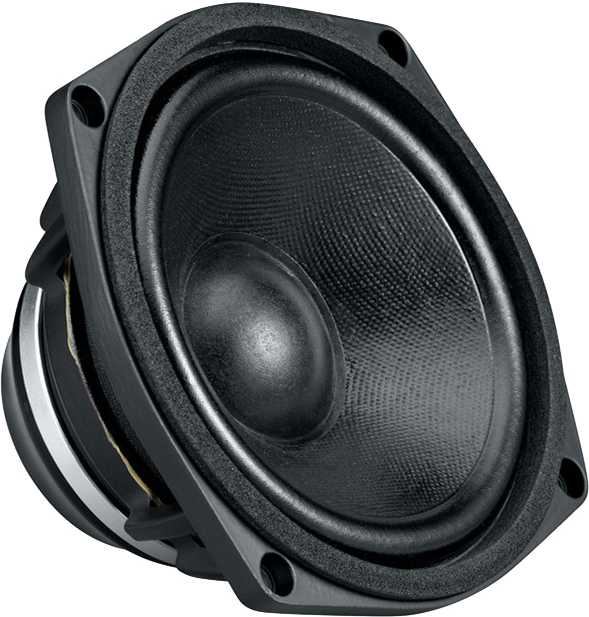

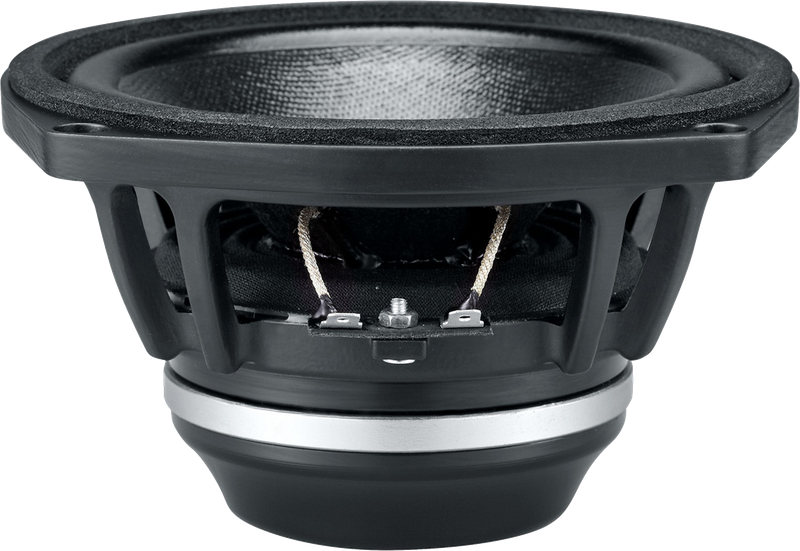

G5ND38

⌀ 5.5 inch     NEO
Nom. Impedance: 8Ω
Voice Coil ⌀: 38mm
Continuous Program: 200W
Sensitivity: 93dB
Availability:
Inquire Add to Basket

Nominal Diameter

5.5'' / 140 mm

Power Handling Nominal (AES)

100 W

Continuous Program

200 W

Basket type

Aluminium Die-Cast

Voice Coil Diameter

38 mm

Magnet Material

Neodymium

Sensitivity 1W/1m

93 dB

Frequency Range

98-7K Hz

Winding Material

Copper

Former Material

Kapton

Cone Material

Paper

Connector Type

Faston


F0

98 Hz

Re

6 Ω

Qes

0.27

Qms

3

Qts

0.25

Vas

3.3 dm³

Sd

83 cm²

Xmax

±4 mm

Xvar

 mm

Mms

7.65 g

Bl

10.3 T.m

Le

0.24 mH


Overall Diameter

135 mm

Bolt Circle Diameter

142mm

Baffle Cutout Diameter

121 mm

Depth

75mm

Flange and Gasket Thickness

8mm

Net Weight

1 kg

N.of mounting holes

4

Mounting holes diameter

5.5 mm
