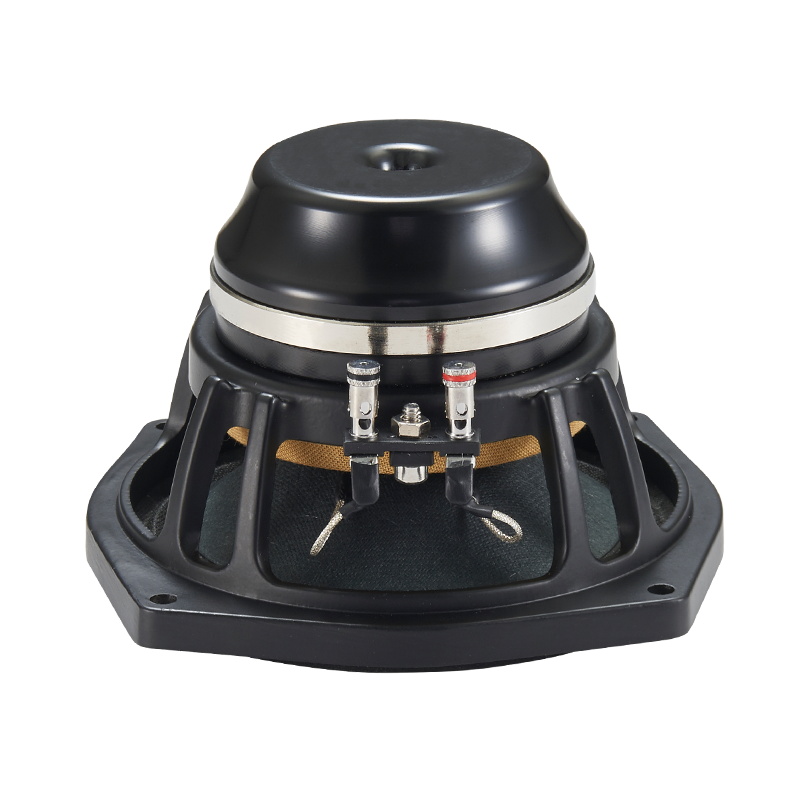

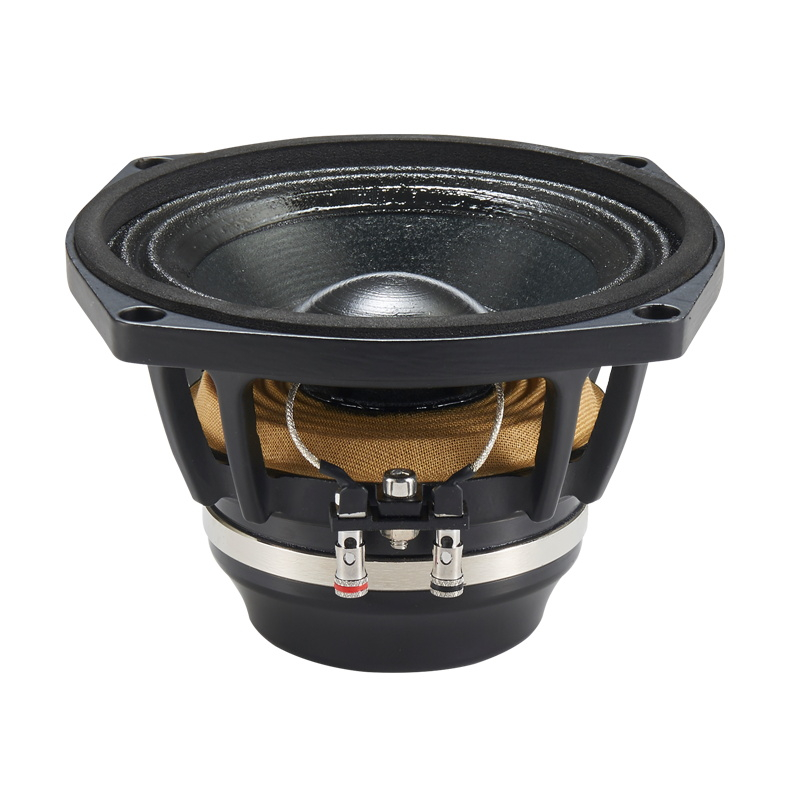

G5MD38

⌀5.5 inch     NEO
MIDRANGE
Nom. Impedance: 8Ω
Voice Coil ⌀: 40mm
Continuous Program: 200W
Sensitivity: 94dB
Availability:
Inquire Add to Basket

Nominal Diameter

5.5'' / 140 mm

Nominal Impedance

8Ω

Minimum impedance

6Ω

Nominal Power Handling AES

100 W

Continuous Power Handling

200 W

Sensitivity 1W/1m²

94 dB

Frequency Range(Hz)

128-7K Hz

Voice Coil Diameter

40 mm

Winding Material

Aluminum


F0

128.87 Hz

Re

6.1 Ω

Qes

0.4

Qms

2.4

Qts

0.34

Vas

2.88 dm³

Sd

87 cm²

Xmax

±2 mm

Xvar

±2 mm

Mms

5.53 g

Bl

8.22 T.m

Le

0.06 mH


Overall Diameter

135 mm

Bolt Circle Diameter

142 mm

Baffle Cutout Diameter

121 mm

Total Depth

75 mm

Flange and Gasket Thickness

6 mm

Net Weight

1.05 kg

Shipping Weight

1.15 kg

Shipping Box

140×140×120 mm
