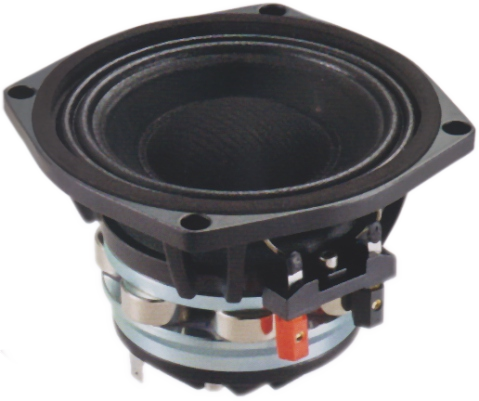

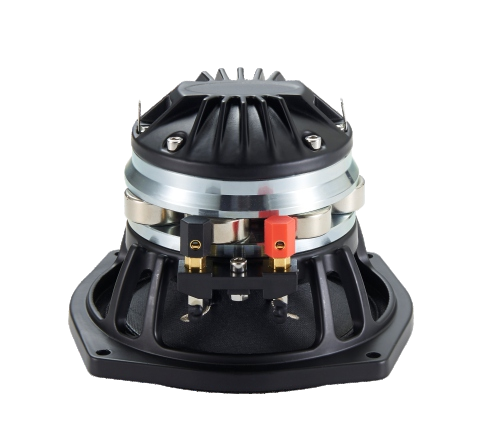

G5CN40

⌀ 5.5 inch NEO
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 40mm(LF) 34mm(HF)
Continuous Program: 200W(LF) 60W(HF)
Sensitivity: 91dB(LF) 96dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

5.5'' / 140 mm

Power Handling Nominal(AES)

100W (LF) 30W (HF)

Continuous Program

200W(LF) 60W(HF)

Minimum Impedance

5.6Ω(LF) 6Ω(HF)

Voice Coil Diameter

40mm(LF) 34mm(HF)

Magnet Material

Neodymium Ring

Sensitivity 1W/1m

91dB(LF) 96dB(HF)

Frequency Range

110-20K Hz

Winding Material

Copper(LF) Aluminum(HF）

Former Material(LF)

Kapton

Diaphragm Material(HF)

Titanium

Recommended Crossover

2K Hz
