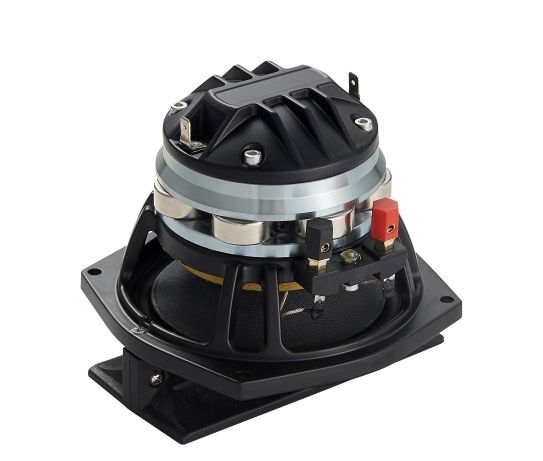

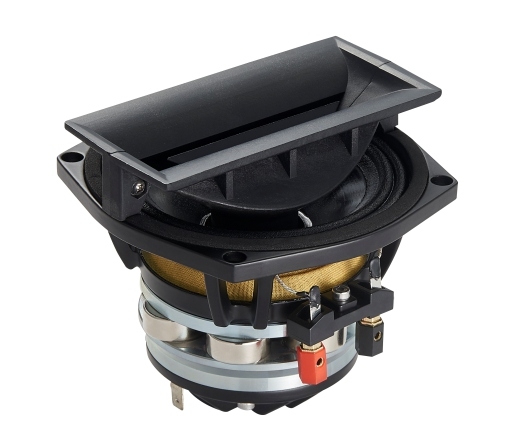

G5C38H34XH

⌀ 5.5 inch NEO
Nom. Impedance: 16Ω(LF) 16Ω(HF)
Voice Coil ⌀: 38mm(LF) 34mm(HF)
Continuous Program: 300W(LF) 60W(HF)
Sensitivity: 88dB(LF) 105dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

5.5'' / 140 mm

Power Handling Nominal(AES)

150W (LF) 30W (HF)

Continuous Program

300W(LF) 60W(HF)

Minimum Impedance

11 Ω(LF) 12Ω (HF)

Voice Coil Diameter

38mm(LF) 34mm(HF)

Magnet Material

Neodymium

Sensitivity 1W/1m

88dB(LF) 105dB(HF)

Frequency Range

110-18K Hz

Winding Material

Copper(LF) Aluminum(HF）

Former Material(LF)

Glass Fiber

Diaphragm Material(HF)

Titanium

Recommended Crossover

2K Hz
