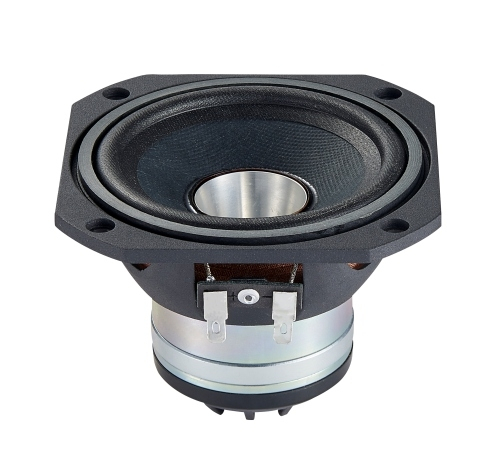

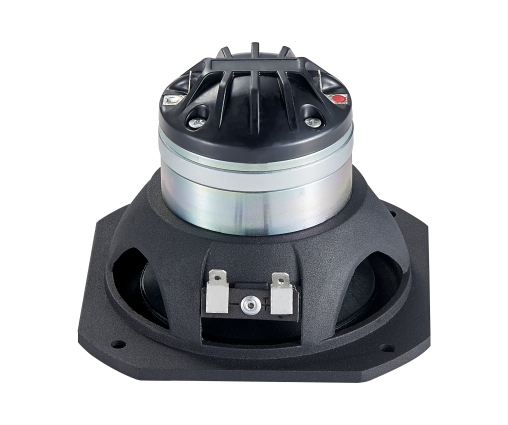

G4CX36H36

⌀ 4 inch NEO

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 36mm(LF) 36mm(HF)

Continuous Program: 200(LF) 60(HF)

Sensitivity: 96dB(LF) 103dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

4'' / 100 mm

Power Handling Nominal (AES)

100(LF) 30(HF)

Continuous Program

200(LF) 60(HF)

Minimum Impedance

5.7 Ω(LF) 10.5Ω (HF)

Voice Coil Diameter

36mm(LF) 36mm(HF)

Magnet Material

Neodymium

Sensitivity 1W/1m

96 dB (LF) 103 dB (HF)

Frequency Range

120-18K Hz

Winding Material

Copper(LF) Aluminium(HF)

Former Material(LF)

Kapton

Diaphragm Material(HF)

PEEK

Recommended Crossover

2.5K Hz
