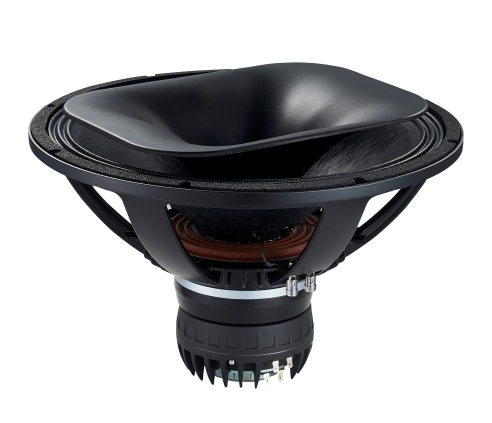

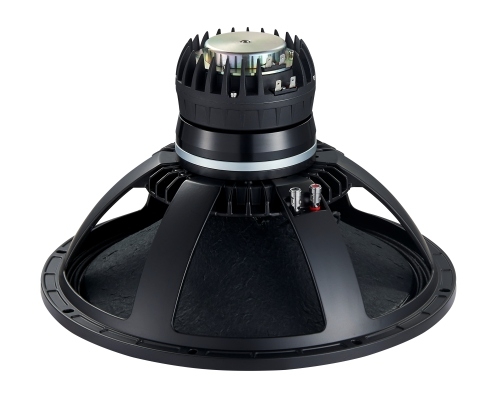

G18C100M100H65

⌀ 18 inch NEO

Nom. Impedance: 8Ω

Voice Coil ⌀: 100mm(LF) 100mm(MD) 65mm(HF)

Continuous Program: 1600W(LF) 500W(MD) 140W(HF)

Sensitivity: 98dB(LF) 110dB(MD) 110dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

18'' / 460 mm

Power Handling Nominal (AES)

800W(LF) 250W(MD) 70W (HF)

Continuous Program

1600W(LF) 500W(MD) 140W(HF)

Minimum Impedance

5.2Ω(LF) 6Ω(MD)

6Ω(HF)

Voice Coil Diameter

100mm(LF) 100mm(MD) 65mm(HF)

Magnet Material

Neodymium

Sensitivity 1W/1m

98dB(LF) 110dB(MD) 110dB(HF)

Frequency Range

34-18K Hz

Winding Material

Aluminum

Former Material(LF)

Glass Fiber

Diaphragm Material (MD&HF）

Polyimide

Recommended Crossover

500 Hz(MD） 3K Hz(HF)
