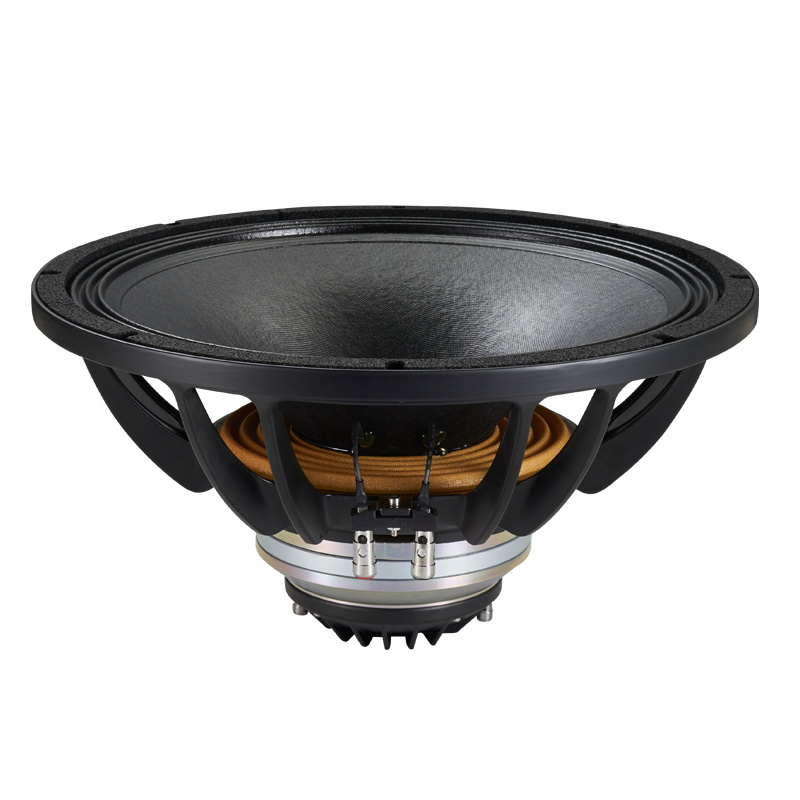

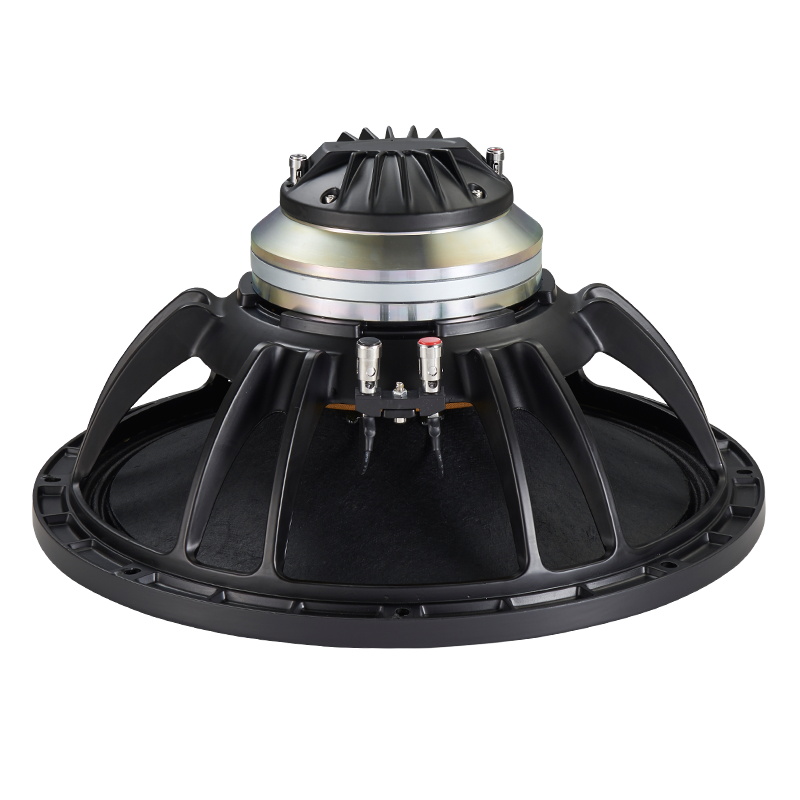

G15CN100X

⌀ 15 inch NEO
Nom. Impedance: 8Ω(LF) 8Ω(HF)
Voice Coil ⌀: 100mm(LF) 75mm(HF)
Continuous Program: 1200W(LF) 160W(HF)
Sensitivity: 102dB(LF) 108dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

15'' / 380mm

Power Handling Nominal.(AES)

600W (LF) 80W (HF)

Continuous Program

1200W(LF) 160W(HF)

Minimum Impedance

5.6 Ω(LF) 6.0 (HF)

Voice Coil Diameter

100mm(LF) 75mm(HF)

Magnet Material

Neodymium Ring

Sensitivity 1W/1m

102dB(LF) 108dB(HF)

Frequency Range

40-18K Hz

Winding Material（LF&HF）

Aluminum

Former Material

Glass Fiber

Diaphragm Material（HF）

Composite

Recommended Crossover

1K Hz

Ningbo BTL Audio

We are a producer maintaining production bases in Ningbo and Guangzhou, designs and manufactures high-quality PA loudspeakers.
We integrate forward-thinking design, stringent materials, precision testing, and automated production with skilled assembly to guarantee exceptional quality and reliability.
Trusted by top audio brands, we deliver field-proven driver solutions. This enables our clients to save time on sourcing and testing, capture market trends faster, and minimize post-sale issues.
Ultimately, we help partners, ensure superior quality, boost brand image, stand out, and build enduring brand reputations beyond short-term gains.
