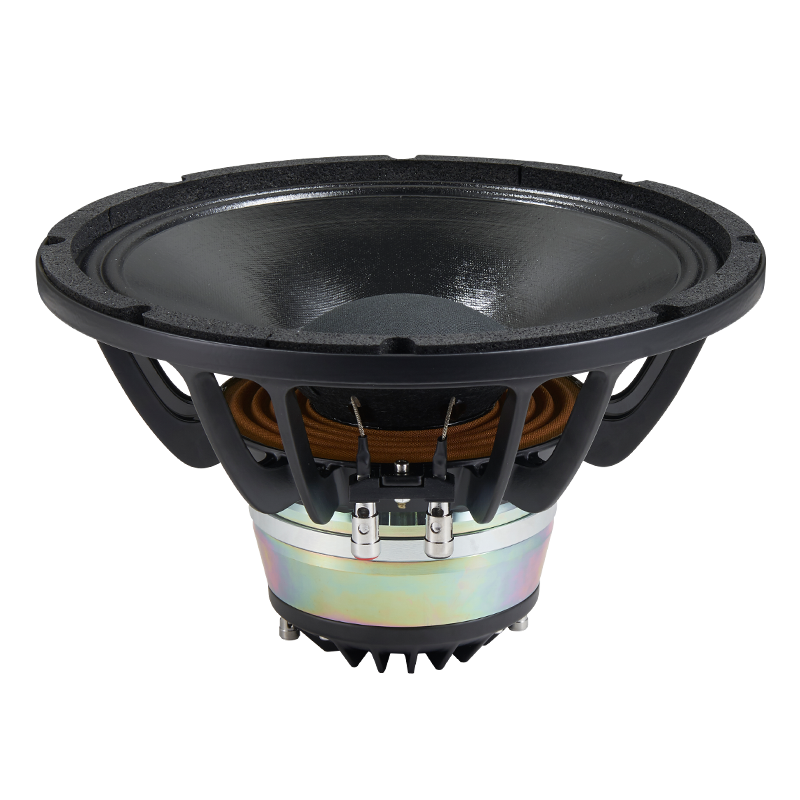

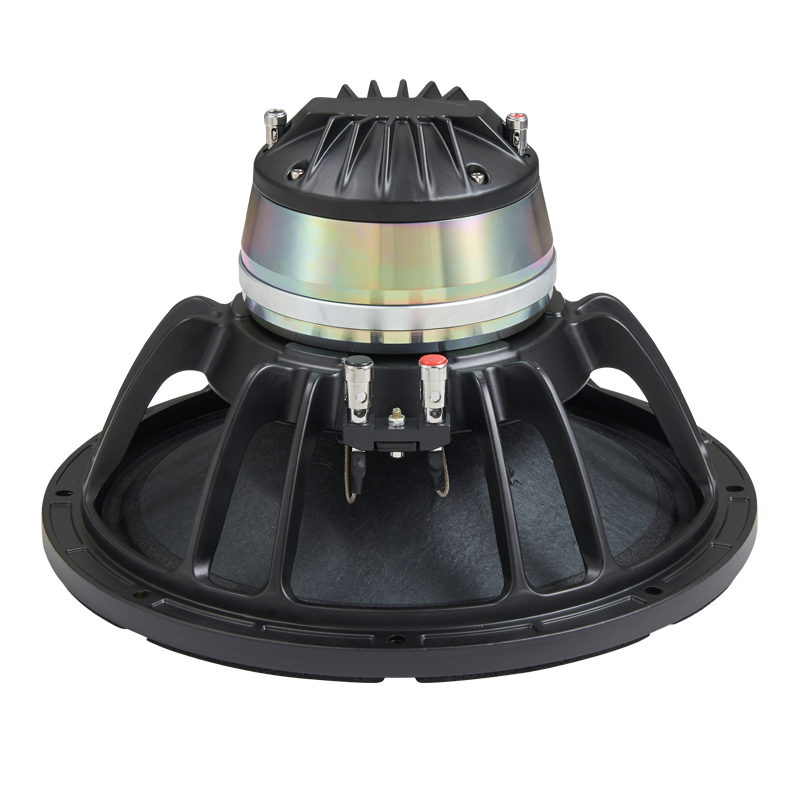

G12CN75X

⌀ 12 inch NEO

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 75mm(LF) 75mm(HF)

Continuous Program: 1000W(LF) 160W(HF)

Sensitivity: 99dB(LF) 108dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

12'' / 320 mm

Power Handling Nominal (AES)

500W (LF) 80W (HF)

Continuous Program

1000W(LF) 160W(HF)

Minimum Impedance

5.6 Ω(LF) 6.0 (HF)

Voice Coil Diameter

75mm(LF) 75mm(HF)

Magnet Material

Neodymium Ring

Sensitivity 1W/1m

99dB(LF) 109dB(HF)

Frequency Range

55-18K Hz

Winding Material(LF&HF)

Aluminum

Former Material

Glass Fiber

Diaphragm Material

Composite Film

Recommended Crossover

1.2K Hz
