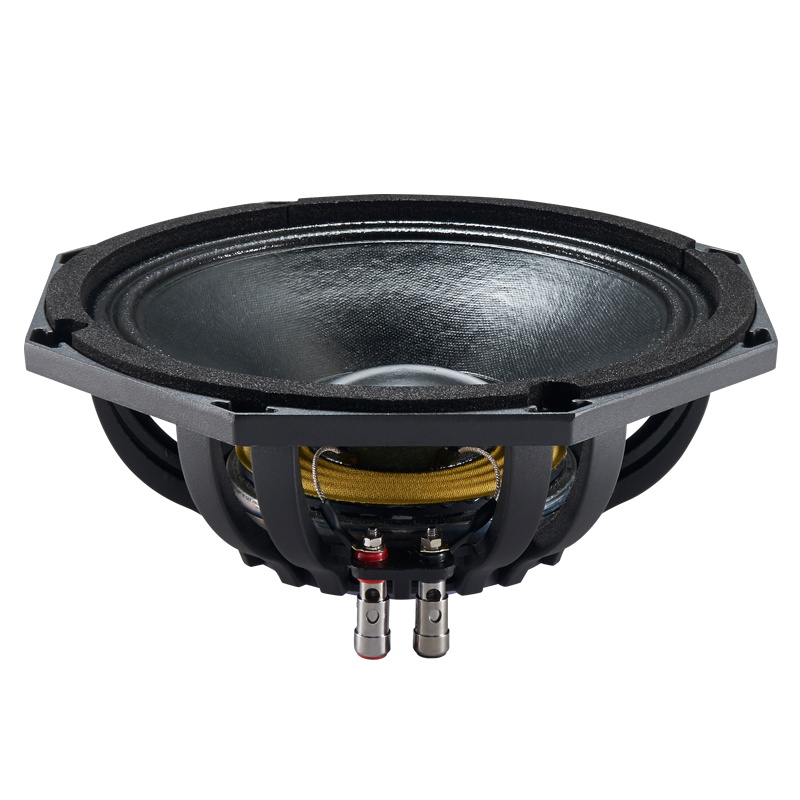

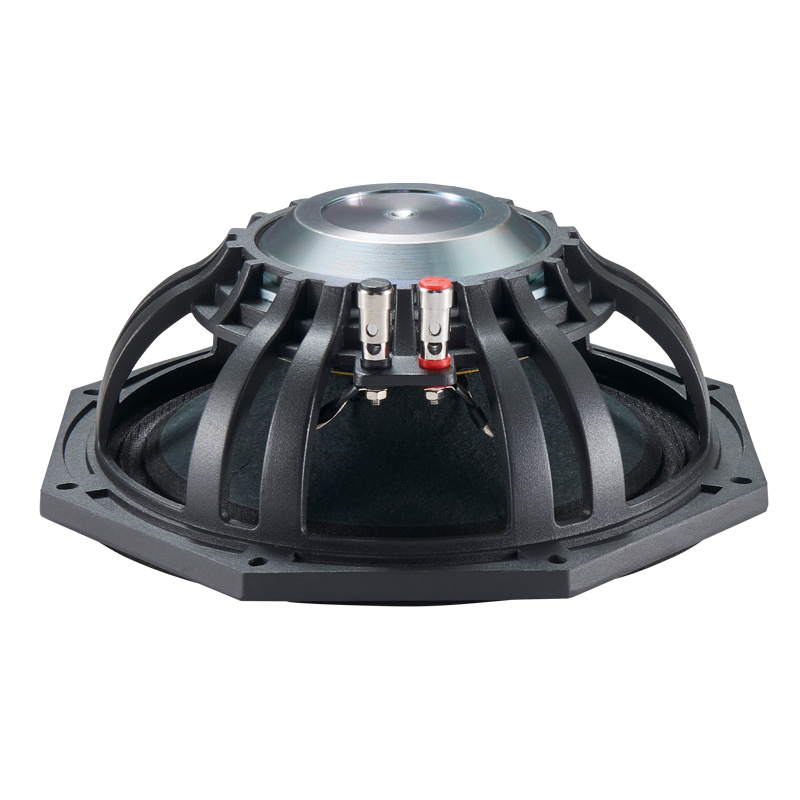

G10MD65

⌀ 10 inch     NEO
MIDRANGE
Nom. Impedance: 16Ω
Voice Coil ⌀: 65mm
Continuous Program: 600W
Sensitivity: 98dB
Availability:
Inquire Add to Basket

Nominal Diameter

10'' / 260 mm

Nominal Impedance

16 Ω

Minimum Impedance

11 Ω

Nominal Power Handling AES

300 W

Continuous Power Handling

600 W

Sensitivity 1W/1m²

98 dB

Frequency Range

70-4K Hz

Voice Coil Diameter

65 mm

Winding Material

Aluminum


F0

70 Hz

Re

10.1 Ω

Qes

0.32

Qms

3.26

Qts

0.3

Vas

33.25 dm³

Sd

415 cm²

Xmax

±2 mm

Xvar

±2 mm

Mms

20.19 g

Bl

16.55 T.m

Le

0.4 mH


Overall Diameter

263 mm

Bolt Circle Diameter

266 mm

Baffle Cutout Diameter

231 mm

Total Depth

95 mm

Flange and Gasket Thickness

8 mm

Net Weight

2.95 kg

Shipping Weight

3.45 kg

Shipping Box

280×280×160 mm
