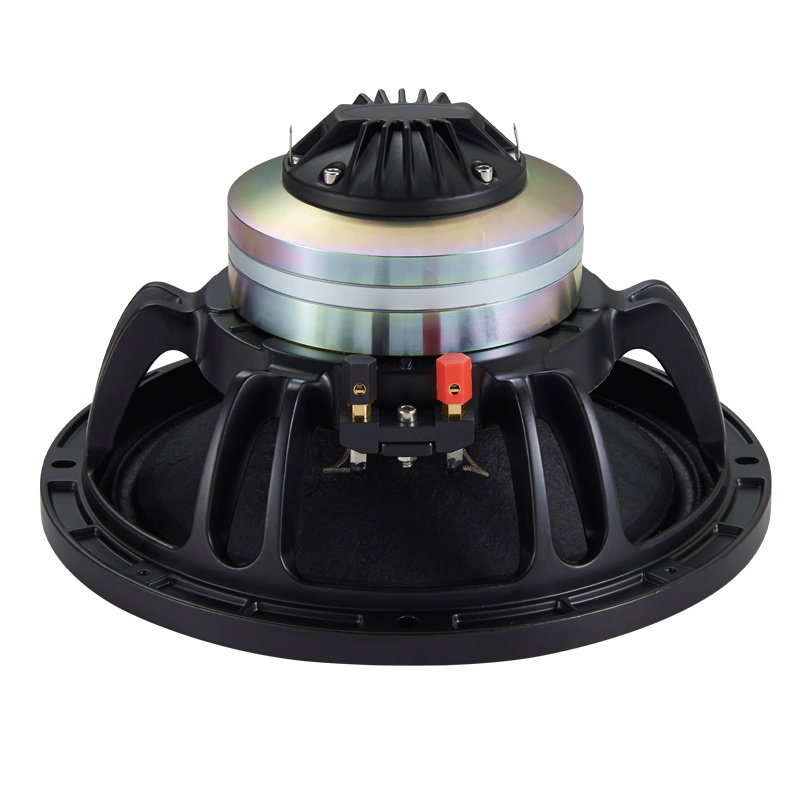

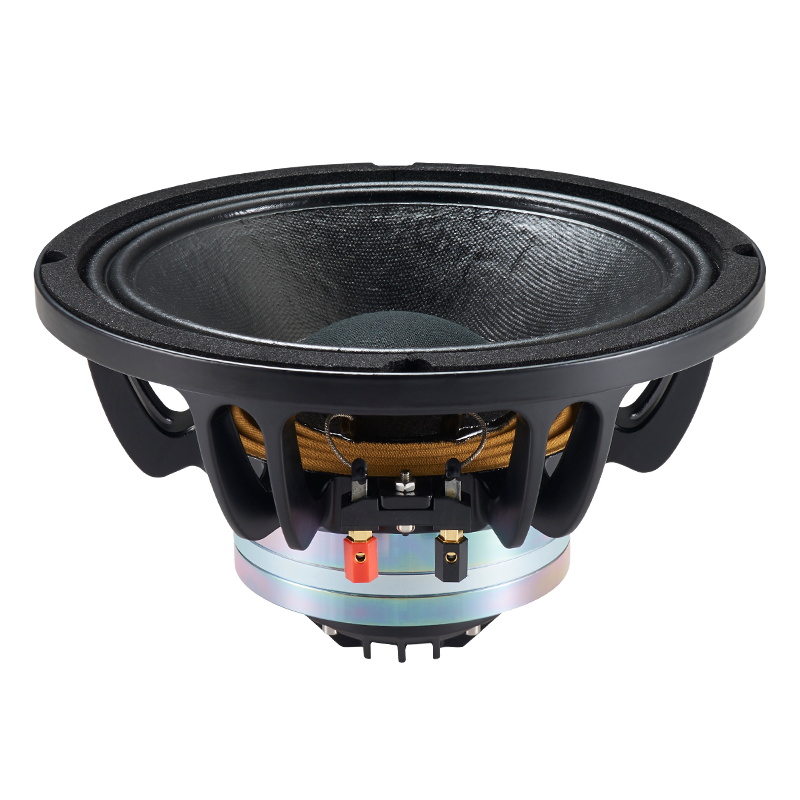

G10CN75

⌀ 10 inch NEO

Nom. Impedance: 8Ω(LF) 8Ω(HF)

Voice Coil ⌀: 75mm(LF) 44mm(HF)

Continuous Program: 800W(LF) 80W(HF)

Sensitivity: 98dB(LF) 105dB(HF)


Availability:



Inquire Add to Basket

Nominal Diameter

10'' / 260 mm

Power Handling Nominal (AES)

400W (LF) 40W (HF)

Continuous Program

800W(LF) 80W(HF)

Minimum Impedance

5.6Ω(LF) 6Ω(HF)

Voice Coil Diameter

75mm(LF) 44mm(HF)

Magnet Material

Neodymium Ring

Sensitivity 1W/1m

98dB(LF) 105dB(HF)

Frequency Range

60-19K Hz

Winding Material(LF&HF)

Aluminum

Former Material(LF)

Kapton

Diaphragm Material(HF)

Polyester

Recommended Crossover

1.5K Hz
